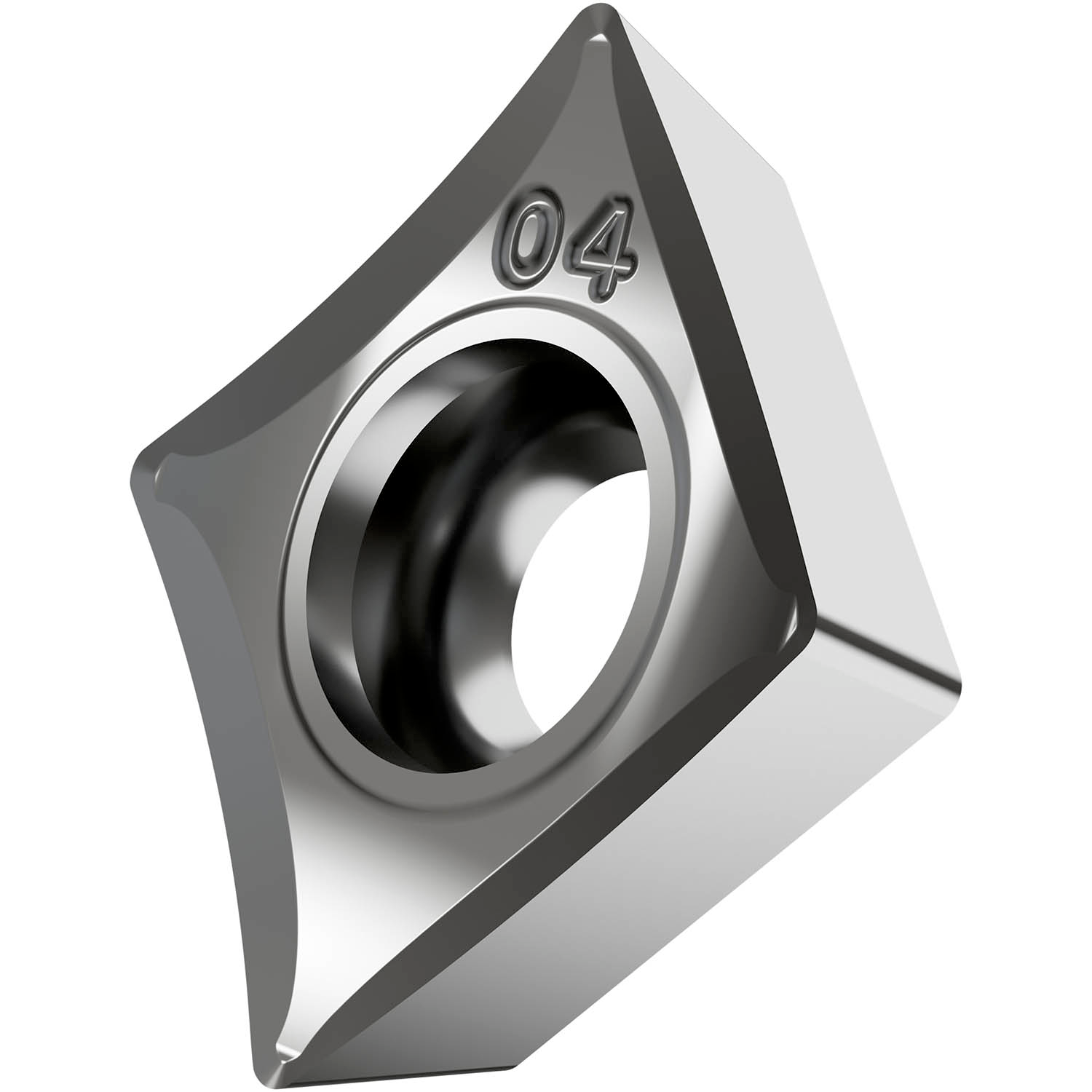

PRAMET CCGT 09T308F-AL:T0315

Description: Value
EAN number: 3603602915054
Product number (SAP): 80023484
Ordering code ANSI: CCGT 32.52F-AL:T0315
Gross weight – grams: 4.38
Inscribed circle diameter – millimeter (IC): 9.525 mm
Fixing hole diameter – millimeter (D1): 4.4 mm
Cutting edge length – millimeter (L): 9.7 mm
Insert thickness – millimeter (S): 3.97 mm
Grade: T0315
Corner radius – millimeter (RE): 0.8 mm
Insert Clearance Code and Angle: C 7°
Insert Design: CCGT
Insert size: 09
Insert Thickness: T3
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): AL
Insert shape code (SC): C – rhombic 80° included angle
Tool Design: CC
Insert Geometry: Positive
ISO: CCGT09T308F-AL:T0315
