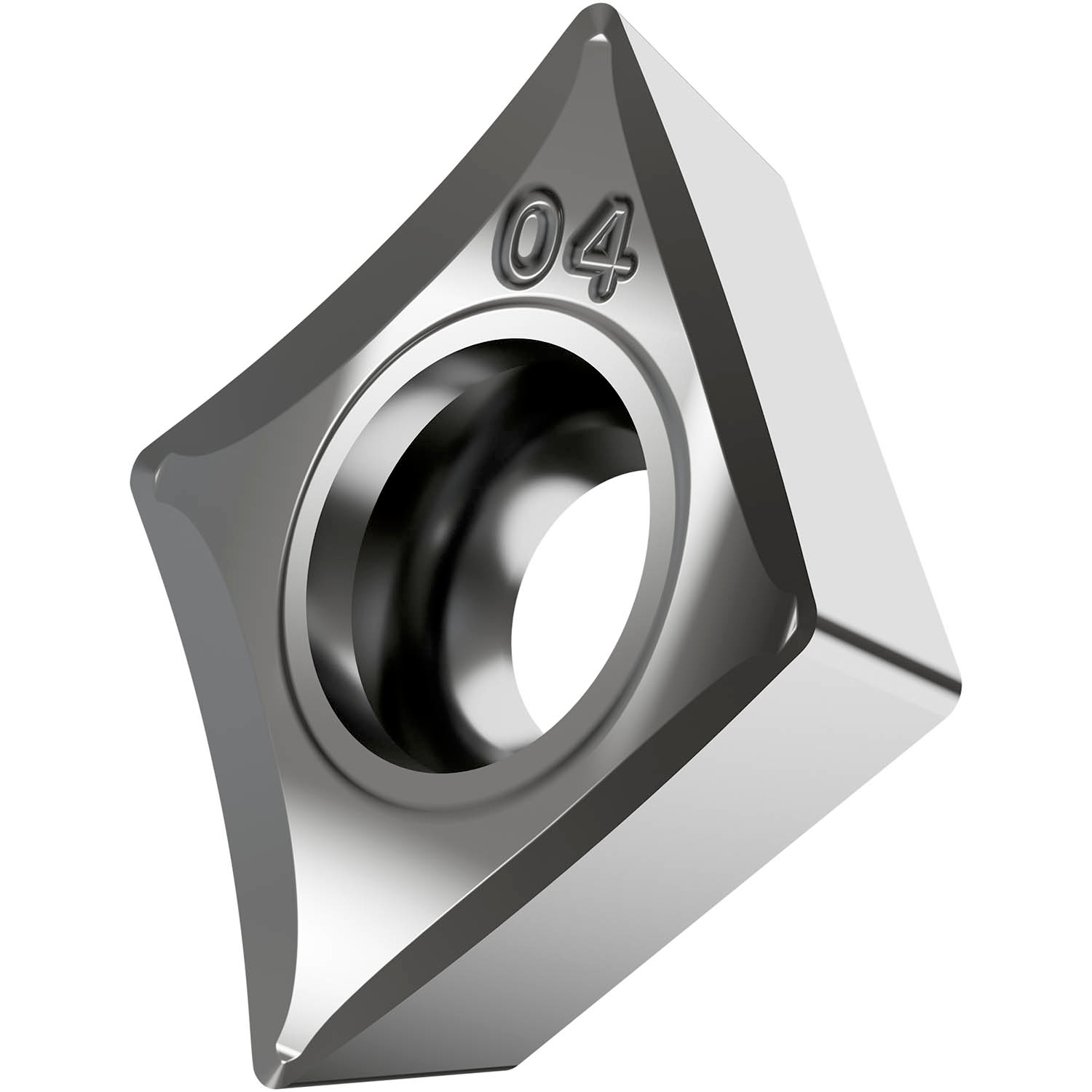

PRAMET CCGT 120404F-AL:HF7

Description: Value
EAN number: 3603602870698
Product number (SAP): 80001662
Ordering code ANSI: CCGT 431F-AL:HF7
Gross weight – grams: 9.691
Inscribed circle diameter – millimeter (IC): 12.7 mm
Fixing hole diameter – millimeter (D1): 5.5 mm
Cutting edge length – millimeter (L): 12.9 mm
Insert thickness – millimeter (S): 4.76 mm
Grade: HF7
Corner radius – millimeter (RE): 0.4 mm
Insert Clearance Code and Angle: C 7°
Insert Design: CCGT
Insert size: 12
Insert Thickness: 04
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): AL
Insert shape code (SC): C – rhombic 80° included angle
Tool Design: CC
Insert Geometry: Positive
ISO: CCGT120404F-AL:HF7
