PRAMET CCMT 060202E-NF2:T8430 Turning inserts positive

Description

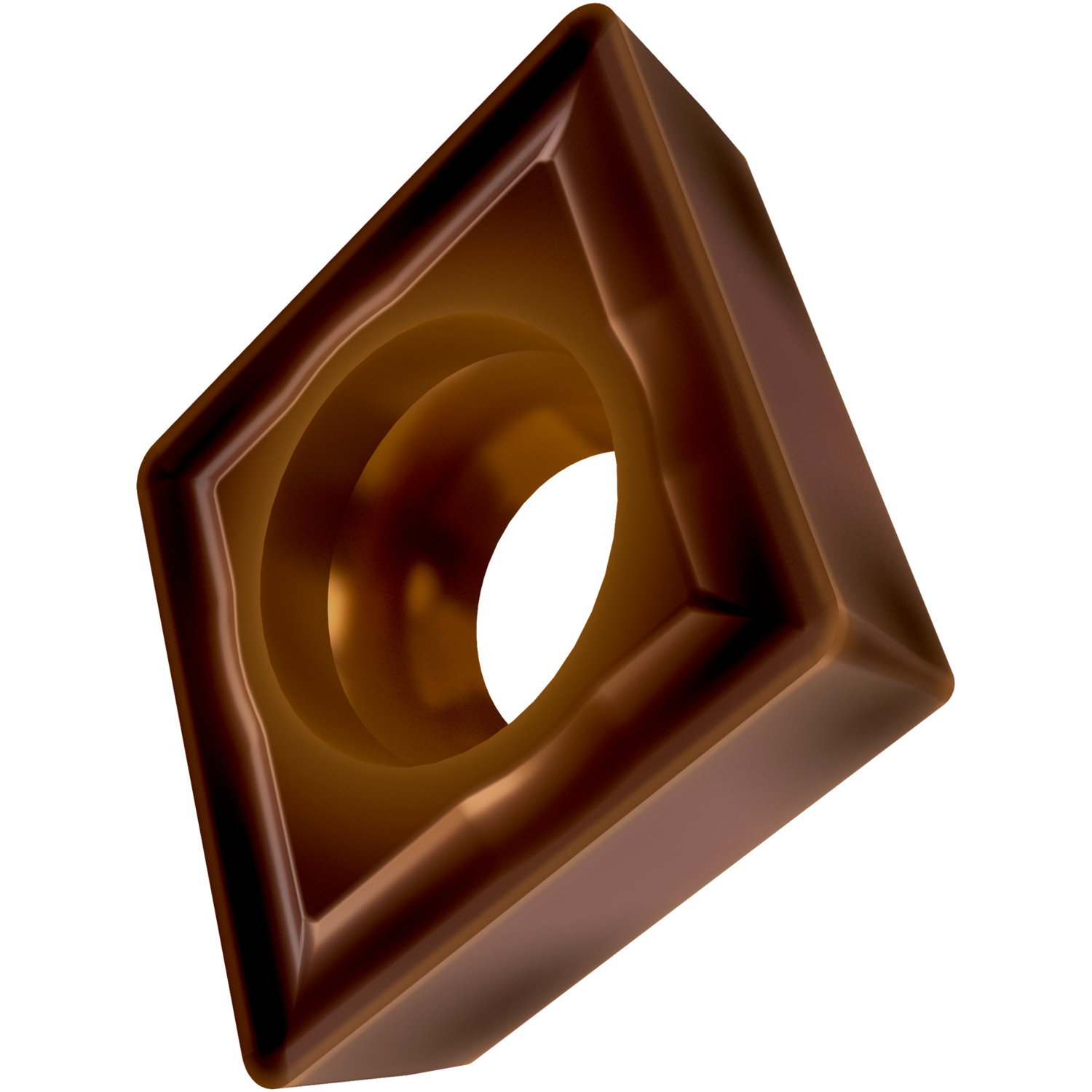

Single-sided positive turning insert, 80° rhomboid with 7° clearance, inscribed circle diameter of 6.35mm, 2.38mm thick, 0.2mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker NF2 with rounded cutting edges, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO range M20 -M35, for fine to medium machining of stainless-steels

Additional information

Weight	0.0163 kg
barcode
Additional Information	Description: Value EAN number: 3603603817975 Product number (SAP): 80033019 Ordering code ANSI: CCMT 21.50.5-NF2:T8430 Gross weight – grams: 0.991 Inscribed circle diameter – millimeter (IC): 6.35 mm Fixing hole diameter – millimeter (D1): 2.8 mm Cutting edge length – millimeter (L): 6.4 mm Insert thickness – millimeter (S): 2.38 mm Grade: T8430 Corner radius – millimeter (RE): 0.2 mm Insert Clearance Code and Angle: C 7° Insert Design: CCMT Insert size: 06 Insert Thickness: 02 Insert Type: T Chipbreaker manufacturer's designation (CBMD): NF2 Insert shape code (SC): C – rhombic 80° included angle Tool Design: CC Insert Geometry: Positive ISO: CCMT060202E-NF2:T8430
