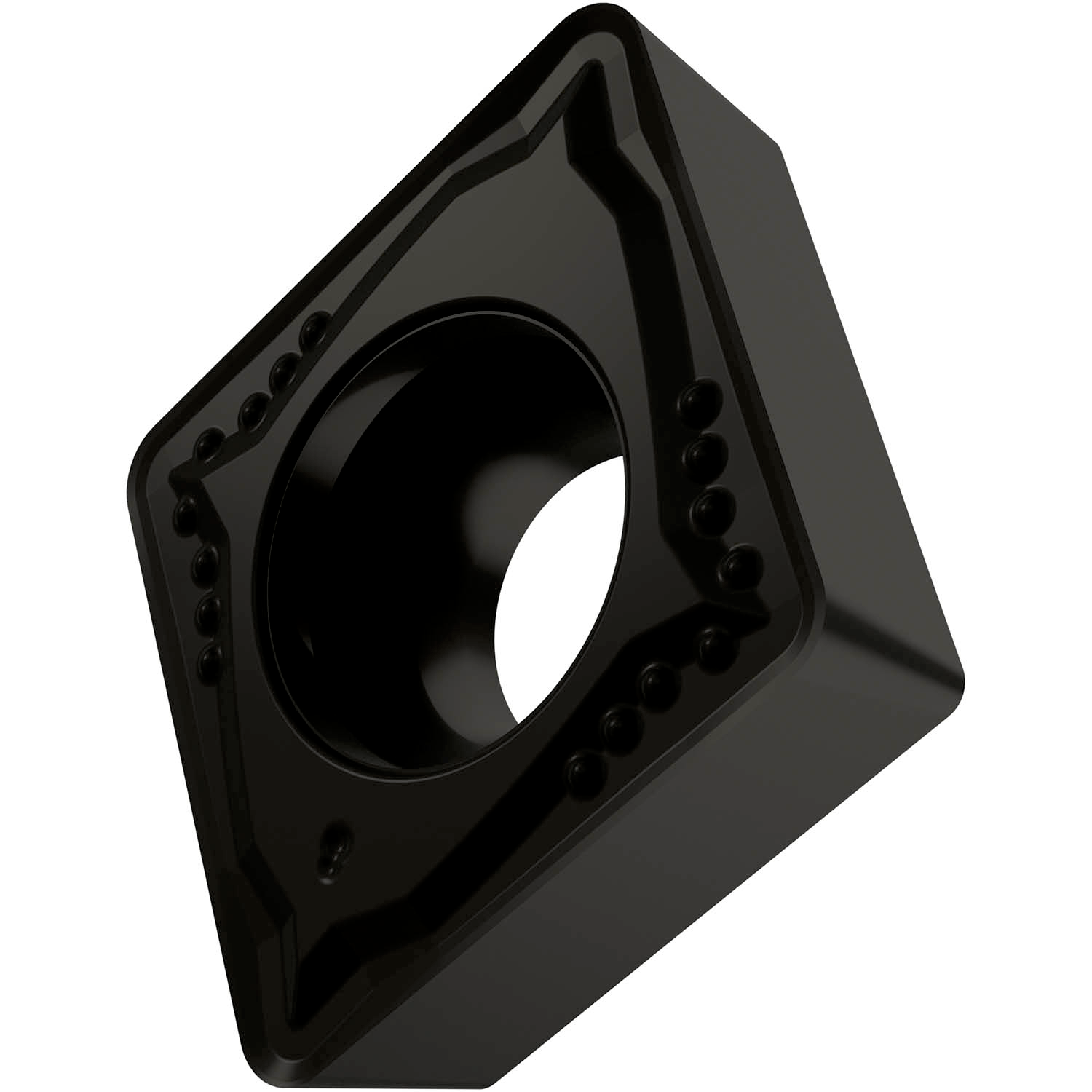

PRAMET CCMT 060204W-FM:T9315 Turning inserts positive

Description: Value
EAN number: 3603603108028
Product number (SAP): 80027017
Ordering code ANSI: CCMT 21.51W-FM:T9315
Gross weight – grams: 0.99
Inscribed circle diameter – millimeter (IC): 6.35 mm
Fixing hole diameter – millimeter (D1): 2.8 mm
Cutting edge length – millimeter (L): 6.4 mm
Insert thickness – millimeter (S): 2.38 mm
Grade: T9315
Corner radius – millimeter (RE): 0.4 mm
Insert Clearance Code and Angle: C 7°
Insert Design: CCMT
Insert size: 06
Insert Thickness: 02
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): W-FM
Insert shape code (SC): C – rhombic 80° included angle
Tool Design: CC
Insert Geometry: Positive
ISO: CCMT060204W-FM:T9315
