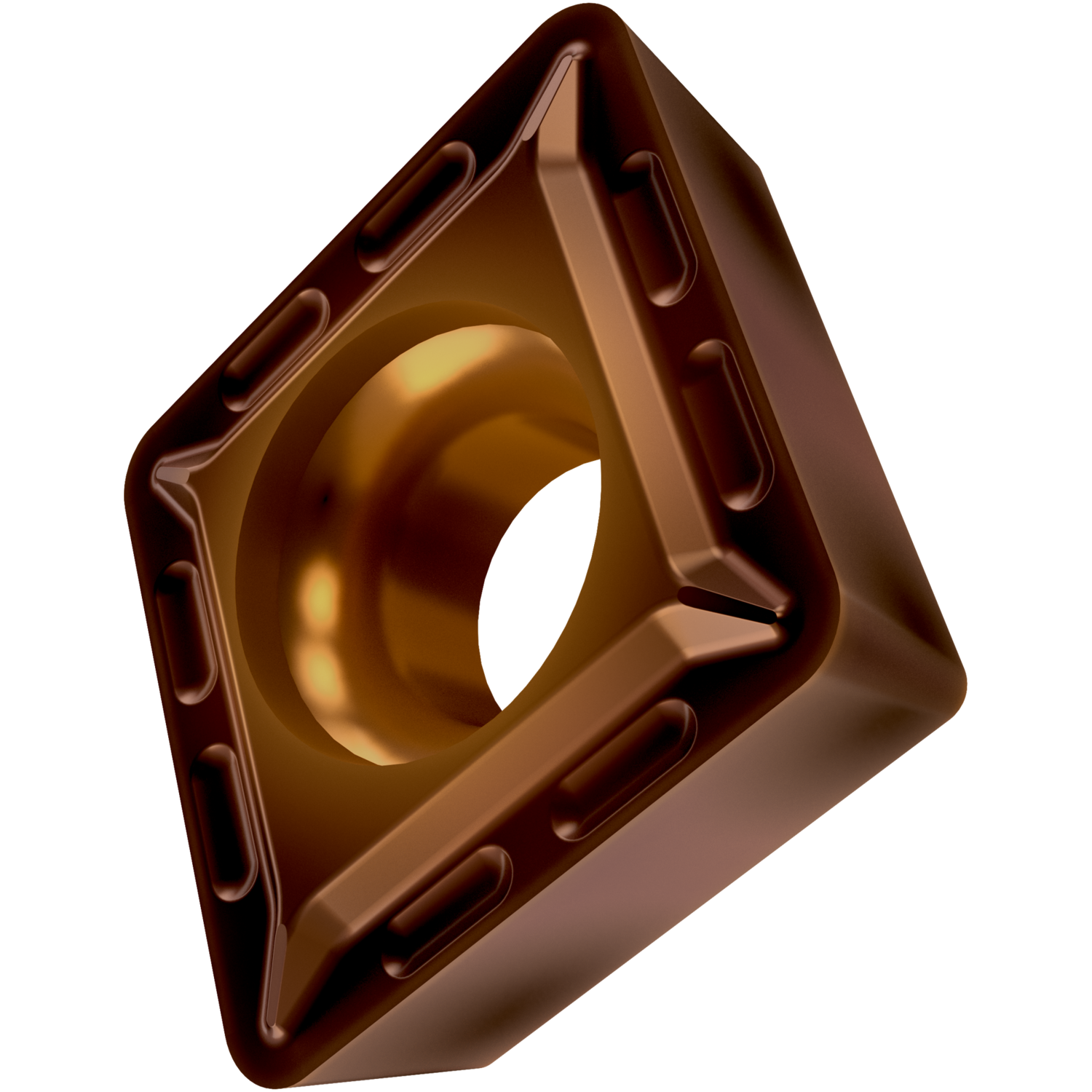

PRAMET CCMT 080302E-FF2:T8430 Turning inserts positive

Description: Value
EAN number: 3603603818019
Product number (SAP): 80033023
Ordering code ANSI: CCMT 2.520.5-FF2:T8430
Gross weight – grams: 2.185
Inscribed circle diameter – millimeter (IC): 7.94 mm
Fixing hole diameter – millimeter (D1): 3.4 mm
Cutting edge length – millimeter (L): 8.1 mm
Insert thickness – millimeter (S): 3.18 mm
Grade: T8430
Corner radius – millimeter (RE): 0.2 mm
Insert Clearance Code and Angle: C 7°
Insert Design: CCMT
Insert size: 08
Insert Thickness: 03
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): FF2
Insert shape code (SC): C – rhombic 80° included angle
Tool Design: CC
Insert Geometry: Positive
ISO: CCMT080302E-FF2:T8430
