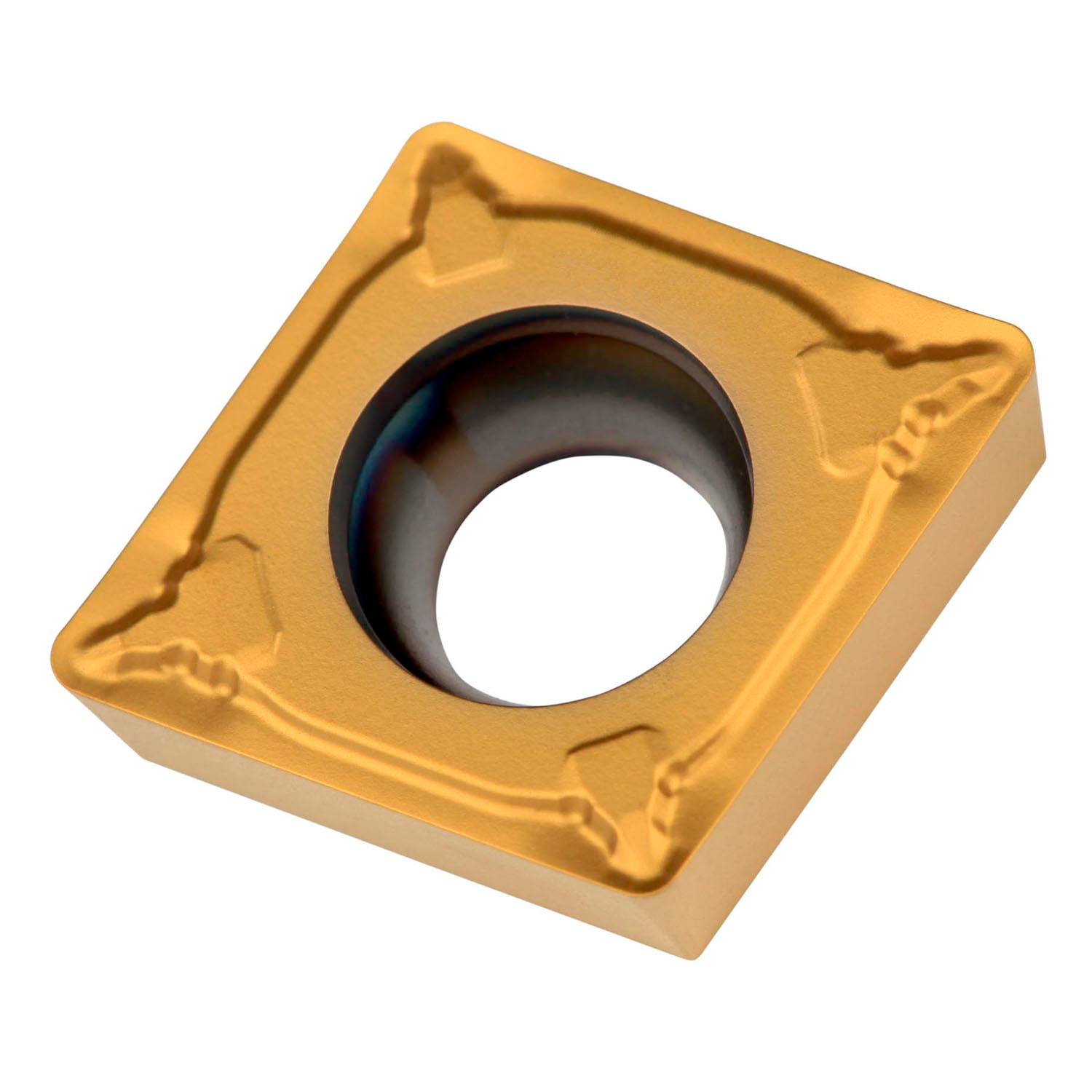

PRAMET CCMT 09T302E-UR:TT310 Turning inserts positive

Description

Single-sided positive turning insert, 80° rhomboid with 7° clearance, inscribed circle diameter of 9.525mm, 3.97mm thick, 0.2mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker UR with rounded cutting edges, in grade TT310, a PVD coated cermet within ISO range P10 -P25, for fine to heavy machining of steels

Additional information

Weight	0.0182 kg
barcode
Additional Information	Description: Value EAN number: 3603602916204 Product number (SAP): 80023625 Ordering code ANSI: CCMT 32.50.5-UR:TT310 Gross weight – grams: 2.79 Inscribed circle diameter – millimeter (IC): 9.525 mm Fixing hole diameter – millimeter (D1): 4.4 mm Cutting edge length – millimeter (L): 9.7 mm Insert thickness – millimeter (S): 3.97 mm Grade: TT310 Corner radius – millimeter (RE): 0.2 mm Insert Clearance Code and Angle: C 7° Insert Design: CCMT Insert size: 09 Insert Thickness: T3 Insert Type: T Chipbreaker manufacturer's designation (CBMD): UR Insert shape code (SC): C – rhombic 80° included angle Tool Design: CC Insert Geometry: Positive ISO: CCMT09T302E-UR:TT310
