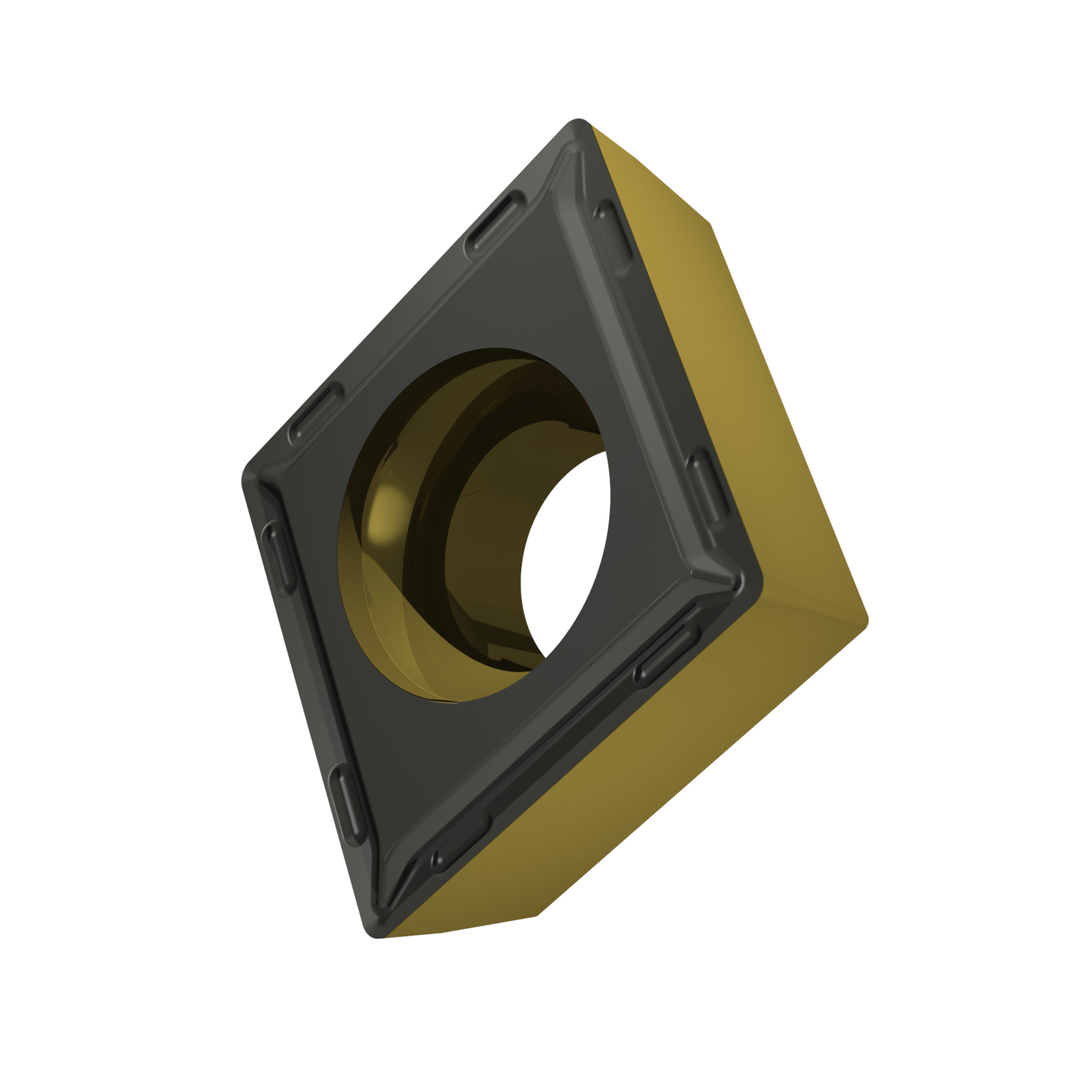

PRAMET CCMT 09T304E-FF2:T9415 Turning inserts positive

Description: Value
EAN number: 3603604106399
Product number (SAP): 80035482
Ordering code ANSI: CCMT 32.51-FF2:T9415
Gross weight – grams: 3.647
Inscribed circle diameter – millimeter (IC): 9.525 mm
Fixing hole diameter – millimeter (D1): 4.4 mm
Cutting edge length – millimeter (L): 9.7 mm
Insert thickness – millimeter (S): 3.97 mm
Grade: T9415
Corner radius – millimeter (RE): 0.4 mm
Insert Clearance Code and Angle: C 7°
Insert Design: CCMT
Insert size: 09
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): FF2
Insert shape code (SC): C – rhombic 80° included angle
Tool Design: CC
Insert Geometry: Positive
ISO: CCMT09T304E-FF2:T9415
