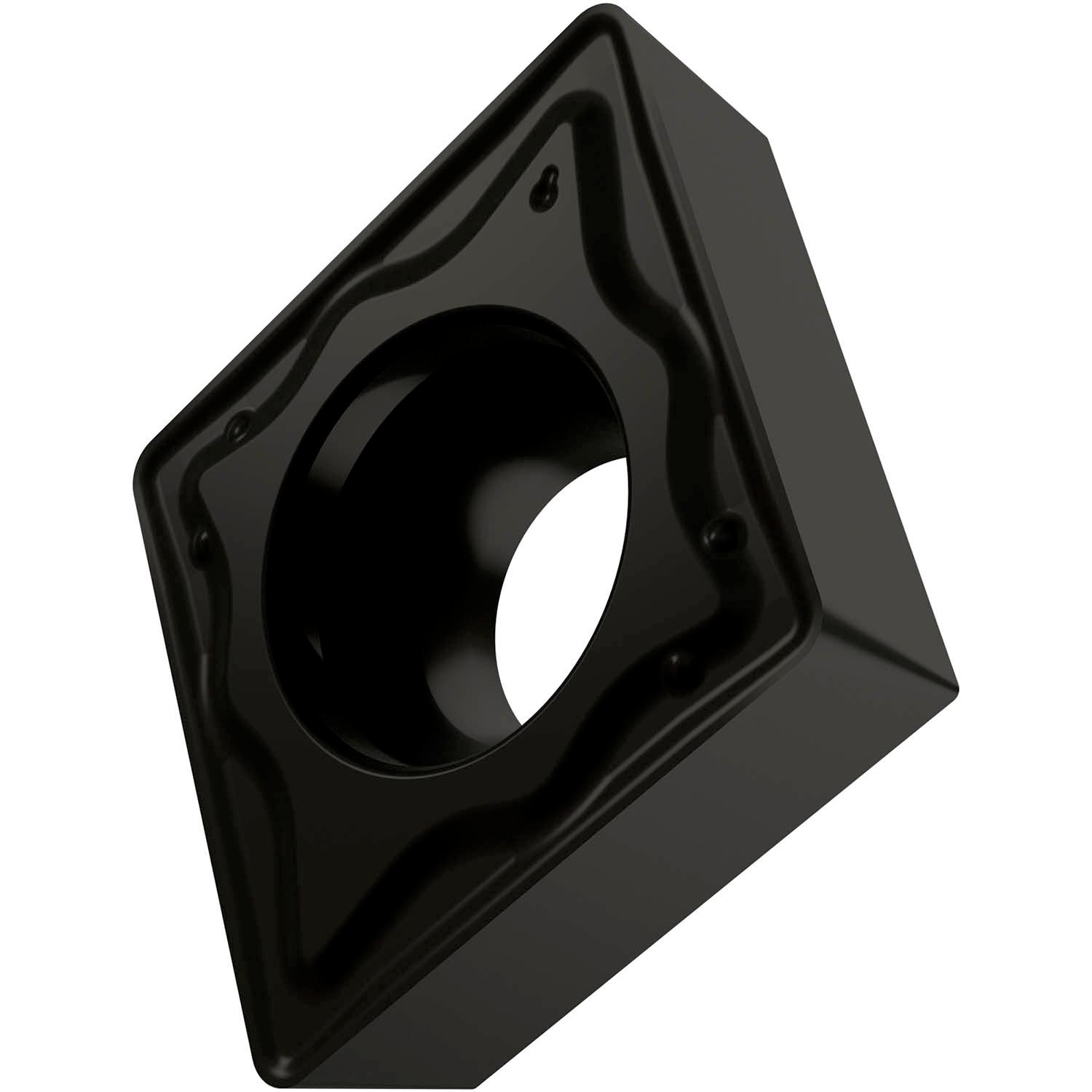

PRAMET CCMT 09T308E-RM:T5305 Turning inserts positive

Description: Value
EAN number: 3603602910820
Product number (SAP): 80022825
Ordering code ANSI: CCMT 32.52-RM:T5305
Gross weight – grams: 3.617
Inscribed circle diameter – millimeter (IC): 9.525 mm
Fixing hole diameter – millimeter (D1): 4.4 mm
Cutting edge length – millimeter (L): 9.7 mm
Insert thickness – millimeter (S): 3.97 mm
Grade: T5305
Corner radius – millimeter (RE): 0.8 mm
Insert Clearance Code and Angle: C 7°
Insert Design: CCMT
Insert size: 09
Insert Thickness: T3
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): RM
Insert shape code (SC): C – rhombic 80° included angle
Tool Design: CC
Insert Geometry: Positive
ISO: CCMT09T308E-RM:T5305
