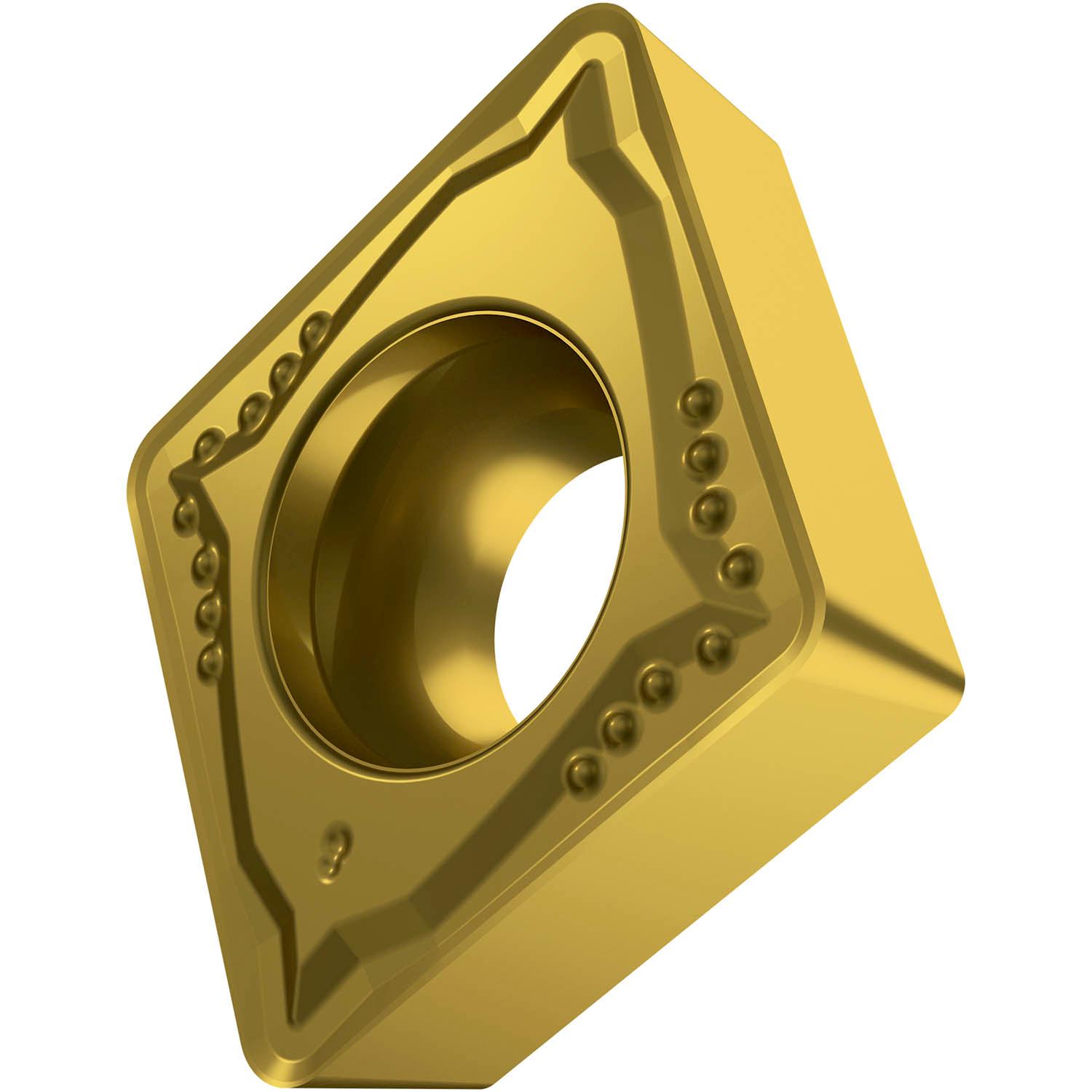

PRAMET CCMT 120404E-FM:T8315 Turning inserts positive

Description: Value
EAN number: 3603602889485
Product number (SAP): 80015403
Ordering code ANSI: CCMT 431-FM:T8315
Gross weight – grams: 8.423
Inscribed circle diameter – millimeter (IC): 12.7 mm
Fixing hole diameter – millimeter (D1): 5.5 mm
Cutting edge length – millimeter (L): 12.9 mm
Insert thickness – millimeter (S): 4.76 mm
Grade: T8315
Corner radius – millimeter (RE): 0.4 mm
Insert Clearance Code and Angle: C 7°
Insert Design: CCMT
Insert size: 12
Insert Thickness: 04
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): FM
Insert shape code (SC): C – rhombic 80° included angle
Tool Design: CC
Insert Geometry: Positive
ISO: CCMT120404E-FM:T8315
