PRAMET CCMT 120408E-RM3:T6310 Turning inserts positive

Product Code: CCMT 120408E-RM3:T6310

$24.82$22.56 Ex. GST

Product Code: CCMT 120408E-RM3:T6310 SKU CCMT 120408E-RM3:T6310 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

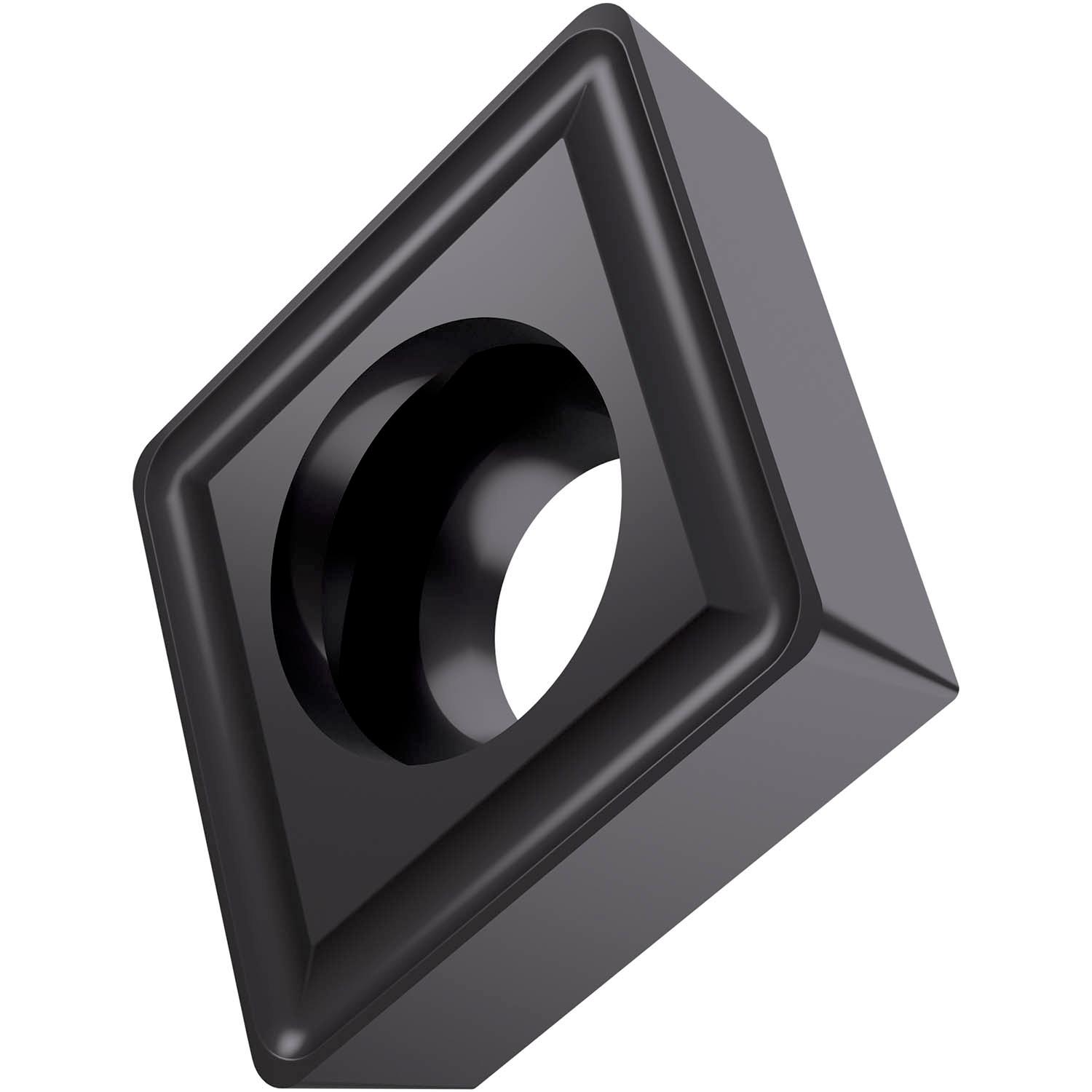

Single-sided positive turning insert, 80° rhomboid with 7° clearance, inscribed circle diameter of 12.7mm, 4.76mm thick, 0.8mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker RM3 with rounded cutting edges, in grade T6310, a PVD coated extra fine grained WC-Co carbide within ISO ranges P01 -P15 and K05 -K20, for fine to heavy machining of steels and cast-irons

Additional information

Weight 0.0241 kg
barcode
Additional Information

Description: Value
EAN number: 3603603221086
Product number (SAP): 80028847
Ordering code ANSI: CCMT 432-RM3:T6310
Gross weight – grams: 8.091
Inscribed circle diameter – millimeter (IC): 12.7 mm
Fixing hole diameter – millimeter (D1): 5.5 mm
Cutting edge length – millimeter (L): 12.9 mm
Insert thickness – millimeter (S): 4.76 mm
Grade: T6310
Corner radius – millimeter (RE): 0.8 mm
Insert Clearance Code and Angle: C 7°
Insert Design: CCMT
Insert size: 12
Insert Thickness: 04
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): RM3
Insert shape code (SC): C – rhombic 80° included angle
Tool Design: CC
Insert Geometry: Positive
ISO: CCMT120408E-RM3:T6310

Brand

PRAMET
