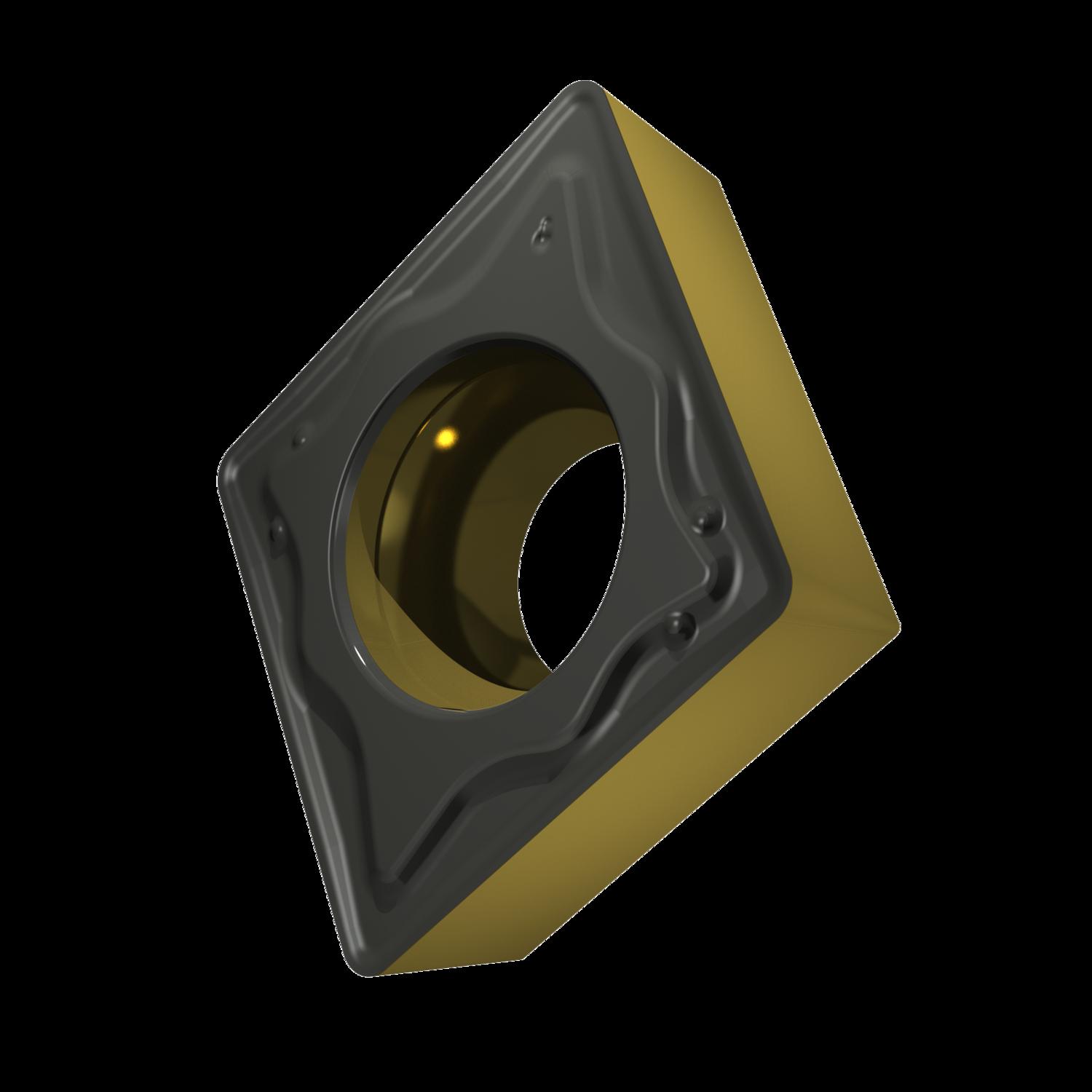

PRAMET CCMT 120408E-RM:T9415 Turning inserts positive

Description: Value
EAN number: 3603604017275
Product number (SAP): 80034868
Ordering code ANSI: CCMT 432-RM:T9415
Gross weight – grams: 7.713
Inscribed circle diameter – millimeter (IC): 12.7 mm
Fixing hole diameter – millimeter (D1): 5.5 mm
Cutting edge length – millimeter (L): 12.9 mm
Insert thickness – millimeter (S): 4.76 mm
Grade: T9415
Corner radius – millimeter (RE): 0.8 mm
Insert Clearance Code and Angle: C 7°
Insert Design: CCMT
Insert size: 12
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): RM
Insert shape code (SC): C – rhombic 80° included angle
Tool Design: CC
Insert Geometry: Positive
ISO: CCMT120408E-RM:T9415
