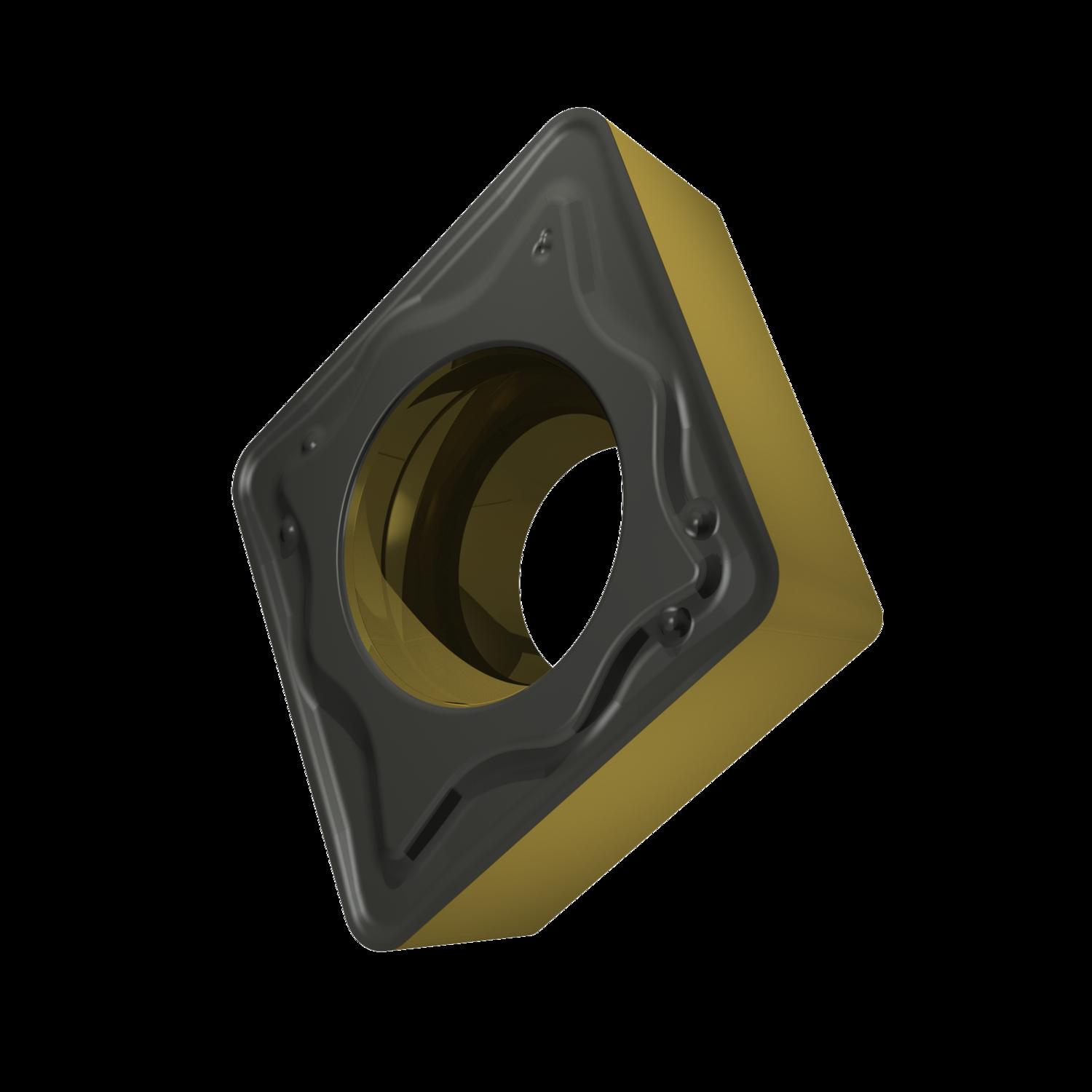

PRAMET CCMT 120412E-RM:T9415 Turning inserts positive

Description

Single-sided positive turning insert, 80° rhomboid with 7° clearance, inscribed circle diameter of 12.7mm, 4.76mm thick, 1.2mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker RM with rounded cutting edges, in grade T9415, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05 -P30, for fine to heavy machining of steels

Additional information

Weight	0.0077 kg
barcode	3603604017282
Additional Information	Description: Value EAN number: 3603604017282 Product number (SAP): 80034869 Ordering code ANSI: CCMT 433-RM:T9415 Gross weight – grams: 7.675 Inscribed circle diameter – millimeter (IC): 12.7 mm Fixing hole diameter – millimeter (D1): 5.5 mm Cutting edge length – millimeter (L): 12.9 mm Insert thickness – millimeter (S): 4.76 mm Grade: T9415 Corner radius – millimeter (RE): 1.2 mm Insert Clearance Code and Angle: C 7° Insert Design: CCMT Insert size: 12 Insert Type: T Chipbreaker manufacturer's designation (CBMD): RM Insert shape code (SC): C – rhombic 80° included angle Tool Design: CC Insert Geometry: Positive ISO: CCMT120412E-RM:T9415
