ABN 37 114 870 012

Home » Shop » CUTTING TOOLS (HSS & Carbide) » Turning » PRAMET CCMW 060204:T8415 Turning inserts positive

PRAMET CCMW 060204:T8415 Turning inserts positive

Product Code: CCMW 060204:T8415

$15.86$14.42 Ex. GST

Product Code: CCMW 060204:T8415 SKU CCMW 060204:T8415 Categories CUTTING TOOLS (HSS & Carbide), Turning

PRAMET CCMW 060204:T8415 Turning inserts positive

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

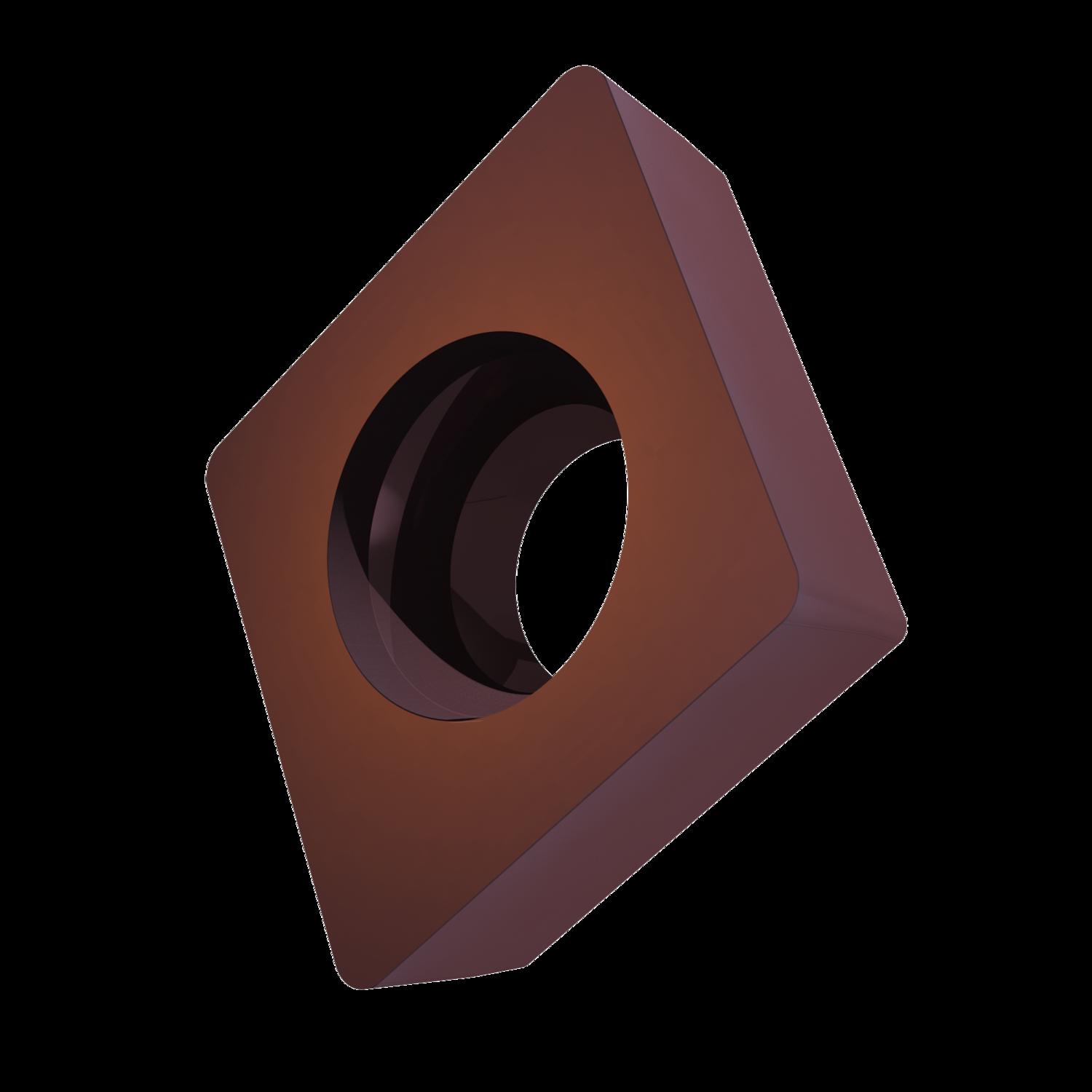

Single-sided positive turning insert, 80° rhomboid with 7° clearance, inscribed circle diameter of 6.35mm, 2.38mm thick, 0.4mm nose radius and indexing accuracy according to ISO-tolerance class-M, in grade T8415

Additional information

Weight	0.0010 kg
barcode	3603604269421
Additional Information	Description: Value EAN number: 3603604269421 Product number (SAP): 80036383 Ordering code ANSI: CCMW 21.51:T8415 Gross weight – grams: 2.14 Inscribed circle diameter – millimeter (IC): 6.35 mm Fixing hole diameter – millimeter (D1): 2.8 mm Cutting edge length – millimeter (L): 6.4 mm Insert thickness – millimeter (S): 2.38 mm Grade: T8415 Corner radius – millimeter (RE): 0.4 mm Insert Clearance Code and Angle: C 7° Insert Design: CCMW Insert size: 06 Insert Type: W Chipbreaker manufacturer's designation (CBMD): No chipbreaker Insert shape code (SC): C – rhombic 80° included angle Tool Design: CC Insert Geometry: Positive ISO: CCMW060204:T8415
