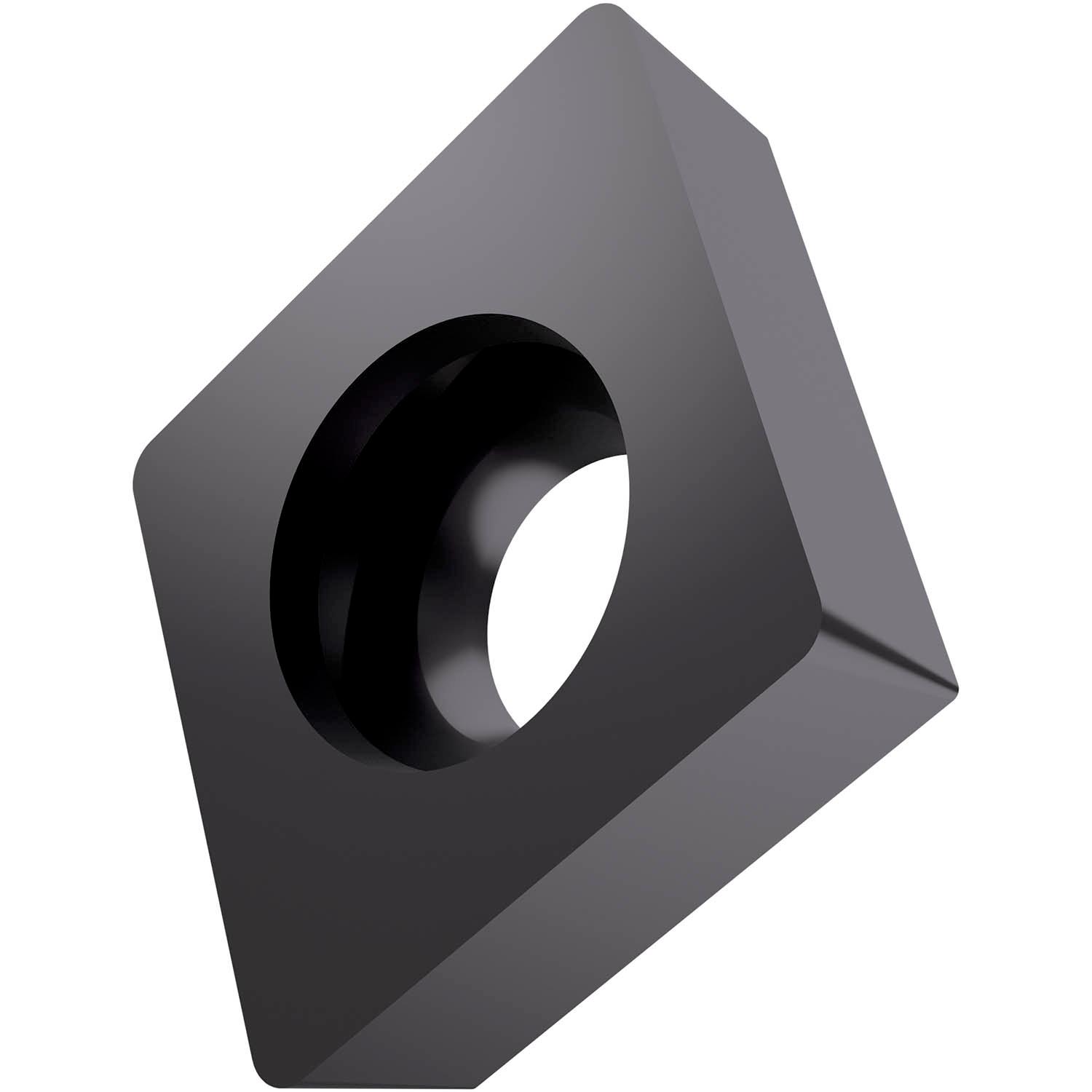

PRAMET CCMW 09T308:T6310 Turning inserts positive

Description: Value
EAN number: 3603603172166
Product number (SAP): 80028455
Ordering code ANSI: CCMW 32.52:T6310
Gross weight – grams: 4
Inscribed circle diameter – millimeter (IC): 9.525 mm
Fixing hole diameter – millimeter (D1): 4.4 mm
Cutting edge length – millimeter (L): 9.7 mm
Insert thickness – millimeter (S): 3.97 mm
Grade: T6310
Corner radius – millimeter (RE): 0.8 mm
Insert Clearance Code and Angle: C 7°
Insert Design: CCMW
Insert size: 09
Insert Thickness: T3
Insert Type: W
Chipbreaker manufacturer's designation (CBMD): No chipbreaker
Insert shape code (SC): C – rhombic 80° included angle
Tool Design: CC
Insert Geometry: Positive
ISO: CCMW09T308:T6310
