PRAMET CCMW 09T308:T8415 Turning inserts positive

Product Code: CCMW 09T308:T8415

$18.24$16.58 Ex. GST

Product Code: CCMW 09T308:T8415 SKU CCMW 09T308:T8415 Categories CUTTING TOOLS (HSS & Carbide), Turning

PRAMET CCMW 09T308:T8415 Turning inserts positive

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

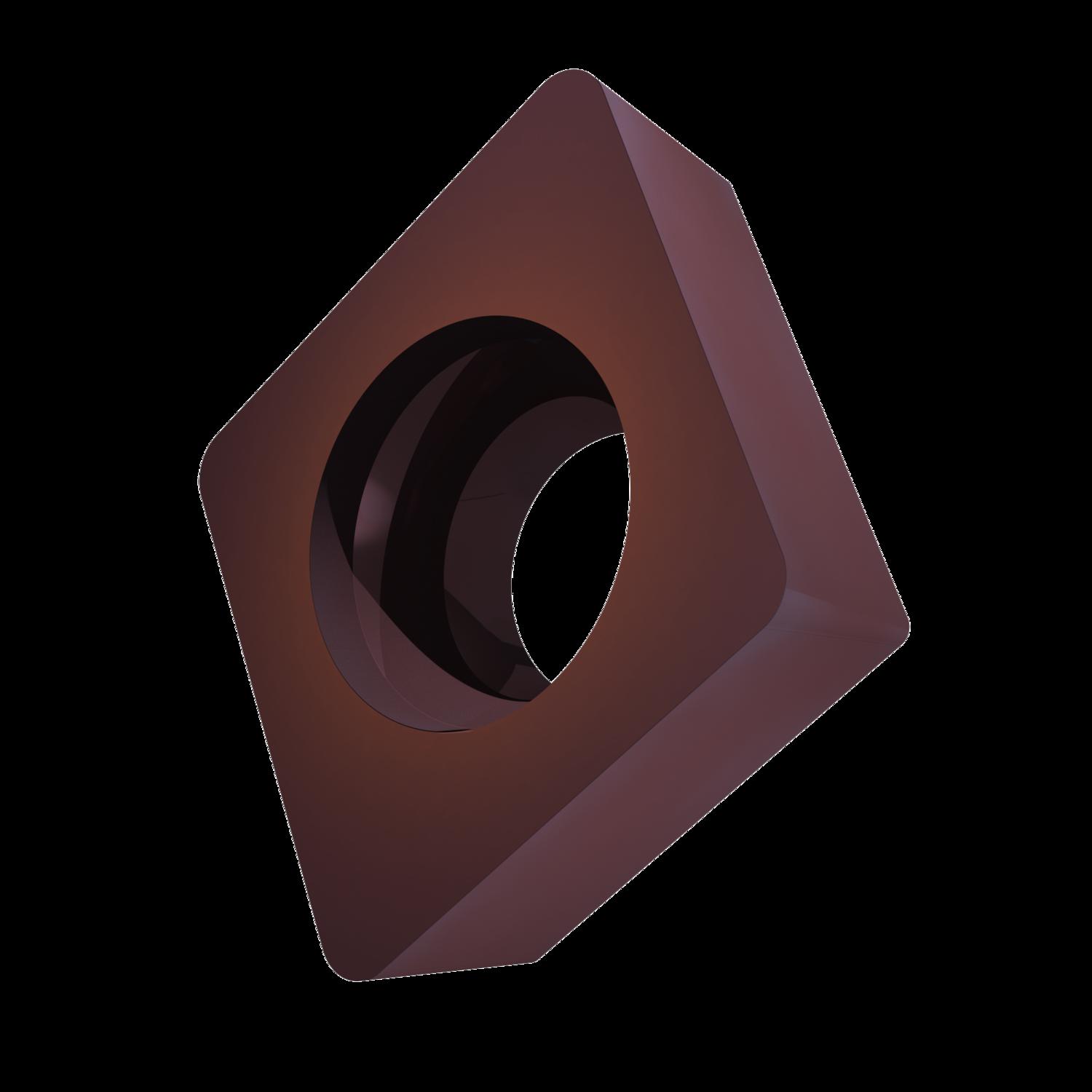

Single-sided positive turning insert, 80° rhomboid with 7° clearance, inscribed circle diameter of 9.525mm, 3.97mm thick, 0.8mm nose radius and indexing accuracy according to ISO-tolerance class-M, in grade T8415

Additional information

Weight	0.0036 kg
barcode	3603604269445
Additional Information	Description: Value EAN number: 3603604269445 Product number (SAP): 80036385 Ordering code ANSI: CCMW 32.52:T8415 Gross weight – grams: 3.6 Inscribed circle diameter – millimeter (IC): 9.525 mm Fixing hole diameter – millimeter (D1): 4.4 mm Cutting edge length – millimeter (L): 9.7 mm Insert thickness – millimeter (S): 3.97 mm Grade: T8415 Corner radius – millimeter (RE): 0.8 mm Insert Clearance Code and Angle: C 7° Insert Design: CCMW Insert size: 09 Insert Type: W Chipbreaker manufacturer's designation (CBMD): No chipbreaker Insert shape code (SC): C – rhombic 80° included angle Tool Design: CC Insert Geometry: Positive ISO: CCMW09T308:T8415
