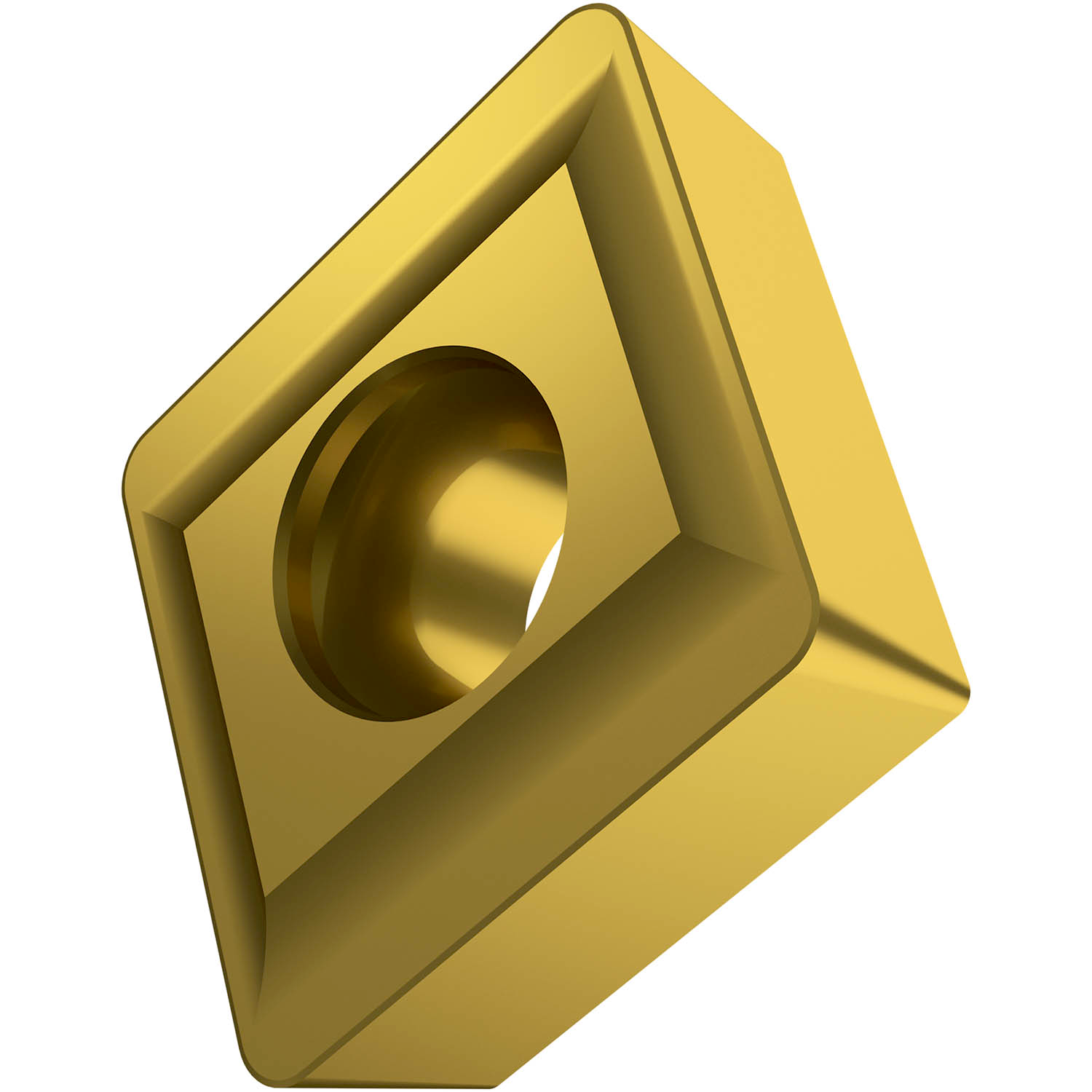

PRAMET CCMX 09T308S-TS1:M8340 Milling – other and drilling inserts clamped by screw

Product Code: CCMX 09T308S-TS1:M8340

$29.35$26.68 Ex. GST

Product Code: CCMX 09T308S-TS1:M8340 SKU CCMX 09T308S-TS1:M8340 Categories , ,
PRAMET CCMX 09T308S-TS1:M8340 Milling - other and drilling inserts clamped by screw

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Single-sided milling insert CCMX 09T3, 80° rhomboid for a T-slot milling cutter of 41mm, with 0.8mm corner radius, an indexing accuracy according to ISO-tolerance class-M and TS1 geometry with rounded cutting edges and facet, M8340 PVD coated fine grained WC-Co carbide within ISO-grade range P25 -P50 for machining of steel with T-slot mill F-SCC

Additional information

Weight 0.0285 kg
barcode
Additional Information

Description: Value
EAN number: 3603602993571
Product number (SAP): 80024934
Ordering code ANSI: CCMX 09T308S-TS1:M8340
Gross weight – grams: 4.192
Inscribed circle diameter – millimeter (IC): 9.525 mm
Fixing hole diameter – millimeter (D1): 3.5 mm
Cutting edge length – millimeter (L): 9.7 mm
Insert thickness – millimeter (S): 3.97 mm
Grade: M8340
Corner radius – millimeter (RE): 0.8 mm
Insert size: 09
Insert Type: X
ISO: CCMX09T308S-TS1:M8340

Brand

PRAMET
