PRAMET CKJNL 2020 K 16 Turning holders external

Product Code: CKJNL 2020 K 16

$251.53$228.66 Ex. GST

Product Code: CKJNL 2020 K 16 SKU CKJNL 2020 K 16 Categories , ,
PRAMET CKJNL 2020 K 16 Turning holders external

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

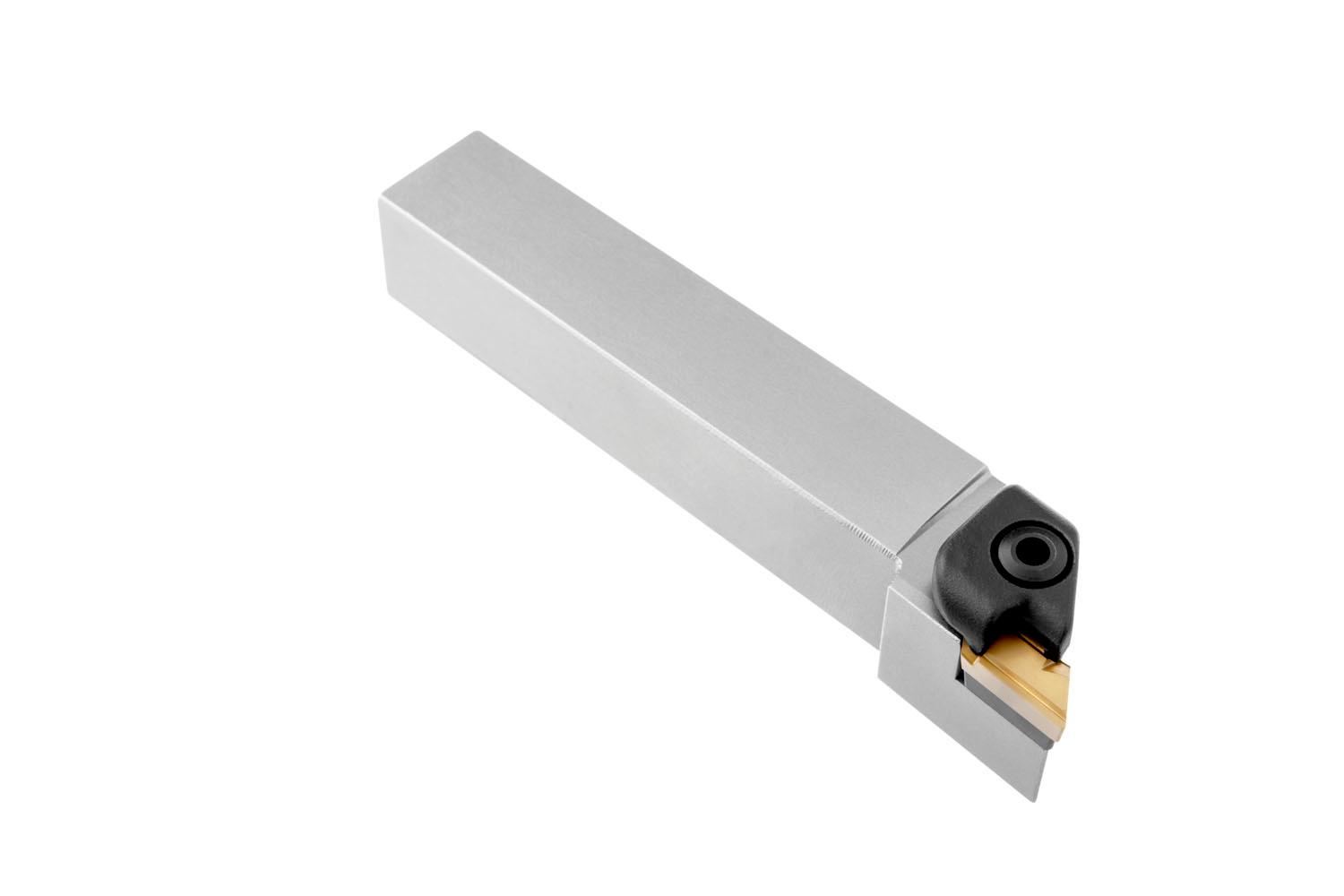

Top clamp turning tool for holding a 55° parallelogram, negative insert with an inscribed circle diameter of 9.525mm, 4.76mm thick (ISO designation KN.X 1604…L ), left hand 93° side cutting with off-set shank, 20mm tool height x 20mm width x 125mm long for chamfering, taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder

Additional information

Weight 0.2442 kg
barcode
Additional Information

Description: Value
EAN number: 3603602924919
Product number (SAP): 84001739
Ordering code ANSI: CKJNL 2020 K 16
Gross weight – grams: 423.8
Shank height – millimeter (H): 20 mm
Shank width – millimeter (B): 20 mm
Functional height – millimeter (HF): 20 mm
Functional width – millimeter (WF): 30 mm
Functional length – millimeter (LF): 125 mm
Head length – millimeter (LH): 34 mm
Inclination angle (LAMS): 1
Orthogonal rake angle (GAMO): -5
Net weight – grams: 423.8
Insert size: 16
ISO: CKJNL2020K16

Brand

PRAMET
