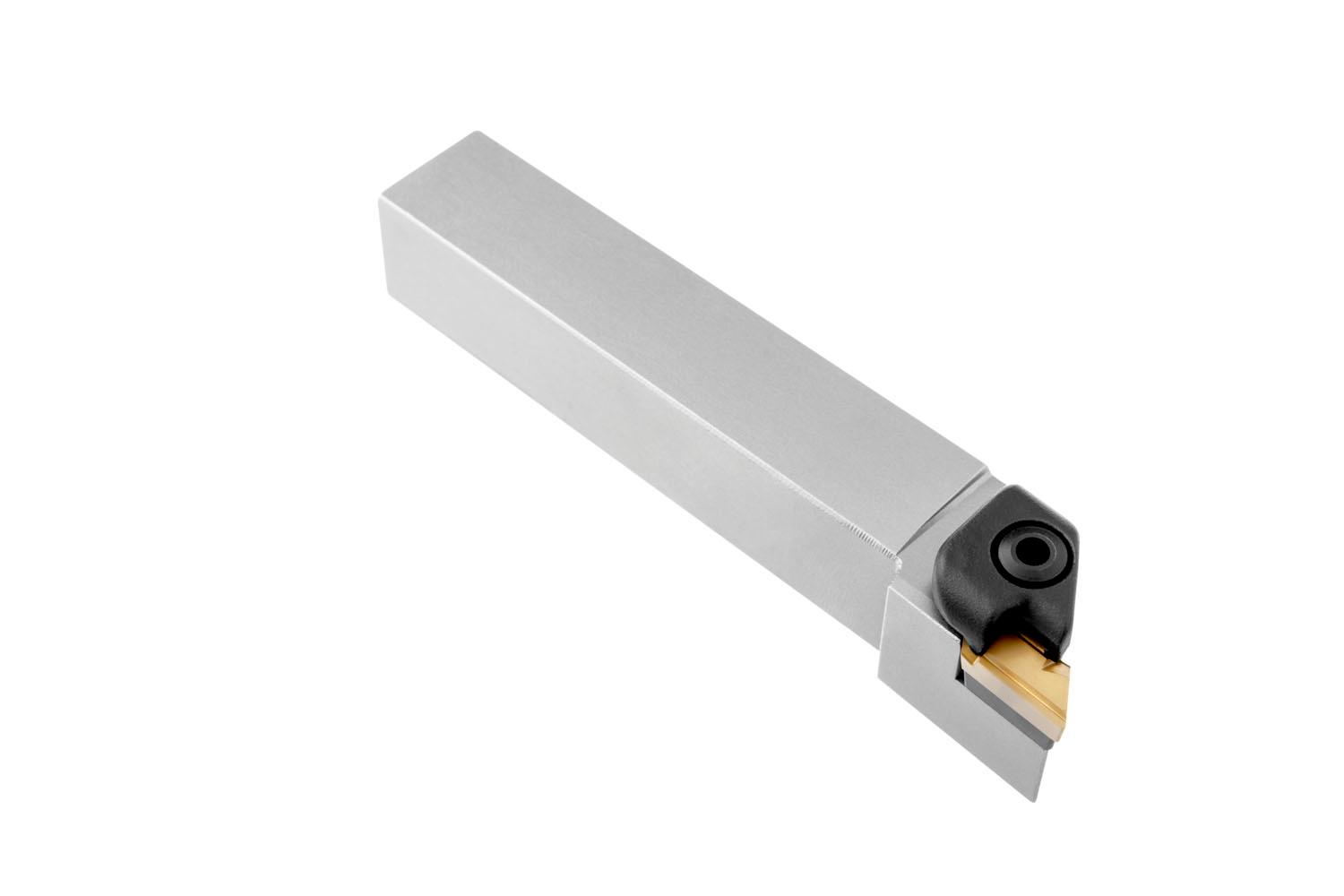

PRAMET CKJNL 3225 P 16 Turning holders external

Product Code: CKJNL 3225 P 16

$282.12$256.47 Ex. GST

Product Code: CKJNL 3225 P 16 SKU CKJNL 3225 P 16 Categories , ,
PRAMET CKJNL 3225 P 16 Turning holders external

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Top clamp turning tool for holding a 55° parallelogram, negative insert with an inscribed circle diameter of 9.525mm, 4.76mm thick (ISO designation KN.X 1604…L ), left hand 93° side cutting with off-set shank, 32mm tool height x 25mm width x 170mm long for chamfering, taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder

Additional information

Weight 0.2739 kg
barcode
Additional Information

Description: Value
EAN number: 3603602926258
Product number (SAP): 84001981
Ordering code ANSI: CKJNL 3225 P 16
Gross weight – grams: 1057
Shank height – millimeter (H): 32 mm
Shank width – millimeter (B): 25 mm
Functional height – millimeter (HF): 32 mm
Functional width – millimeter (WF): 32 mm
Functional length – millimeter (LF): 170 mm
Head length – millimeter (LH): 34 mm
Inclination angle (LAMS): 1
Orthogonal rake angle (GAMO): -5
Net weight – grams: 1057
Insert size: 16
ISO: CKJNL3225P16

Brand

PRAMET
