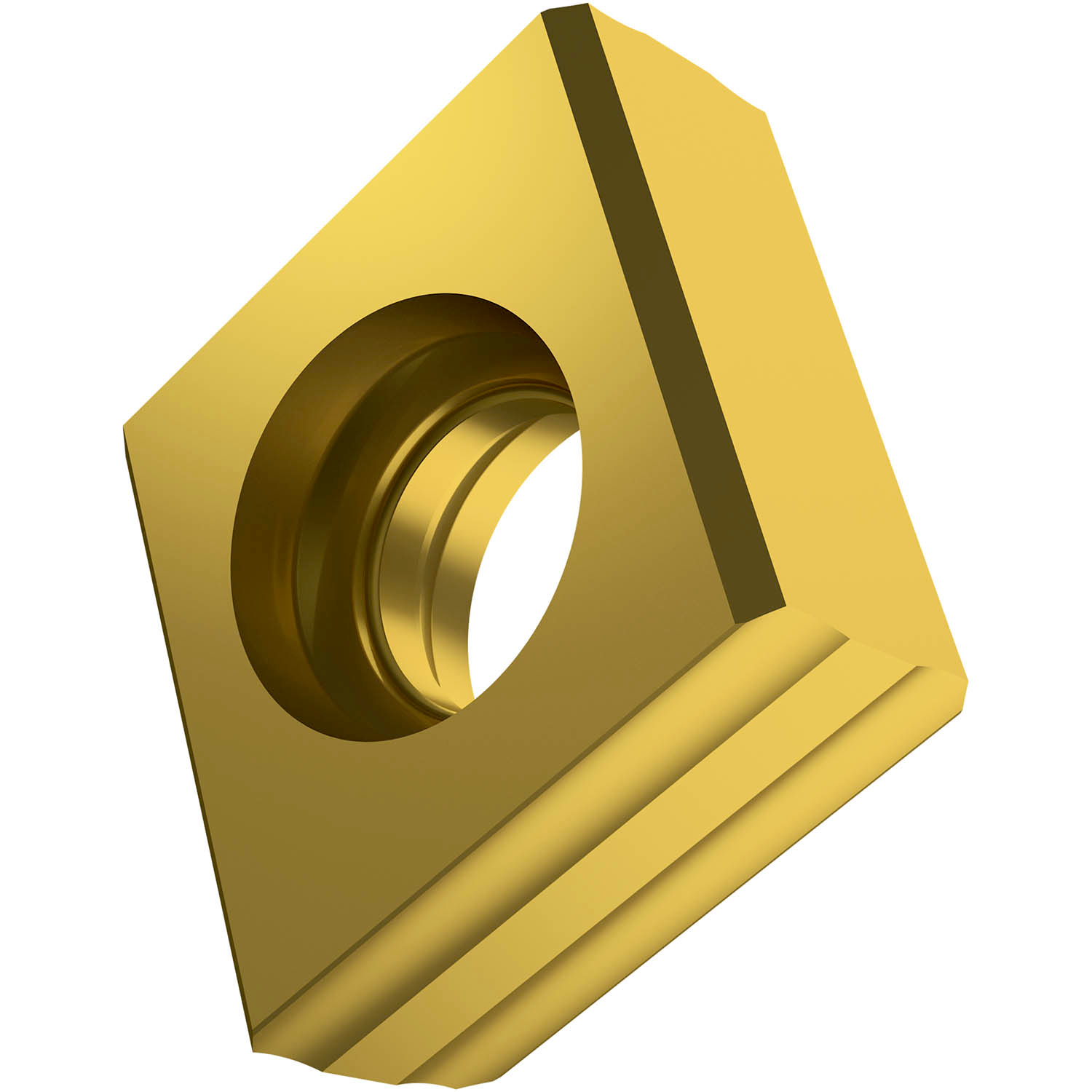

PRAMET CNHQ 1005AZTN:M8340 Milling – other and drilling inserts clamped by screw

Description: Value
EAN number: 3603602993588
Product number (SAP): 80024935
Ordering code ANSI: CNHQ 1005AZTN:M8340
Gross weight – grams: 5.689
Corner chamfer length – millimeter (BCH): 0.5 mm
Inscribed circle diameter – millimeter (IC): 10 mm
Fixing hole diameter – millimeter (D1): 4.7 mm
Cutting edge length – millimeter (L): 10 mm
Insert width – millimeter (W1): 5.4 mm
Grade: M8340
Insert Clearance Code and Angle: N 0°
Insert size: 10
Insert Type: Q
Insert shape code (SC): C – rhombic 80° included angle
ISO: CNHQ1005AZTN:M8340
