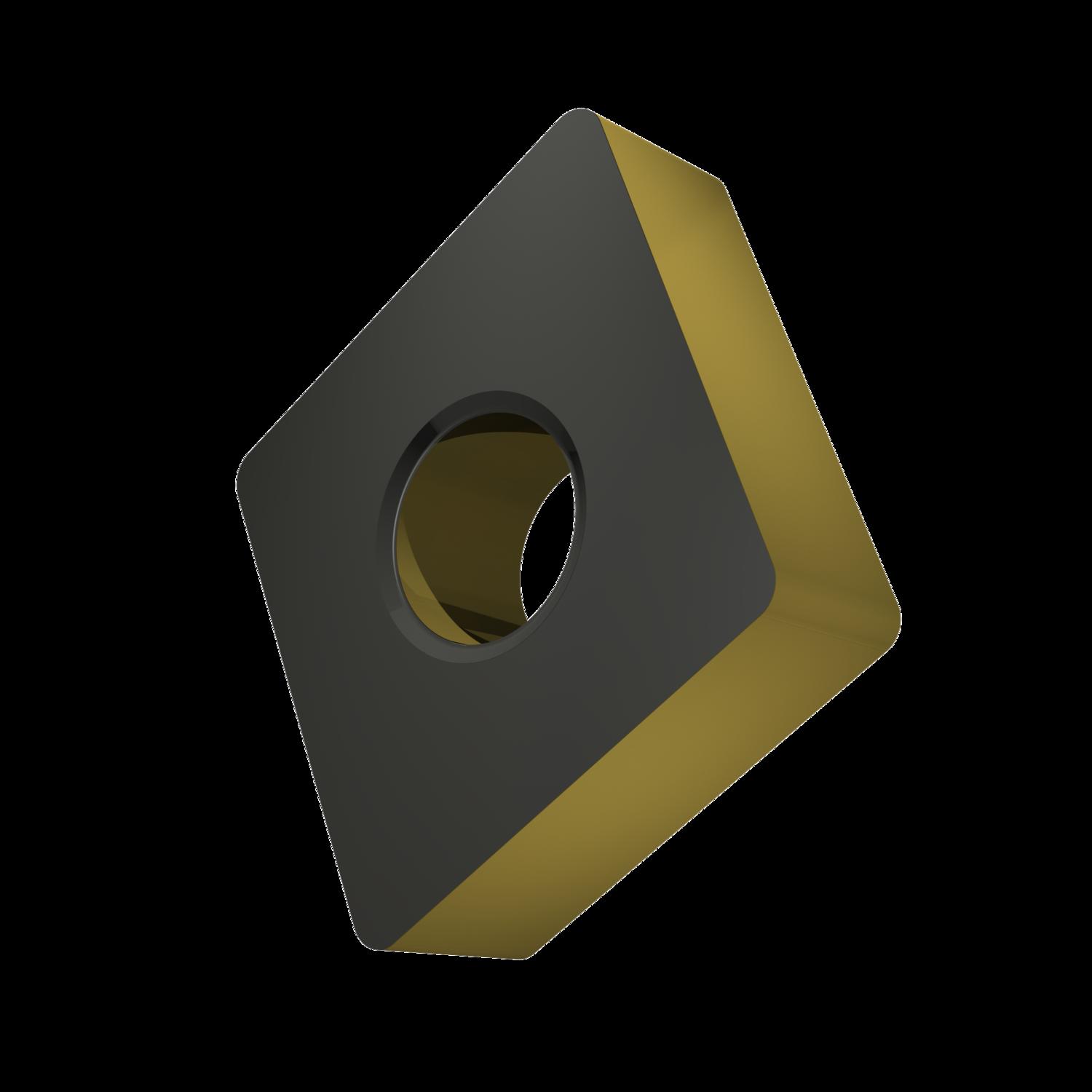

PRAMET CNMA 120408:T5010 Focus Products

Description: Value
EAN number: 3603604165242
Product number (SAP): 80035911
Ordering code ANSI: CNMA 432 :T5010
Gross weight – grams: 10.067
Inscribed circle diameter – millimeter (IC): 12.7 mm
Fixing hole diameter – millimeter (D1): 5.16 mm
Cutting edge length – millimeter (L): 12.9 mm
Insert thickness – millimeter (S): 4.76 mm
Grade: T5010
Corner radius – millimeter (RE): 0.8 mm
Insert Clearance Code and Angle: N 0°
Insert Design: CNMA
Insert size: 12
Insert Thickness: 04
Insert Type: A
Chipbreaker manufacturer's designation (CBMD): No chipbreaker
Insert shape code (SC): C – rhombic 80° included angle
Tool Design: CN
Insert Geometry: Negative
ISO: CNMA120408:T5010
