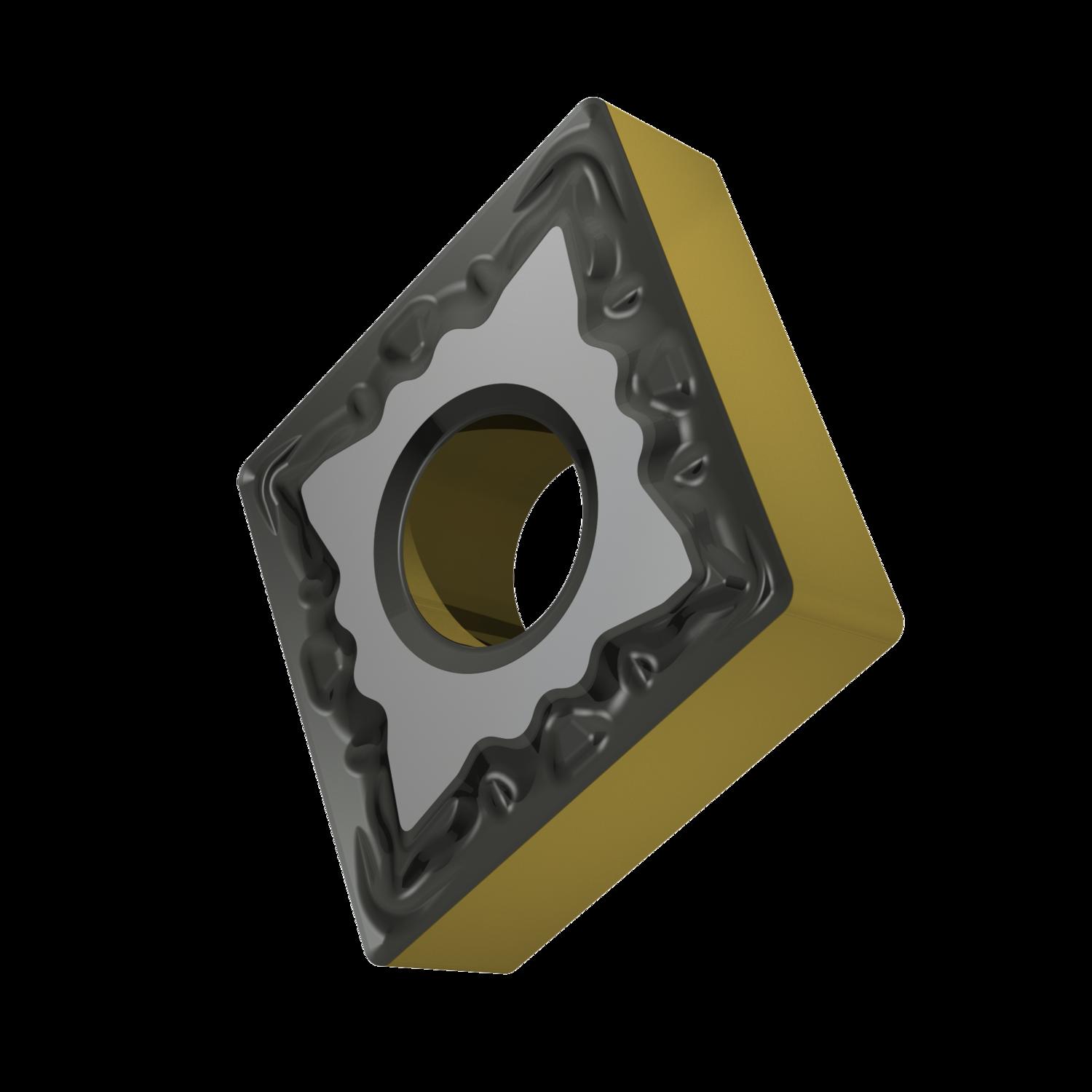

PRAMET CNMG 090304E-FM:T9415 Turning inserts negative

Description: Value
EAN number: 3603604014199
Product number (SAP): 80034760
Ordering code ANSI: CNMG 321-FM:T9415
Gross weight – grams: 3.442
Inscribed circle diameter – millimeter (IC): 9.525 mm
Fixing hole diameter – millimeter (D1): 3.81 mm
Cutting edge length – millimeter (L): 9.7 mm
Insert thickness – millimeter (S): 3.18 mm
Grade: T9415
Corner radius – millimeter (RE): 0.4 mm
Insert Clearance Code and Angle: N 0°
Insert Design: CNMG
Insert size: 09
Insert Type: G
Chipbreaker manufacturer's designation (CBMD): FM
Insert shape code (SC): C – rhombic 80° included angle
Tool Design: CN
Insert Geometry: Negative
ISO: CNMG090304E-FM:T9415
