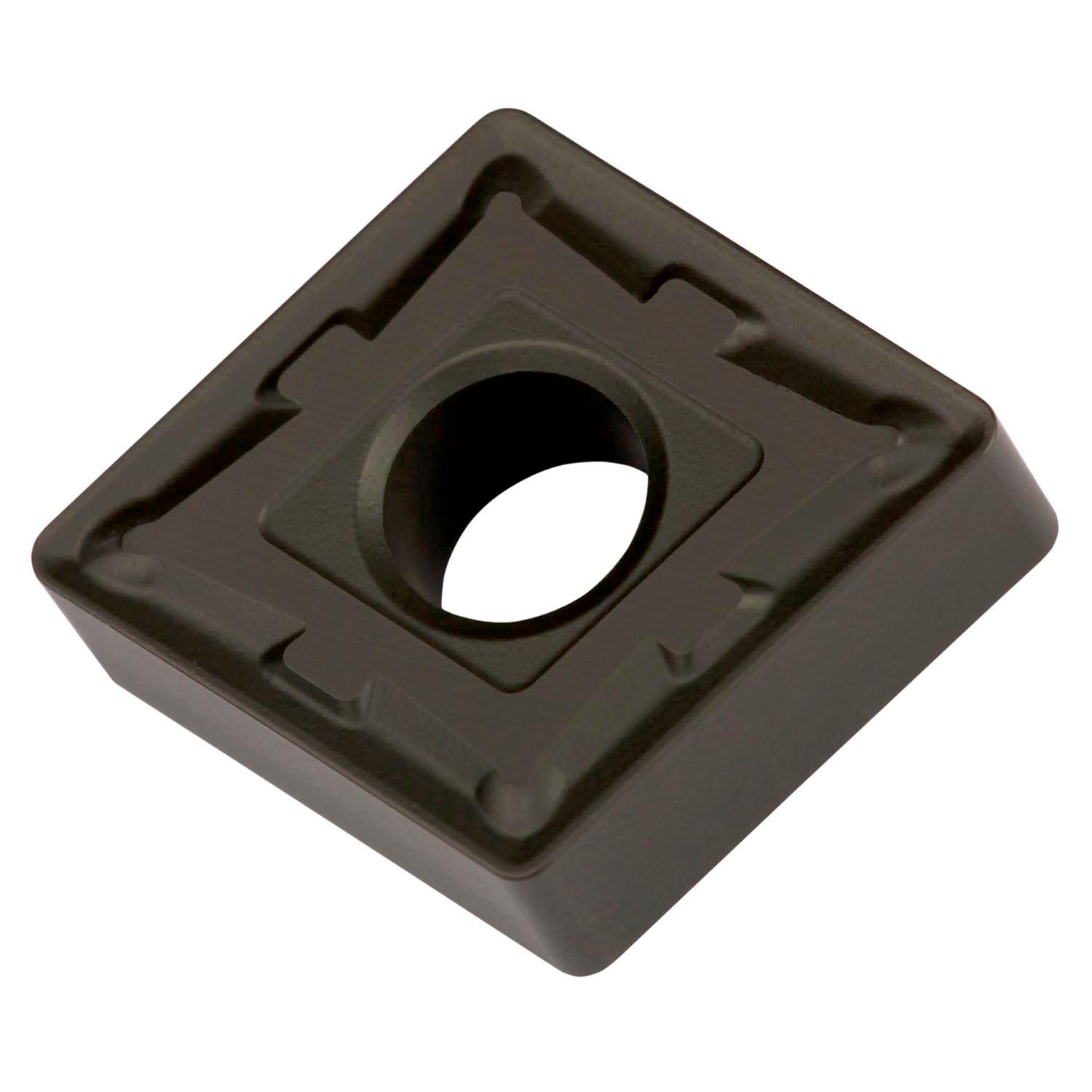

PRAMET CNMG 090308E-M:T9325 Turning inserts negative

Description: Value
EAN number: 3603602892430
Product number (SAP): 80015925
Ordering code ANSI: CNMG 322-M:T9325
Gross weight – grams: 4.54
Inscribed circle diameter – millimeter (IC): 9.525 mm
Fixing hole diameter – millimeter (D1): 3.81 mm
Cutting edge length – millimeter (L): 9.7 mm
Insert thickness – millimeter (S): 3.18 mm
Grade: T9325
Corner radius – millimeter (RE): 0.8 mm
Insert Clearance Code and Angle: N 0°
Insert Design: CNMG
Insert size: 09
Insert Thickness: 03
Insert Type: G
Chipbreaker manufacturer's designation (CBMD): M
Insert shape code (SC): C – rhombic 80° included angle
Tool Design: CN
Insert Geometry: Negative
ISO: CNMG090308E-M:T9325
