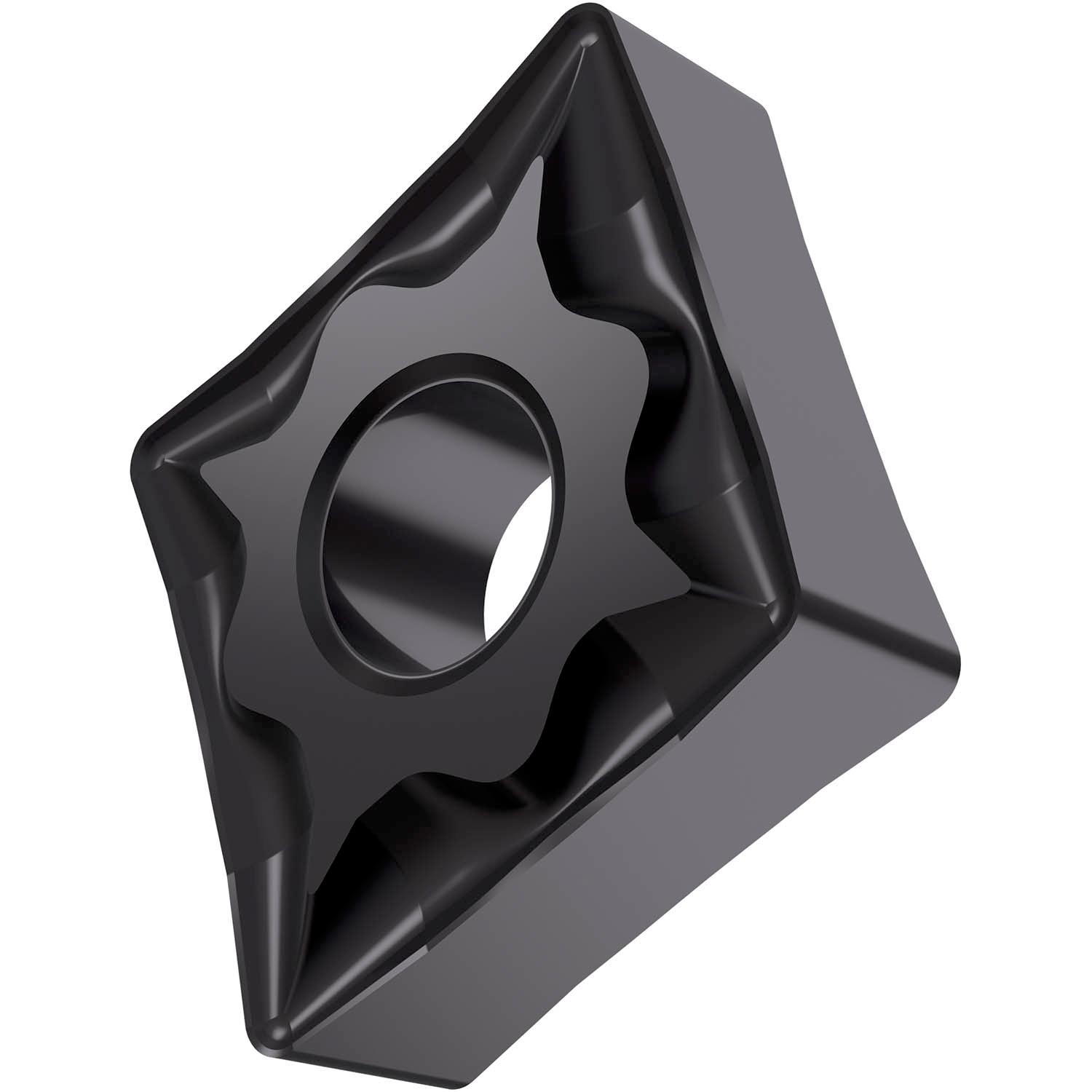

PRAMET CNMG 120404E-NF:T6310 Turning inserts negative

Description

Double-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 12.7mm, 4.76mm thick, 0.4mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker NF with rounded cutting edges, in grade T6310, a PVD coated extra fine grained WC-Co carbide within ISO ranges P01 -P15 and M01 -M15, for fine to medium machining of steels and stainless-steels

Additional information

Weight	0.0215 kg
barcode
Additional Information	Description: Value EAN number: 3603603076594 Product number (SAP): 80026298 Ordering code ANSI: CNMG 431-NF:T6310 Gross weight – grams: 8.946 Inscribed circle diameter – millimeter (IC): 12.7 mm Fixing hole diameter – millimeter (D1): 5.16 mm Cutting edge length – millimeter (L): 12.9 mm Insert thickness – millimeter (S): 4.76 mm Grade: T6310 Corner radius – millimeter (RE): 0.4 mm Insert Clearance Code and Angle: N 0° Insert Design: CNMG Insert size: 12 Insert Thickness: 04 Insert Type: G Chipbreaker manufacturer's designation (CBMD): NF Insert shape code (SC): C – rhombic 80° included angle Tool Design: CN Insert Geometry: Negative ISO: CNMG120404E-NF:T6310

Need Technical Advice?

Description

Additional information

Brand

PRAMET
