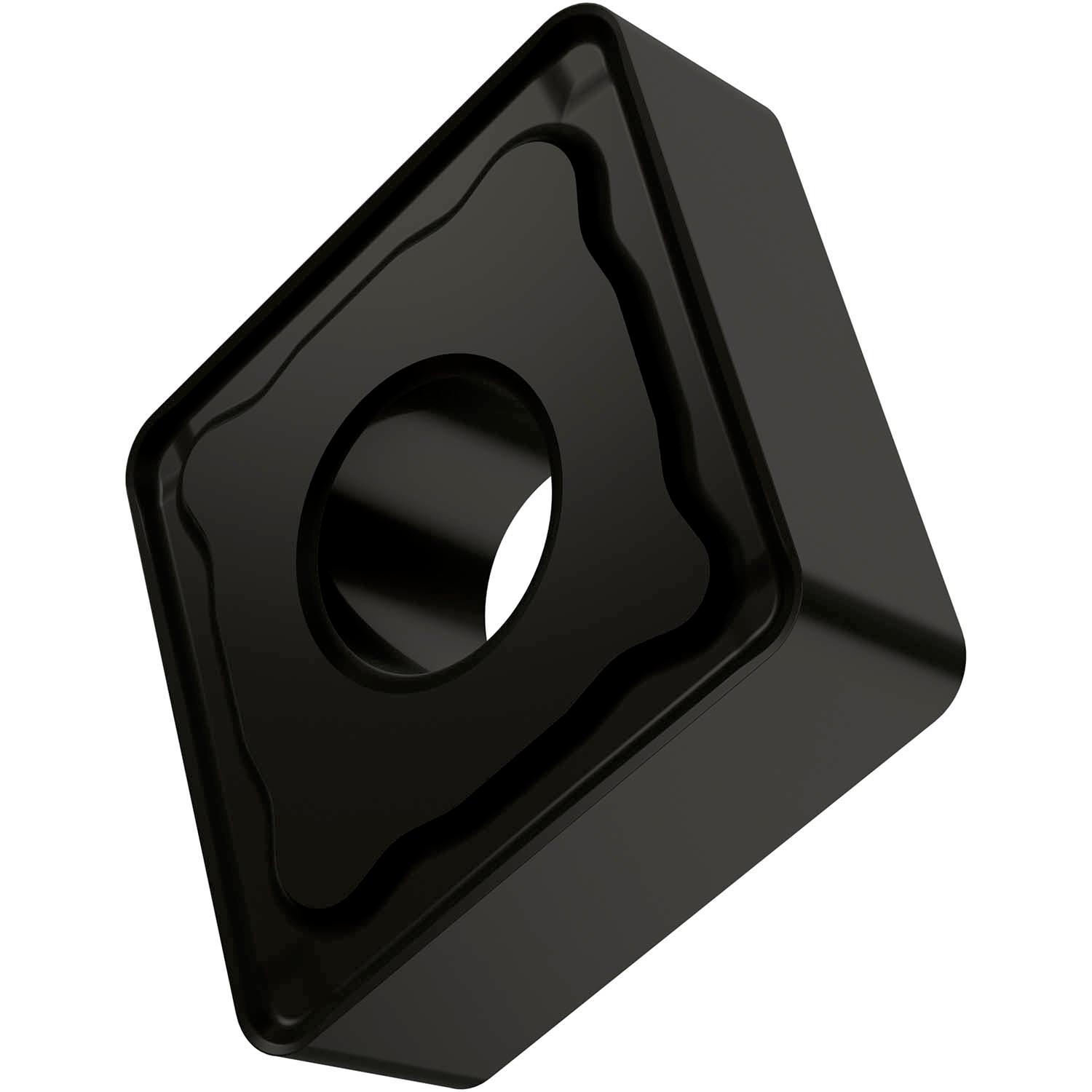

PRAMET CNMG 120404E-NM:T7325 Turning inserts negative

Description: Value
EAN number: 3603603163096
Product number (SAP): 80027735
Ordering code ANSI: CNMG 431-NM:T7325
Gross weight – grams: 9.316
Inscribed circle diameter – millimeter (IC): 12.7 mm
Fixing hole diameter – millimeter (D1): 5.16 mm
Cutting edge length – millimeter (L): 12.9 mm
Insert thickness – millimeter (S): 4.76 mm
Grade: T7325
Corner radius – millimeter (RE): 0.4 mm
Insert Clearance Code and Angle: N 0°
Insert Design: CNMG
Insert size: 12
Insert Thickness: 04
Insert Type: G
Chipbreaker manufacturer's designation (CBMD): NM
Insert shape code (SC): C – rhombic 80° included angle
Tool Design: CN
Insert Geometry: Negative
ISO: CNMG120404E-NM:T7325
