PRAMET CNMG 120408E-RM:T8315 Turning inserts negative

Description

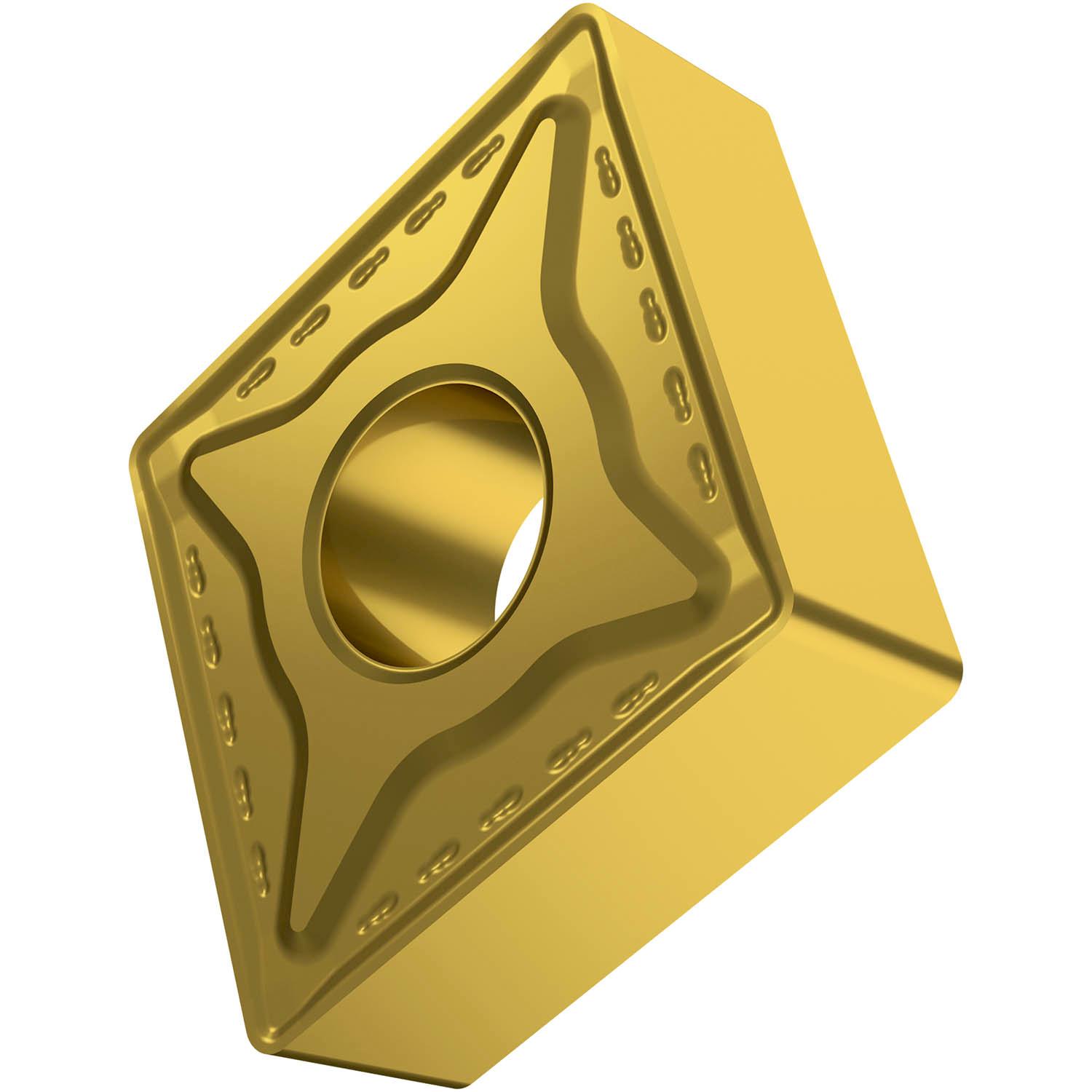

Double-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 12.7mm, 4.76mm thick, 0.8mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker RM with rounded cutting edges, in grade T8315, a PVD coated fine grained WC-Co carbide within ISO ranges M05 -M20 and K05 -K25, for medium to heavy machining of stainless-steels and cast-irons

Additional information

Weight	0.0215 kg
barcode
Additional Information	Description: Value EAN number: 3603602889546 Product number (SAP): 80015409 Ordering code ANSI: CNMG 432-RM:T8315 Gross weight – grams: 9.698 Inscribed circle diameter – millimeter (IC): 12.7 mm Fixing hole diameter – millimeter (D1): 5.16 mm Cutting edge length – millimeter (L): 12.9 mm Insert thickness – millimeter (S): 4.76 mm Grade: T8315 Corner radius – millimeter (RE): 0.8 mm Insert Clearance Code and Angle: N 0° Insert Design: CNMG Insert size: 12 Insert Thickness: 04 Insert Type: G Chipbreaker manufacturer's designation (CBMD): RM Insert shape code (SC): C – rhombic 80° included angle Tool Design: CN Insert Geometry: Negative ISO: CNMG120408E-RM:T8315
