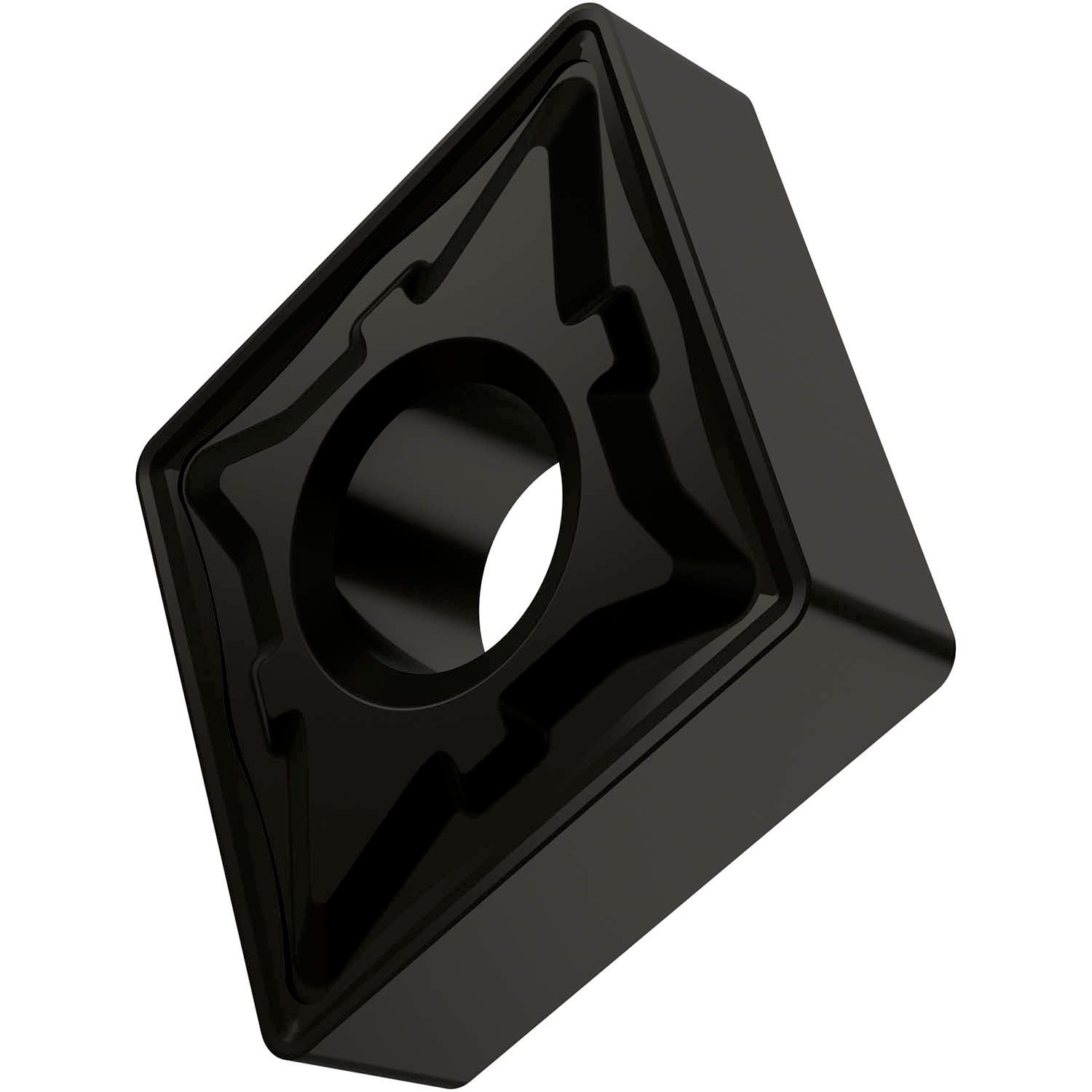

PRAMET CNMG 160608E-R:T5315 Turning inserts negative

Description: Value
EAN number: 3603603075788
Product number (SAP): 80025653
Ordering code ANSI: CNMG 542-R:T5315
Gross weight – grams: 13.991
Inscribed circle diameter – millimeter (IC): 15.875 mm
Fixing hole diameter – millimeter (D1): 6.35 mm
Cutting edge length – millimeter (L): 16.1 mm
Insert thickness – millimeter (S): 6.35 mm
Grade: T5315
Corner radius – millimeter (RE): 0.8 mm
Insert Clearance Code and Angle: N 0°
Insert Design: CNMG
Insert size: 16
Insert Thickness: 06
Insert Type: G
Chipbreaker manufacturer's designation (CBMD): R
Insert shape code (SC): C – rhombic 80° included angle
Tool Design: CN
Insert Geometry: Negative
ISO: CNMG160608E-R:T5315
