PRAMET CNMG 160612-UR:T9020 Focus Products

Description

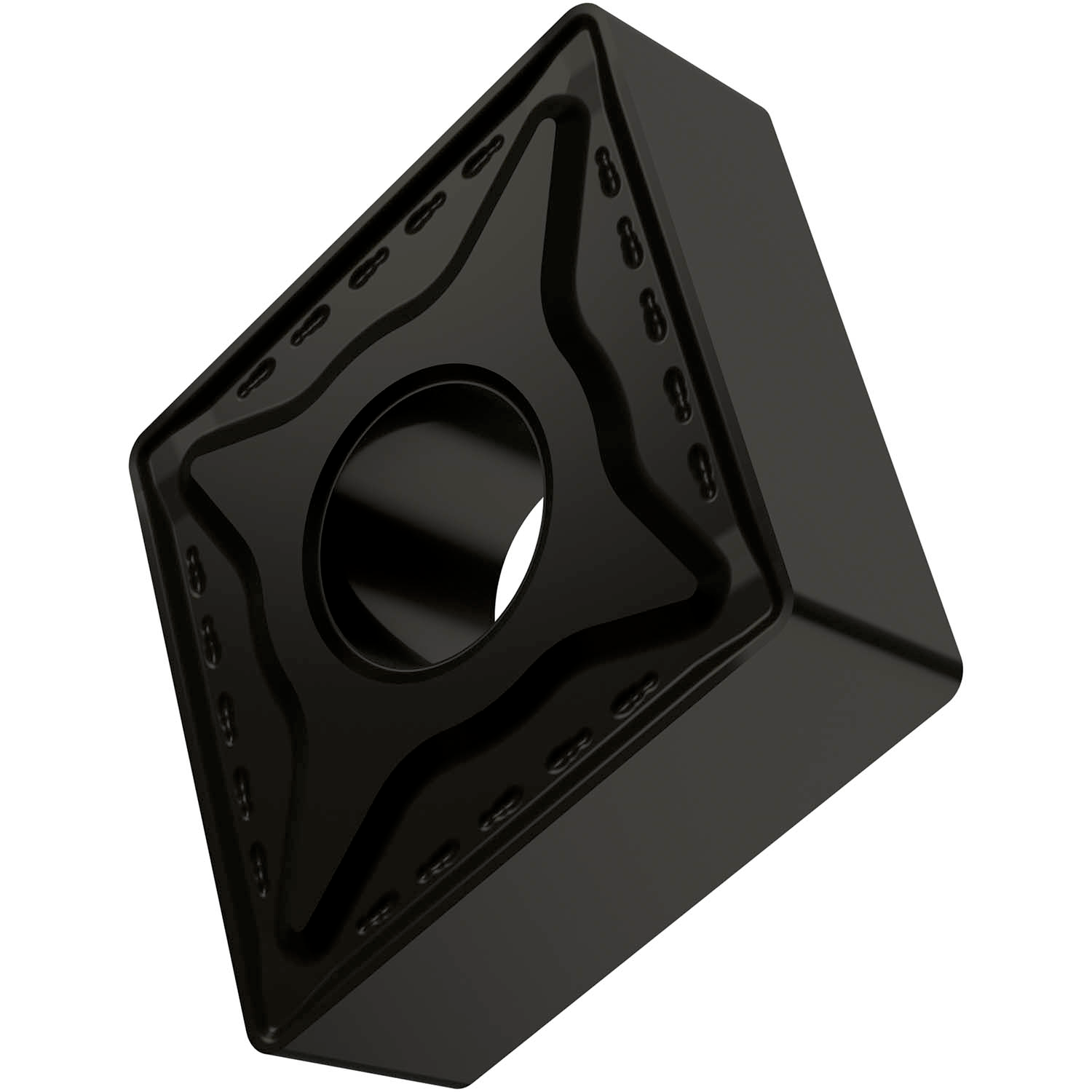

Double-sided negative turning insert, 80° rhomboid, nose radius, with an indexing accuracy according to ISO-tolerance class-M, WC-Co carbide.

Weight	0.0192 kg
barcode	3603604144872
Additional Information	Description: Value EAN number: 3603604144872 Product number (SAP): 80035743 Ordering code ANSI: CNMG 543-UR:T9020 Gross weight – grams: 19.246 Inscribed circle diameter – millimeter (IC): 15.875 mm Fixing hole diameter – millimeter (D1): 6.35 mm Cutting edge length – millimeter (L): 16.1 mm Insert thickness – millimeter (S): 6.35 mm Grade: T9020 Corner radius – millimeter (RE): 1.2 mm Insert Clearance Code and Angle: N 0° Insert Design: CNMG Insert Type: G Chipbreaker manufacturer's designation (CBMD): UR Insert shape code (SC): C – rhombic 80° included angle Tool Design: CN Insert Geometry: Negative ISO: CNMG160612-UR:T9020
