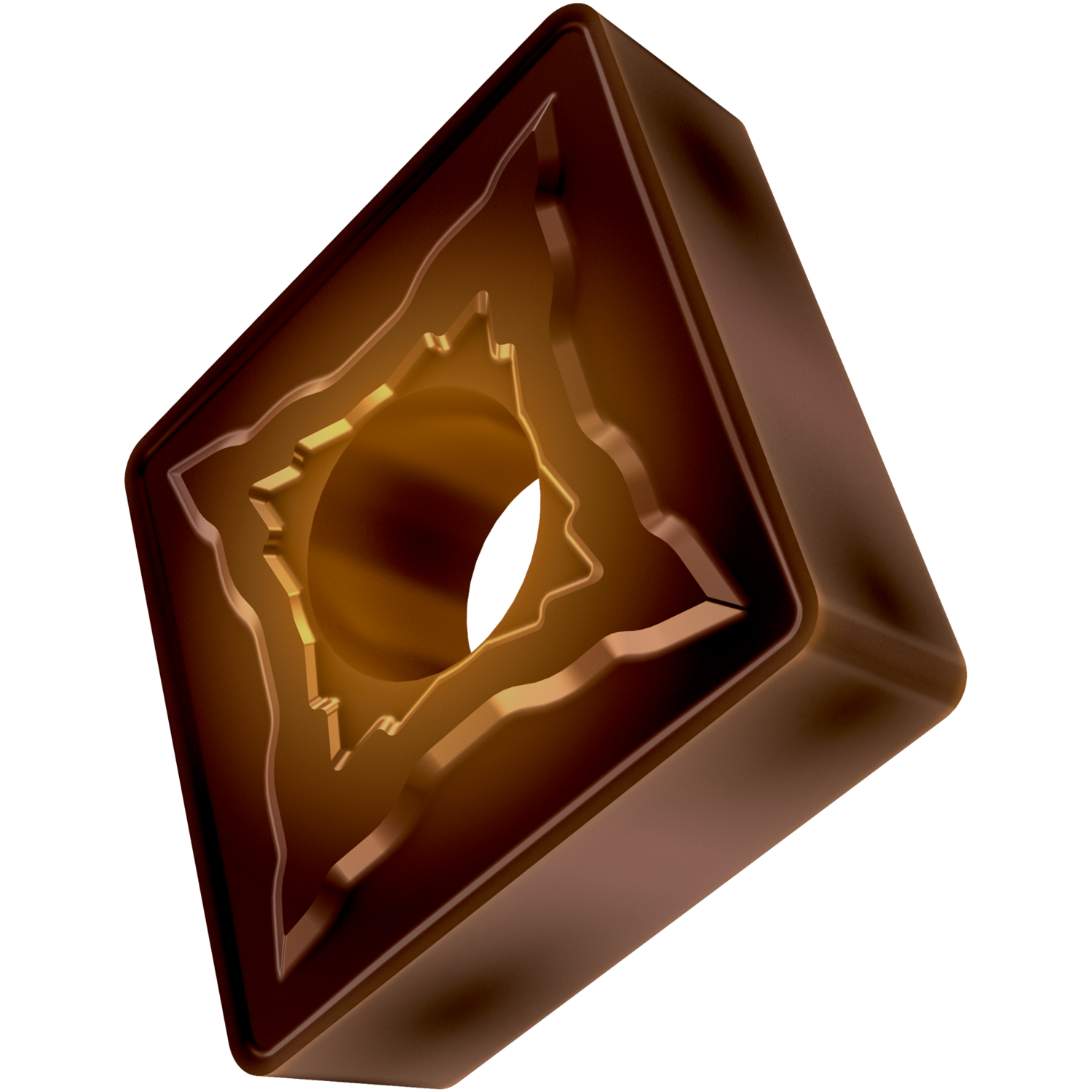

PRAMET CNMG 160616E-NMR:T8430 Turning inserts negative

Description: Value
EAN number: 3603603819139
Product number (SAP): 80033135
Ordering code ANSI: CNMG 544-NMR:T8430
Gross weight – grams: 19.83
Inscribed circle diameter – millimeter (IC): 15.875 mm
Fixing hole diameter – millimeter (D1): 6.35 mm
Cutting edge length – millimeter (L): 16.1 mm
Insert thickness – millimeter (S): 6.35 mm
Grade: T8430
Corner radius – millimeter (RE): 1.6 mm
Insert Clearance Code and Angle: N 0°
Insert Design: CNMG
Insert size: 16
Insert Thickness: 06
Insert Type: G
Chipbreaker manufacturer's designation (CBMD): NMR
Insert shape code (SC): C – rhombic 80° included angle
Tool Design: CN
Insert Geometry: Negative
ISO: CNMG160616E-NMR:T8430
