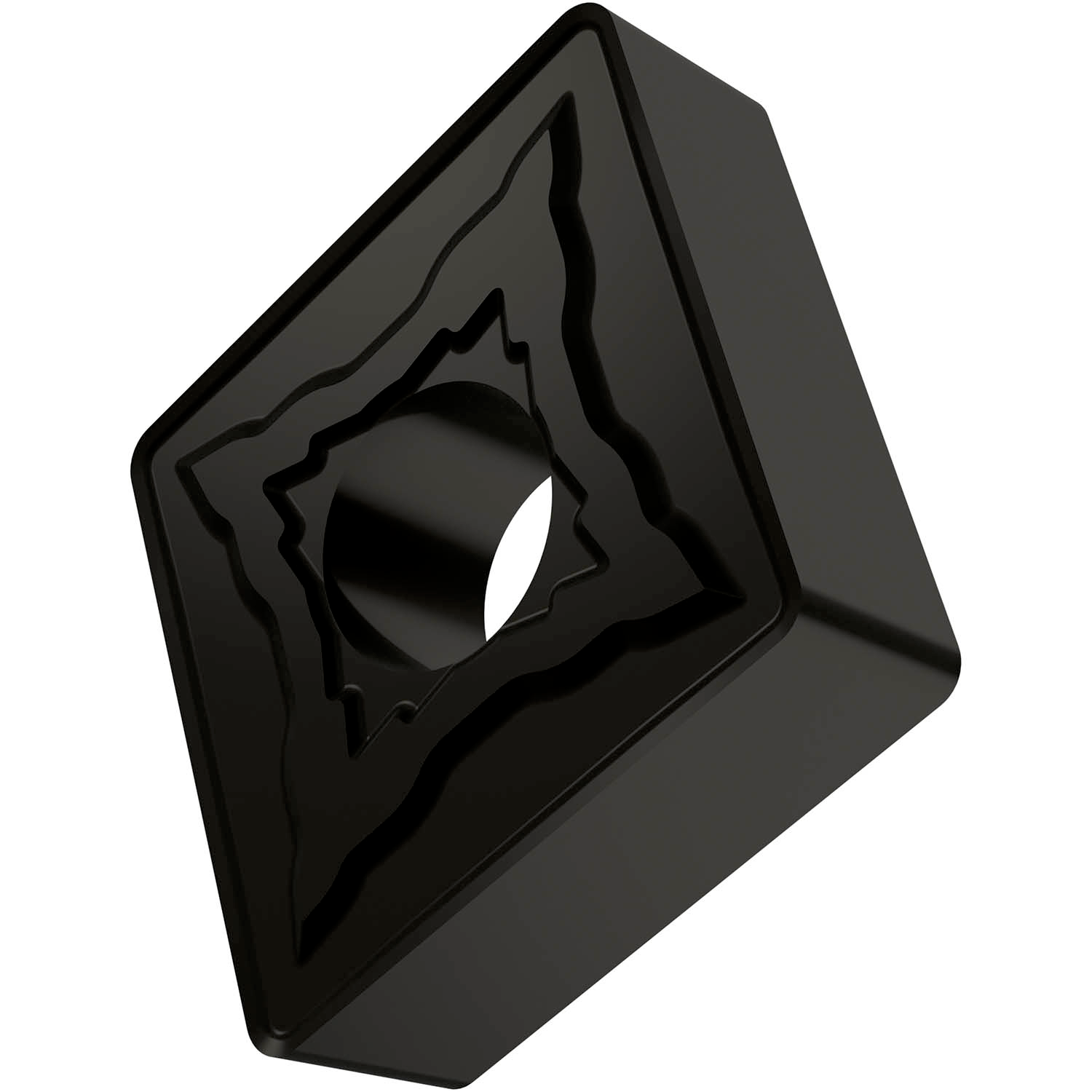

PRAMET CNMG 190612E-NMR:T7335 Turning inserts negative

Description

Double-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 19.05mm, 6.35mm thick, 1.2mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker NMR with rounded cutting edges, in grade T7335, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges M20 -M40 and S15 -S25, for fine to heavy machining of stainless-steels and super-alloys

Additional information

Weight	0.0463 kg
barcode
Additional Information	Description: Value EAN number: 3603603111332 Product number (SAP): 80027175 Ordering code ANSI: CNMG 643-NMR:T7335 Gross weight – grams: 29.31 Inscribed circle diameter – millimeter (IC): 19.05 mm Fixing hole diameter – millimeter (D1): 7.94 mm Cutting edge length – millimeter (L): 19.3 mm Insert thickness – millimeter (S): 6.35 mm Grade: T7335 Corner radius – millimeter (RE): 1.2 mm Insert Clearance Code and Angle: N 0° Insert Design: CNMG Insert size: 19 Insert Thickness: 06 Insert Type: G Chipbreaker manufacturer's designation (CBMD): NMR Insert shape code (SC): C – rhombic 80° included angle Tool Design: CN Insert Geometry: Negative ISO: CNMG190612E-NMR:T7335

Need Technical Advice?

Description

Additional information

Brand

PRAMET
