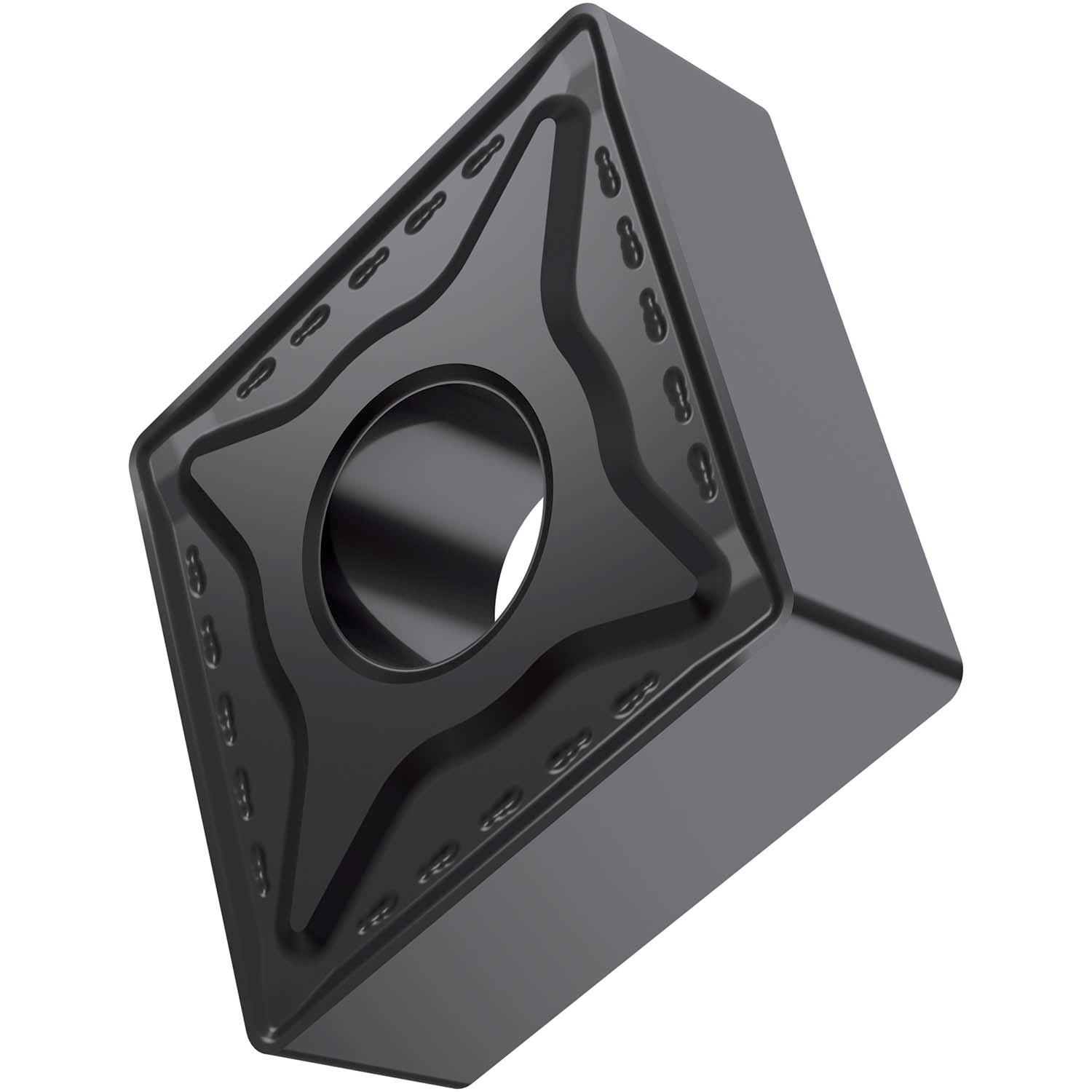

PRAMET CNMG 190616E-RM:T6310 Turning inserts negative

Description: Value
EAN number: 3603603076013
Product number (SAP): 80026242
Ordering code ANSI: CNMG 644-RM:T6310
Gross weight – grams: 28.442
Inscribed circle diameter – millimeter (IC): 19.05 mm
Fixing hole diameter – millimeter (D1): 7.94 mm
Cutting edge length – millimeter (L): 19.3 mm
Insert thickness – millimeter (S): 6.35 mm
Grade: T6310
Corner radius – millimeter (RE): 1.6 mm
Insert Clearance Code and Angle: N 0°
Insert Design: CNMG
Insert size: 19
Insert Thickness: 06
Insert Type: G
Chipbreaker manufacturer's designation (CBMD): RM
Insert shape code (SC): C – rhombic 80° included angle
Tool Design: CN
Insert Geometry: Negative
ISO: CNMG190616E-RM:T6310
