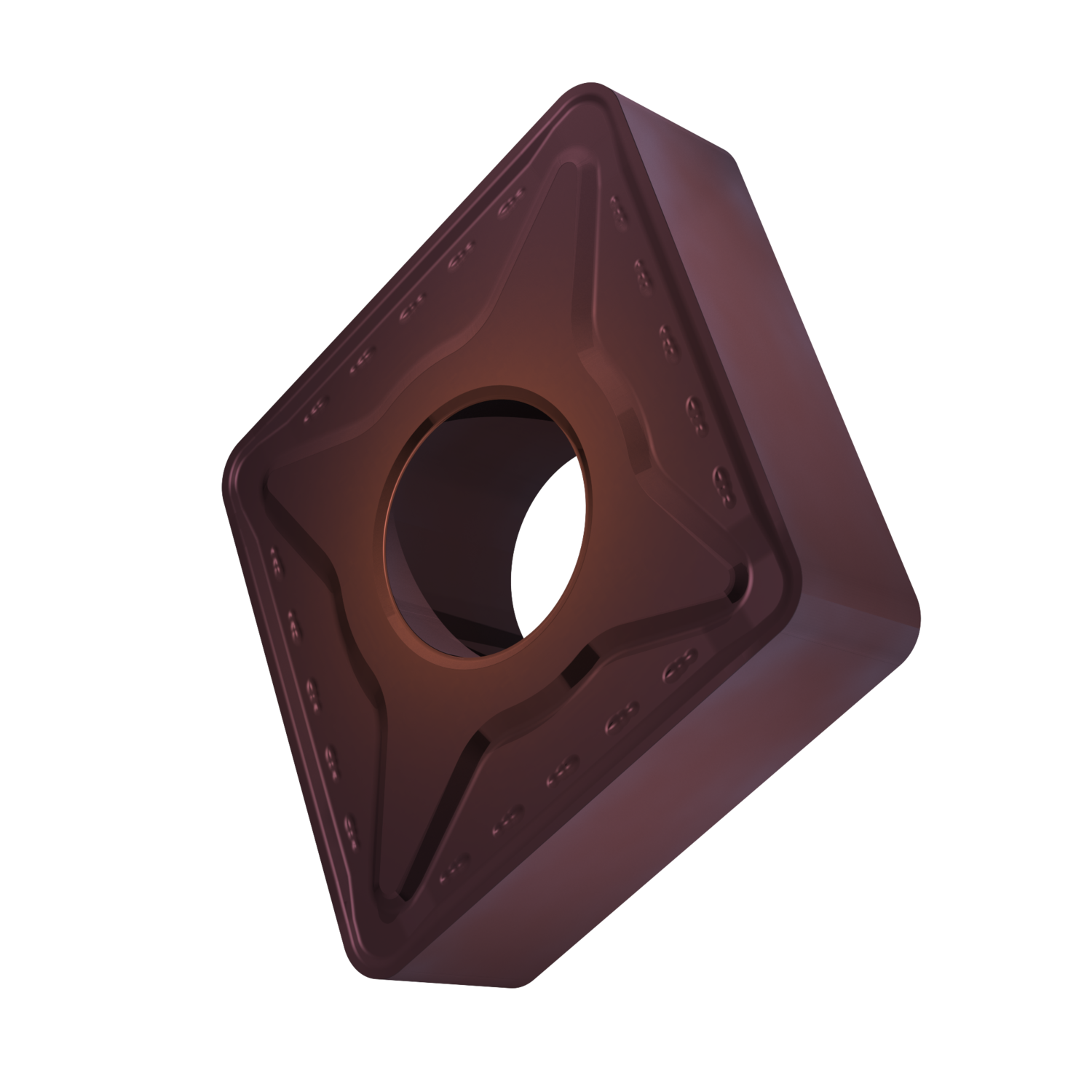

PRAMET CNMG 190616E-RM:T8430 Turning inserts negative

Description

Double-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 19.05mm, 6.35mm thick, 1.6mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker RM with rounded cutting edges, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO ranges P20 -P40 and M20 -M35, for medium to heavy machining of steels and stainless-steels

Additional information

Weight	0.0280 kg
barcode	3603604108195
Additional Information	Description: Value EAN number: 3603604108195 Product number (SAP): 80035352 Ordering code ANSI: CNMG 644-RM:T8430 Gross weight – grams: 28.016 Inscribed circle diameter – millimeter (IC): 19.05 mm Fixing hole diameter – millimeter (D1): 7.94 mm Cutting edge length – millimeter (L): 19.3 mm Insert thickness – millimeter (S): 6.35 mm Grade: T8430 Corner radius – millimeter (RE): 1.6 mm Insert Clearance Code and Angle: N 0° Insert Design: CNMG Insert size: 19 Insert Type: G Chipbreaker manufacturer's designation (CBMD): RM Insert shape code (SC): C – rhombic 80° included angle Tool Design: CN Insert Geometry: Negative ISO: CNMG190616E-RM:T8430
