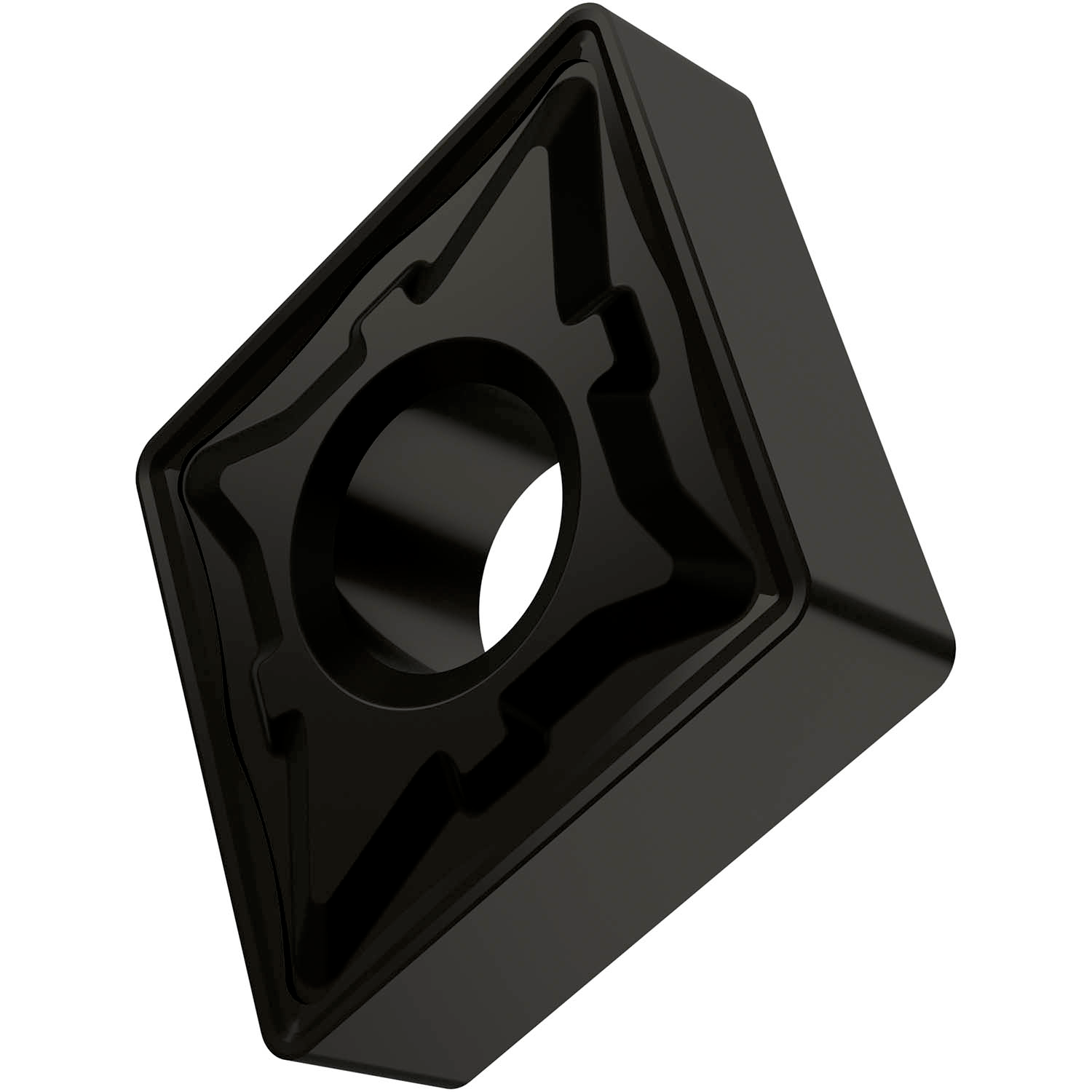

PRAMET CNMG 190616E-R:T9315 Turning inserts negative

Description

Double-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 19.05mm, 6.35mm thick, 1.6mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker R with rounded cutting edges, in grade T9315, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05 -P25, for medium to heavy machining of steels

Additional information

Weight	0.0463 kg
barcode
Additional Information	Description: Value EAN number: 3603602890948 Product number (SAP): 80015599 Ordering code ANSI: CNMG 644-R:T9315 Gross weight – grams: 27.029 Inscribed circle diameter – millimeter (IC): 19.05 mm Fixing hole diameter – millimeter (D1): 7.94 mm Cutting edge length – millimeter (L): 19.3 mm Insert thickness – millimeter (S): 6.35 mm Grade: T9315 Corner radius – millimeter (RE): 1.6 mm Insert Clearance Code and Angle: N 0° Insert Design: CNMG Insert size: 19 Insert Thickness: 06 Insert Type: G Chipbreaker manufacturer's designation (CBMD): R Insert shape code (SC): C – rhombic 80° included angle Tool Design: CN Insert Geometry: Negative ISO: CNMG190616E-R:T9315

Need Technical Advice?

Description

Additional information

Brand

PRAMET
