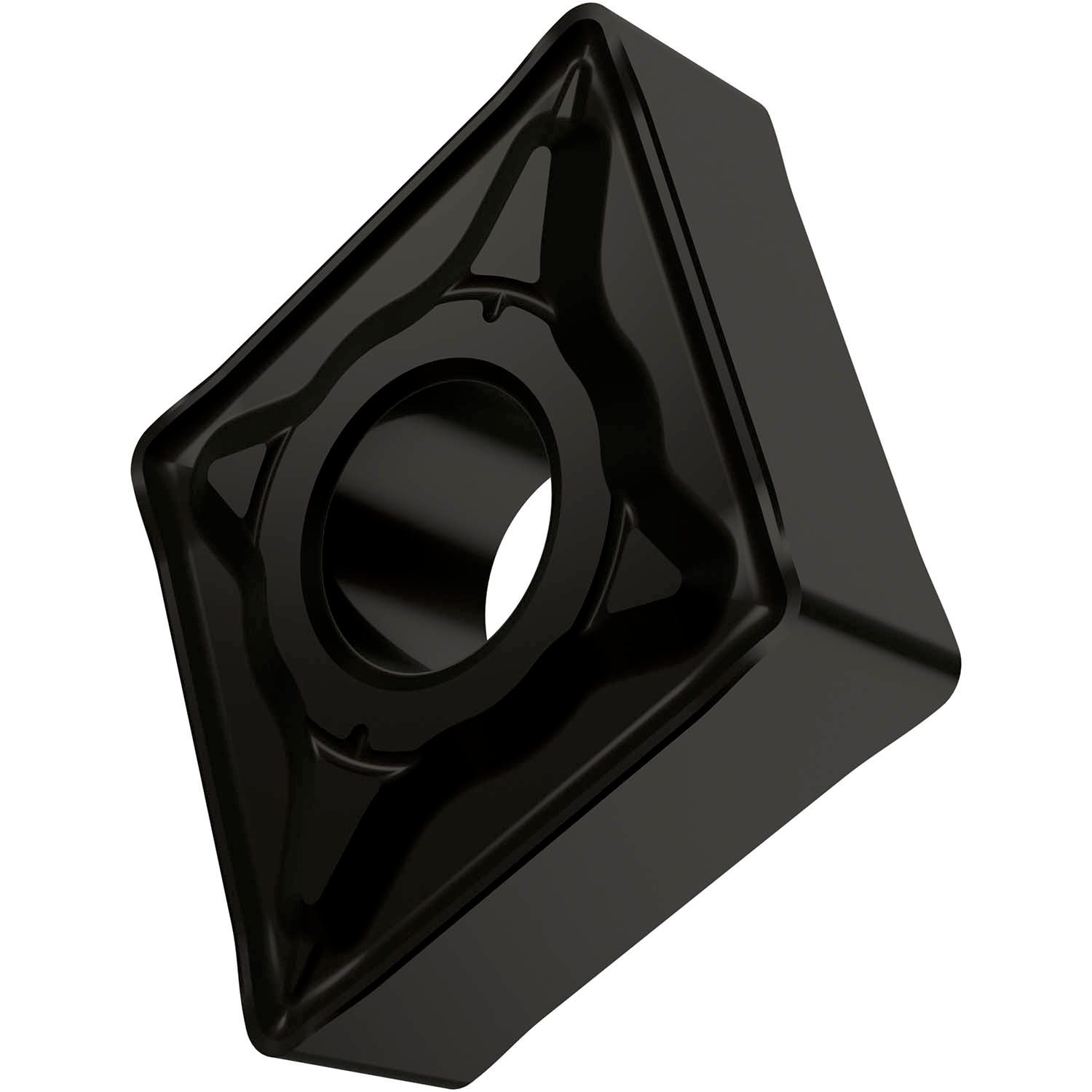

PRAMET CNMG 250924-NRM:T7335 Turning inserts negative

Description: Value
EAN number: 3603603241428
Product number (SAP): 80029118
Ordering code ANSI: CNMG 866-NRM:T7335
Gross weight – grams: 73.011
Inscribed circle diameter – millimeter (IC): 25.4 mm
Fixing hole diameter – millimeter (D1): 9.12 mm
Cutting edge length – millimeter (L): 25.8 mm
Insert thickness – millimeter (S): 9.525 mm
Grade: T7335
Corner radius – millimeter (RE): 2.4 mm
Insert Clearance Code and Angle: N 0°
Insert Design: CNMG
Insert size: 25
Insert Thickness: 09
Insert Type: G
Chipbreaker manufacturer's designation (CBMD): NRM
Insert shape code (SC): C – rhombic 80° included angle
Tool Design: CN
Insert Geometry: Negative
ISO: CNMG250924-NRM:T7335
