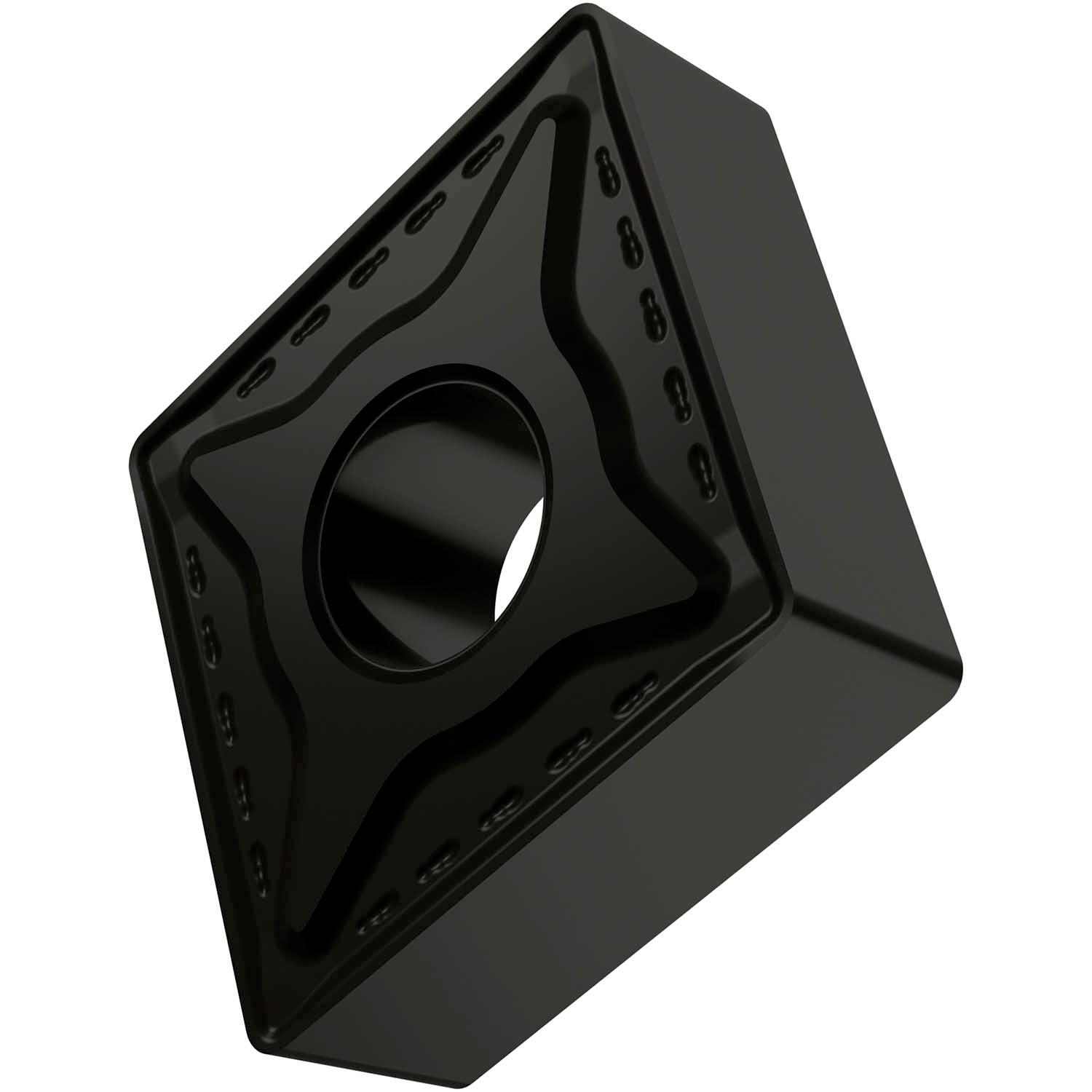

PRAMET CNMG 250924E-RM:T9325 Turning inserts negative

Product Code: CNMG 250924E-RM:T9325

$98.01$89.10 Ex. GST

Product Code: CNMG 250924E-RM:T9325 SKU CNMG 250924E-RM:T9325 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Double-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 25.4mm, 9.52mm thick, 2.4mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker RM with rounded cutting edges, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges P15 -P35 and M10 -M30, for medium to heavy machining of steels and stainless-steels

Additional information

Weight 0.0952 kg
barcode
Additional Information

Description: Value
EAN number: 3603602892775
Product number (SAP): 80015964
Ordering code ANSI: CNMG 866-RM:T9325
Gross weight – grams: 82.84
Inscribed circle diameter – millimeter (IC): 25.4 mm
Fixing hole diameter – millimeter (D1): 9.12 mm
Cutting edge length – millimeter (L): 25.8 mm
Insert thickness – millimeter (S): 9.525 mm
Grade: T9325
Corner radius – millimeter (RE): 2.4 mm
Insert Clearance Code and Angle: N 0°
Insert Design: CNMG
Insert size: 25
Insert Thickness: 09
Insert Type: G
Chipbreaker manufacturer's designation (CBMD): RM
Insert shape code (SC): C – rhombic 80° included angle
Tool Design: CN
Insert Geometry: Negative
ISO: CNMG250924E-RM:T9325

Brand

PRAMET
