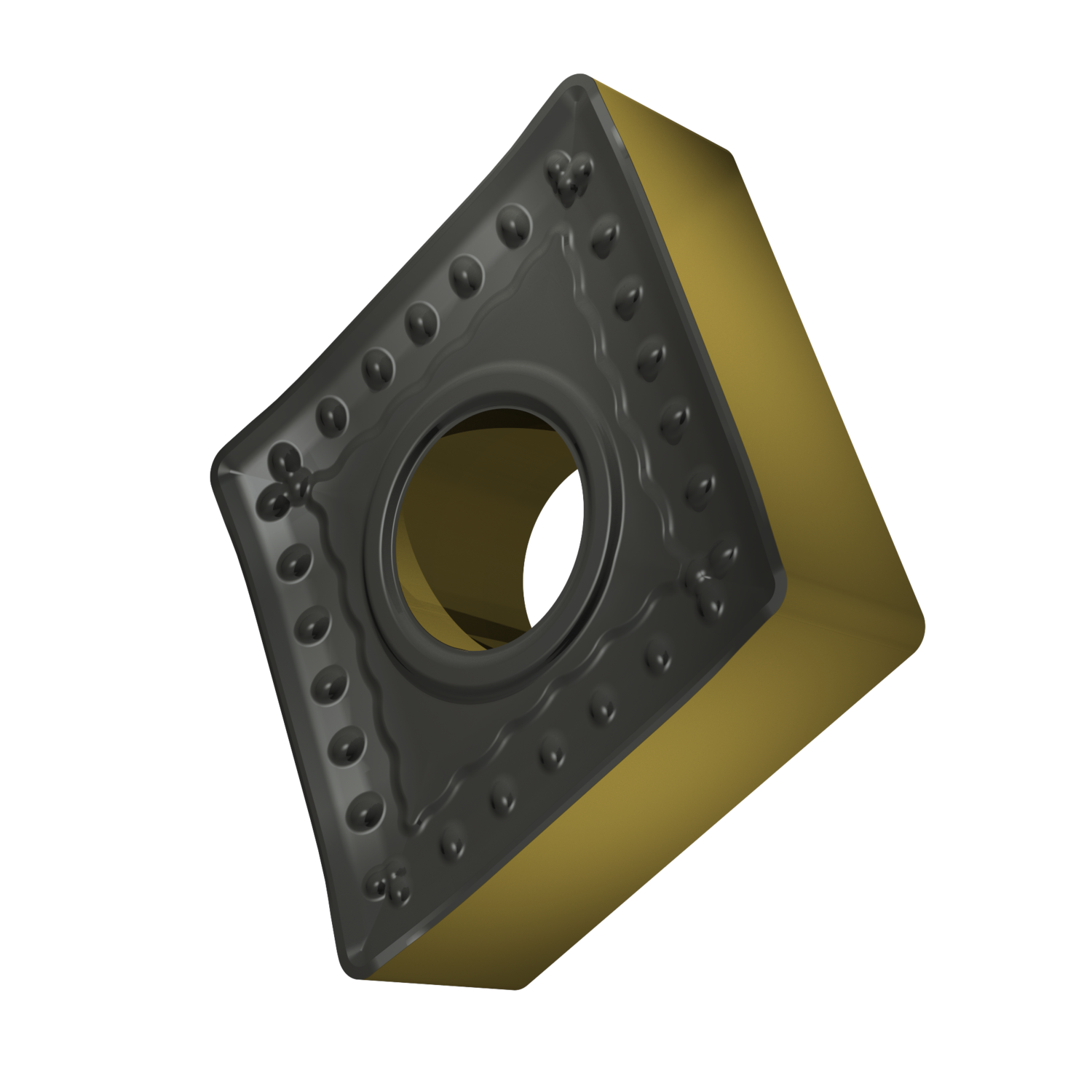

PRAMET CNMM 160608E-OR:T9415 Turning inserts negative

Description

Double-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 15.575mm, 6.35mm thick, 0.8mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker OR with rounded cutting edges, in grade T9415, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05 -P30, for medium to extra heavy machining of steels

Additional information

Weight	0.0178 kg
barcode	3603604107525
Additional Information	Description: Value EAN number: 3603604107525 Product number (SAP): 80035393 Ordering code ANSI: CNMM 542-OR:T9415 Gross weight – grams: 17.828 Inscribed circle diameter – millimeter (IC): 15.875 mm Fixing hole diameter – millimeter (D1): 6.35 mm Cutting edge length – millimeter (L): 16.1 mm Insert thickness – millimeter (S): 6.35 mm Grade: T9415 Corner radius – millimeter (RE): 0.8 mm Insert Clearance Code and Angle: N 0° Insert Design: CNMM Insert size: 16 Insert Type: M Chipbreaker manufacturer's designation (CBMD): OR_ Insert shape code (SC): C – rhombic 80° included angle Tool Design: CN Insert Geometry: Negative ISO: CNMM160608E-OR:T9415
