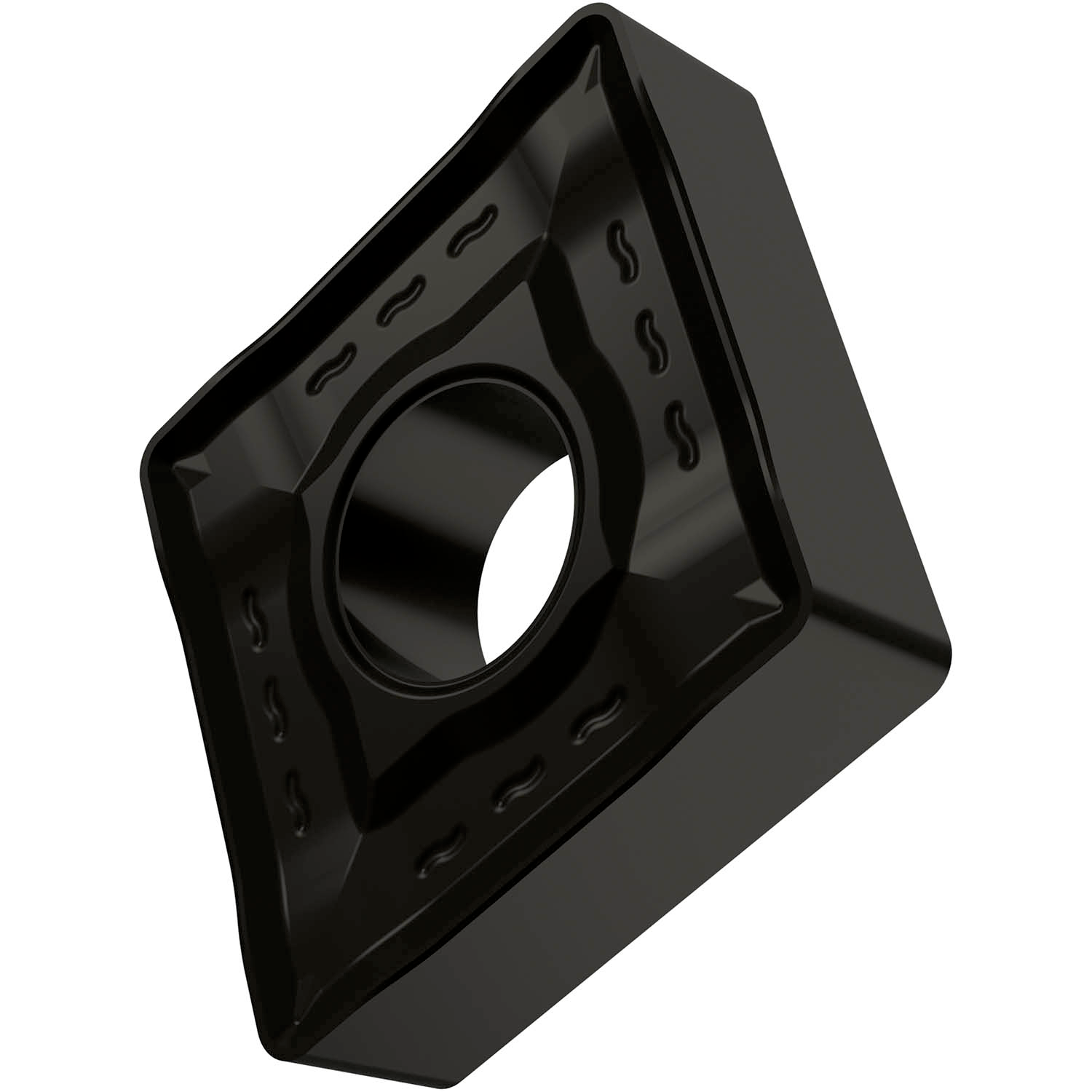

PRAMET CNMM 160616E-NR2:T9325 Turning inserts negative

Product Code: CNMM 160616E-NR2:T9325

$35.23$32.03 Ex. GST

Product Code: CNMM 160616E-NR2:T9325 SKU CNMM 160616E-NR2:T9325 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Double-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 15.575mm, 6.35mm thick, 1.6mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker NR2 with rounded cutting edges, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges P15 -P35 and M10 -M30, for medium to extra heavy machining of steels and stainless-steels

Additional information

Weight 0.0342 kg
barcode
Additional Information

Description: Value
EAN number: 3603602892898
Product number (SAP): 80015978
Ordering code ANSI: CNMM 544-NR2:T9325
Gross weight – grams: 19
Inscribed circle diameter – millimeter (IC): 15.875 mm
Fixing hole diameter – millimeter (D1): 6.35 mm
Cutting edge length – millimeter (L): 16.1 mm
Insert thickness – millimeter (S): 6.35 mm
Grade: T9325
Corner radius – millimeter (RE): 1.6 mm
Insert Clearance Code and Angle: N 0°
Insert Design: CNMM
Insert size: 16
Insert Thickness: 06
Insert Type: M
Chipbreaker manufacturer's designation (CBMD): NR2
Insert shape code (SC): C – rhombic 80° included angle
Tool Design: CN
Insert Geometry: Negative
ISO: CNMM160616E-NR2:T9325

Brand

PRAMET
