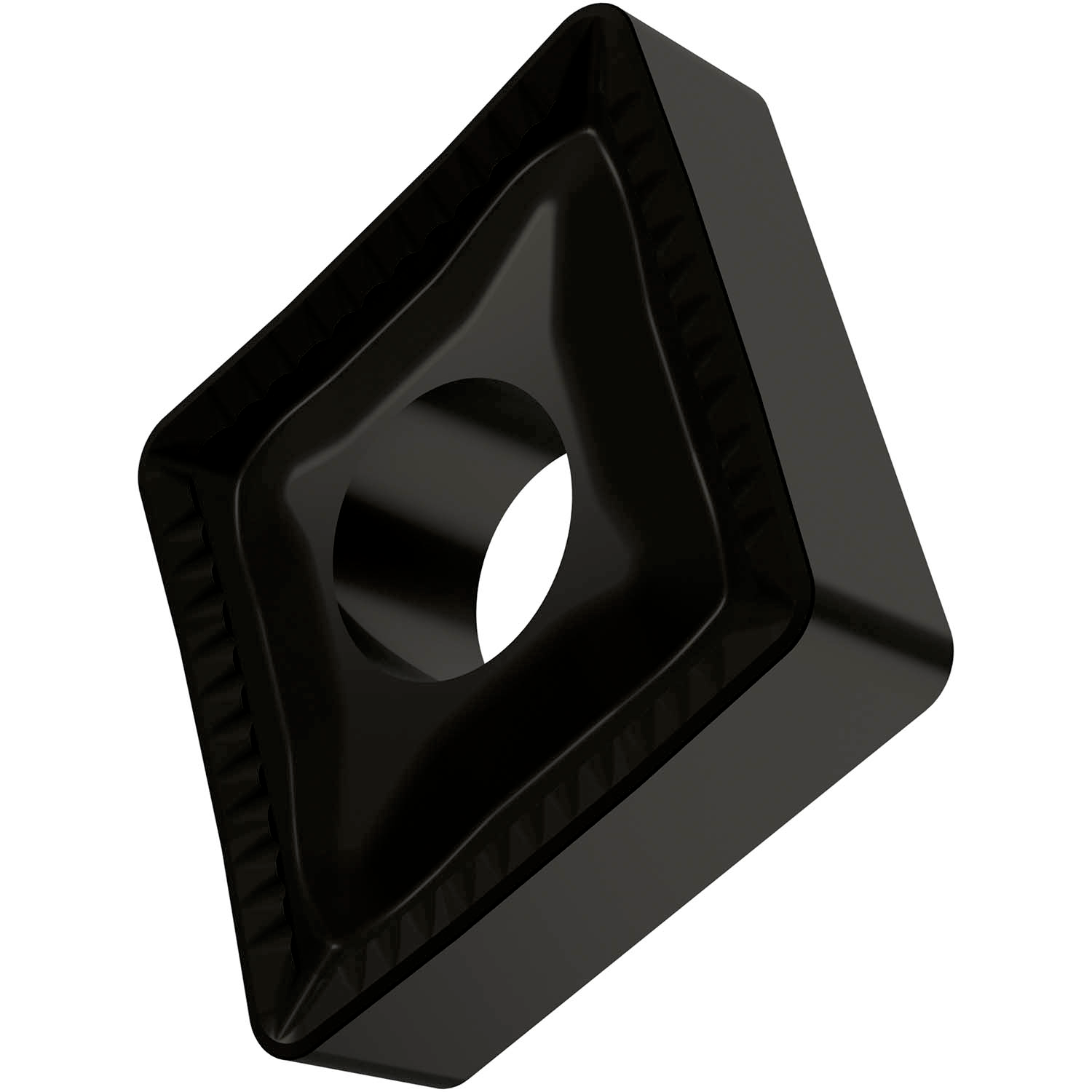

PRAMET CNMM 190616E-HR:T9335 Turning inserts negative

Description: Value
EAN number: 3603602902542
Product number (SAP): 80017224
Ordering code ANSI: CNMM 644-HR:T9335
Gross weight – grams: 25.571
Inscribed circle diameter – millimeter (IC): 19.05 mm
Fixing hole diameter – millimeter (D1): 7.94 mm
Cutting edge length – millimeter (L): 19.3 mm
Insert thickness – millimeter (S): 6.35 mm
Grade: T9335
Corner radius – millimeter (RE): 1.6 mm
Insert Clearance Code and Angle: N 0°
Insert Design: CNMM
Insert size: 19
Insert Thickness: 06
Insert Type: M
Chipbreaker manufacturer's designation (CBMD): HR
Insert shape code (SC): C – rhombic 80° included angle
Tool Design: CN
Insert Geometry: Negative
ISO: CNMM190616E-HR:T9335
