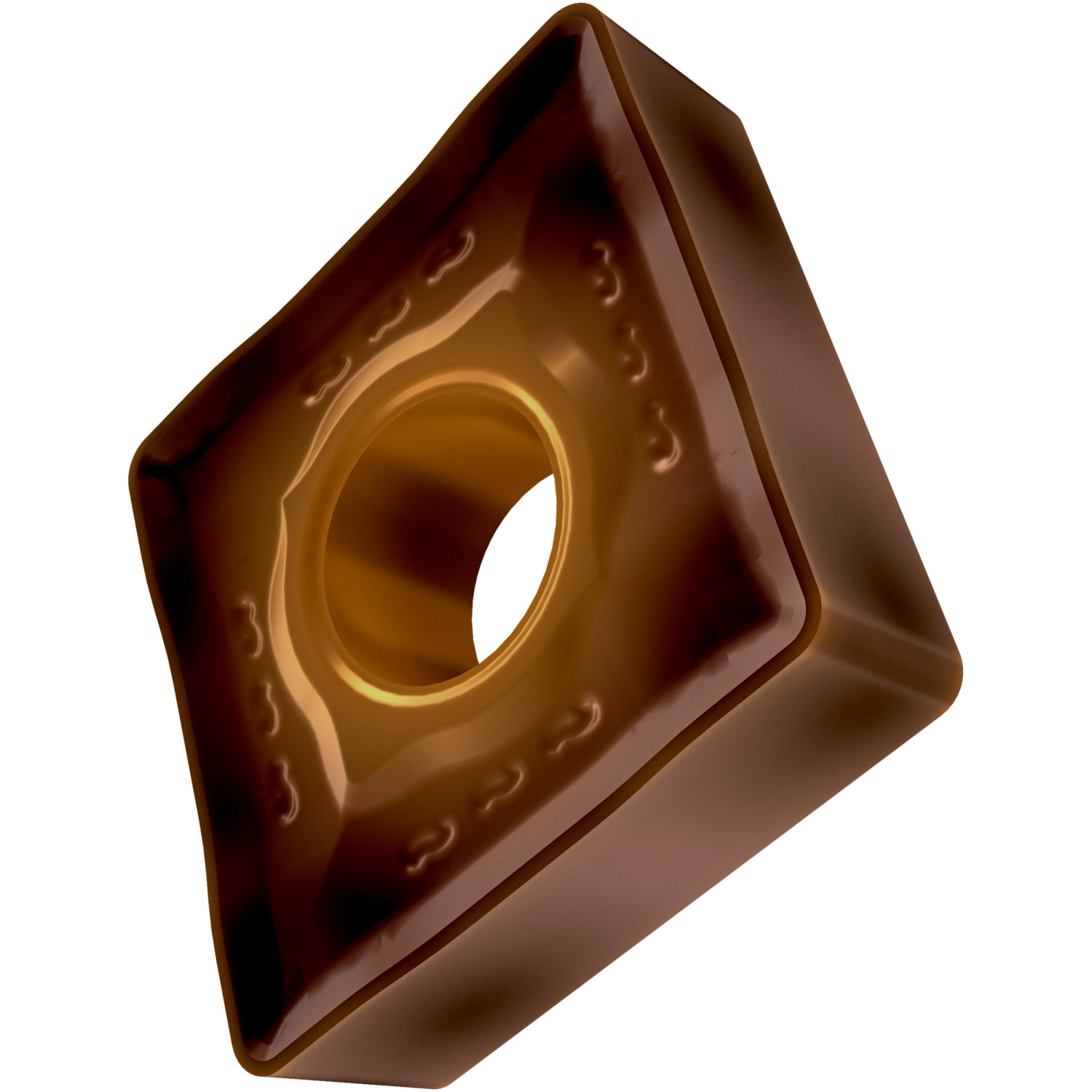

PRAMET CNMM 190616E-NR2:T8430 Turning inserts negative

Product Code: CNMM 190616E-NR2:T8430

$49.17$44.70 Ex. GST

Product Code: CNMM 190616E-NR2:T8430 SKU CNMM 190616E-NR2:T8430 Categories , ,
PRAMET CNMM 190616E-NR2:T8430 Turning inserts negative

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Double-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 19.05mm, 6.35mm thick, 1.6mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker NR2 with rounded cutting edges, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO ranges P20 -P40 and M20 -M35, for medium to extra heavy machining of steels and stainless-steels

Additional information

Weight 0.0477 kg
barcode
Additional Information

Description: Value
EAN number: 3603603819269
Product number (SAP): 80033148
Ordering code ANSI: CNMM 644-NR2:T8430
Gross weight – grams: 26.871
Inscribed circle diameter – millimeter (IC): 19.05 mm
Fixing hole diameter – millimeter (D1): 7.94 mm
Cutting edge length – millimeter (L): 19.3 mm
Insert thickness – millimeter (S): 6.35 mm
Grade: T8430
Corner radius – millimeter (RE): 1.6 mm
Insert Clearance Code and Angle: N 0°
Insert Design: CNMM
Insert size: 19
Insert Thickness: 06
Insert Type: M
Chipbreaker manufacturer's designation (CBMD): NR2
Insert shape code (SC): C – rhombic 80° included angle
Tool Design: CN
Insert Geometry: Negative
ISO: CNMM190616E-NR2:T8430

Brand

PRAMET
