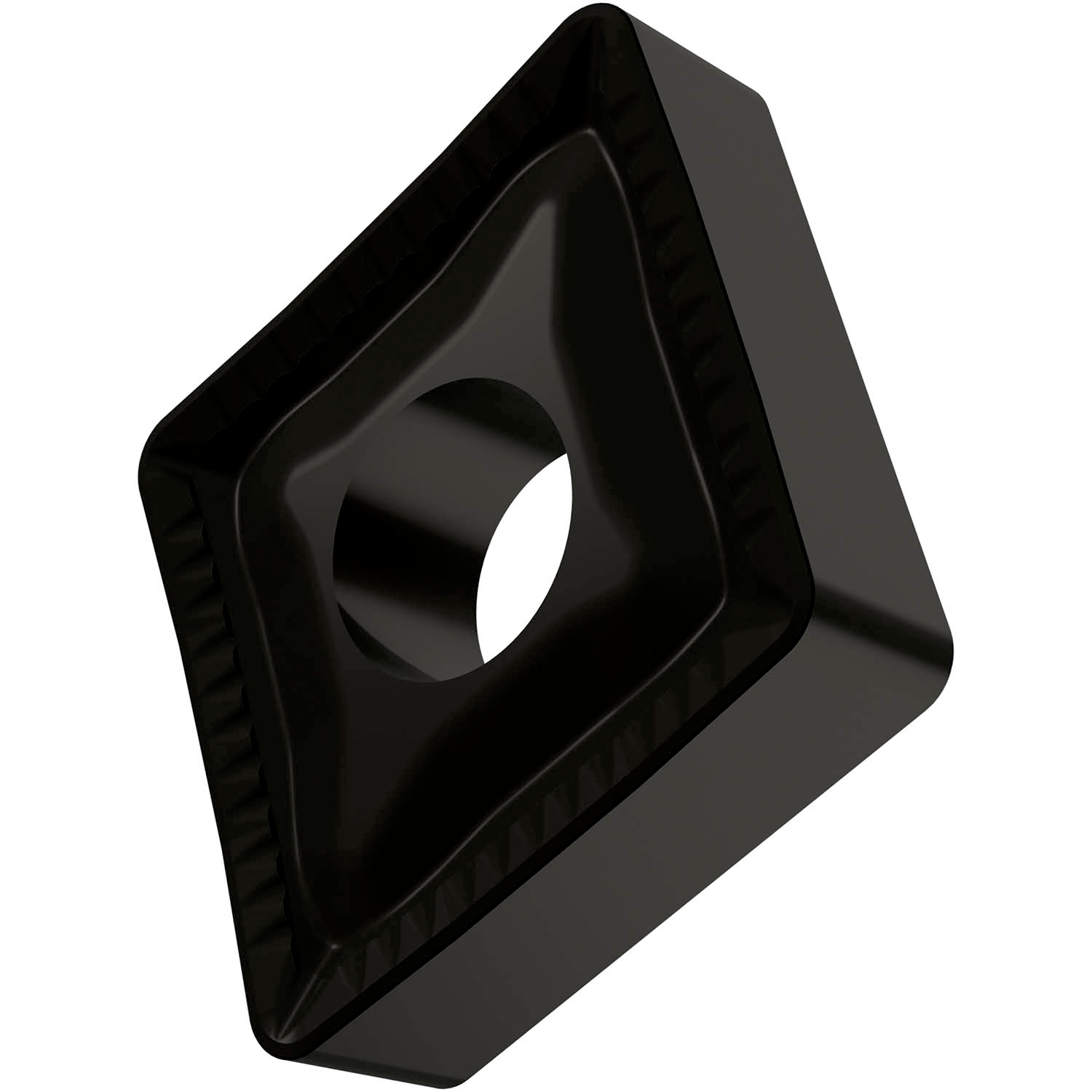

PRAMET CNMM 190624-UH:T9020 Focus Products

Description: Value
EAN number: 3603604144926
Product number (SAP): 80035748
Ordering code ANSI: CNMM 646-UH:T9020
Gross weight – grams: 25.245
Inscribed circle diameter – millimeter (IC): 19.05 mm
Fixing hole diameter – millimeter (D1): 7.94 mm
Cutting edge length – millimeter (L): 19.3 mm
Insert thickness – millimeter (S): 6.35 mm
Grade: T9020
Corner radius – millimeter (RE): 2.4 mm
Insert Clearance Code and Angle: N 0°
Insert Design: CNMM
Insert Type: M
Chipbreaker manufacturer's designation (CBMD): UH
Insert shape code (SC): C – rhombic 80° included angle
Tool Design: CN
Insert Geometry: Negative
ISO: CNMM190624-UH:T9020
