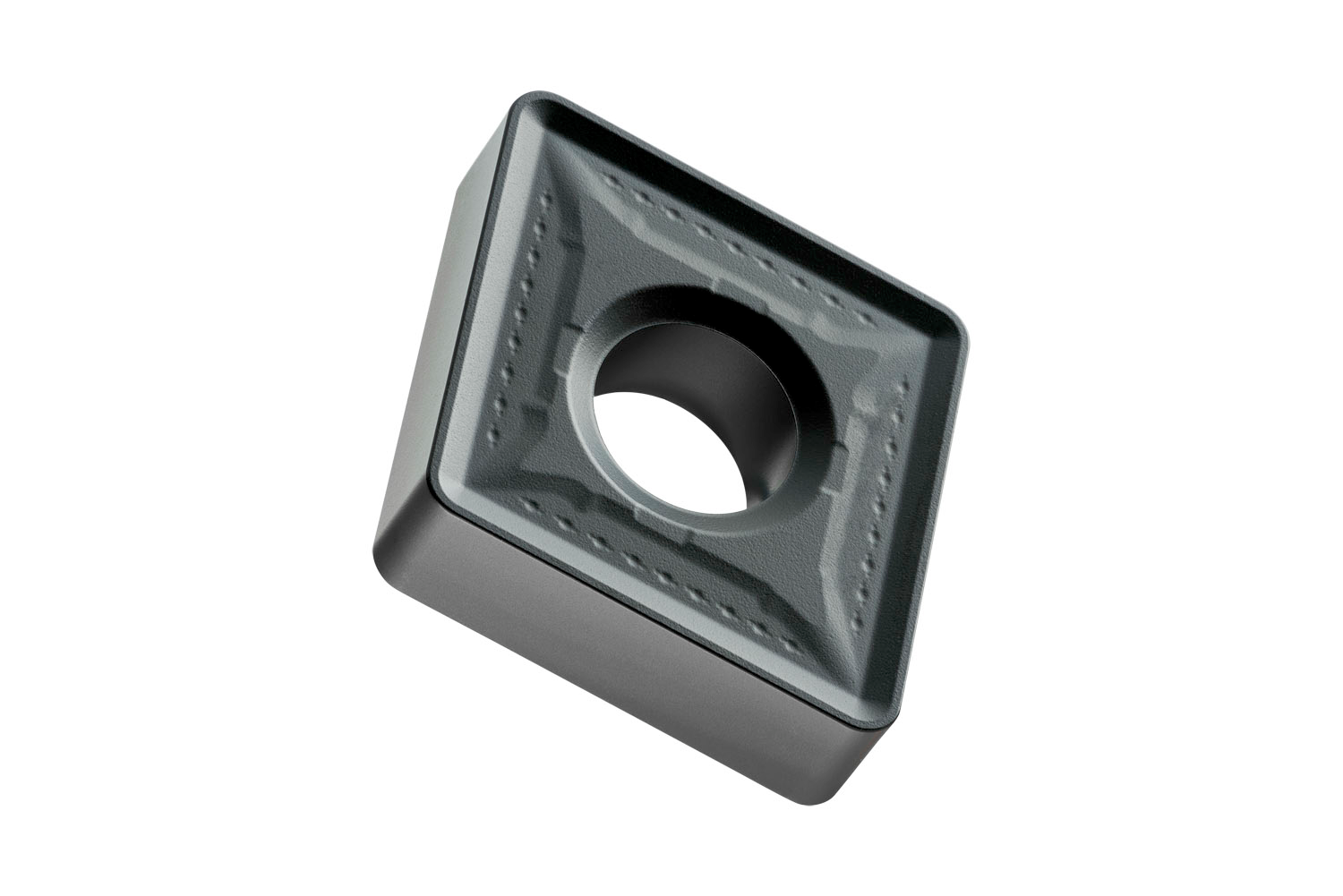

PRAMET CNMM 250924-HR2:T9335 Turning inserts negative

Description: Value
EAN number: 3603603099043
Product number (SAP): 80026931
Ordering code ANSI: CNMM 866-HR2:T9335
Gross weight – grams: 72.206
Inscribed circle diameter – millimeter (IC): 25.4 mm
Fixing hole diameter – millimeter (D1): 9.12 mm
Cutting edge length – millimeter (L): 25.8 mm
Insert thickness – millimeter (S): 9.525 mm
Grade: T9335
Corner radius – millimeter (RE): 2.4 mm
Insert Clearance Code and Angle: N 0°
Insert Design: CNMM
Insert size: 25
Insert Thickness: 09
Insert Type: M
Chipbreaker manufacturer's designation (CBMD): HR2
Insert shape code (SC): C – rhombic 80° included angle
Tool Design: CN
Insert Geometry: Negative
ISO: CNMM250924-HR2:T9335
