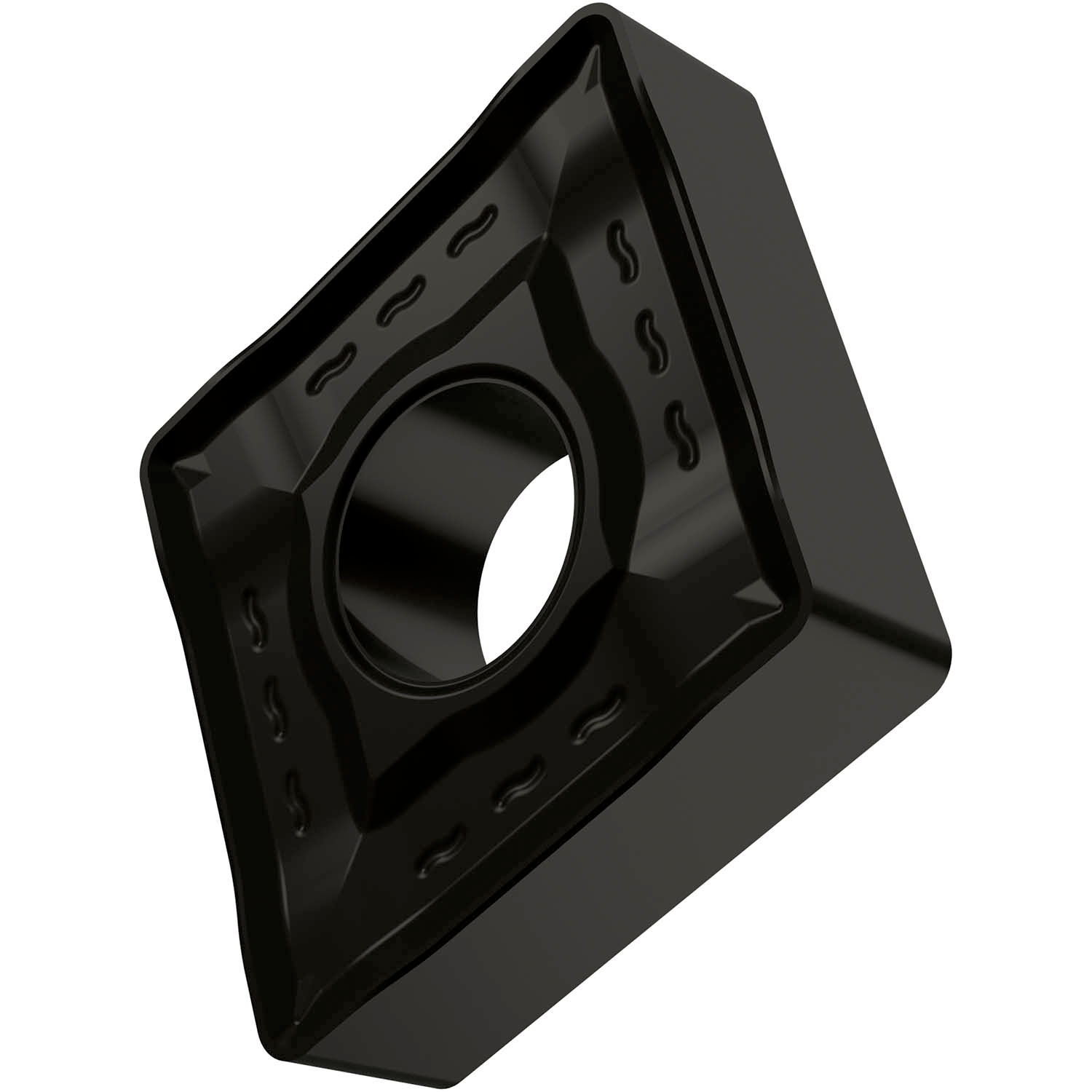

PRAMET CNMM 250924E-NR2:T9325 Turning inserts negative

Description

Double-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 25.4mm, 9.52mm thick, 2.4mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker NR2 with rounded cutting edges, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges P15 -P35 and M10 -M30, for medium to extra heavy machining of steels and stainless-steels

Additional information

Weight	0.0952 kg
barcode
Additional Information	Description: Value EAN number: 3603602898517 Product number (SAP): 80016619 Ordering code ANSI: CNMM 866-NR2:T9325 Gross weight – grams: 78.08 Inscribed circle diameter – millimeter (IC): 25.4 mm Fixing hole diameter – millimeter (D1): 9.12 mm Cutting edge length – millimeter (L): 25.8 mm Insert thickness – millimeter (S): 9.525 mm Grade: T9325 Corner radius – millimeter (RE): 2.4 mm Insert Clearance Code and Angle: N 0° Insert Design: CNMM Insert size: 25 Insert Thickness: 09 Insert Type: M Chipbreaker manufacturer's designation (CBMD): NR2 Insert shape code (SC): C – rhombic 80° included angle Tool Design: CN Insert Geometry: Negative ISO: CNMM250924E-NR2:T9325
