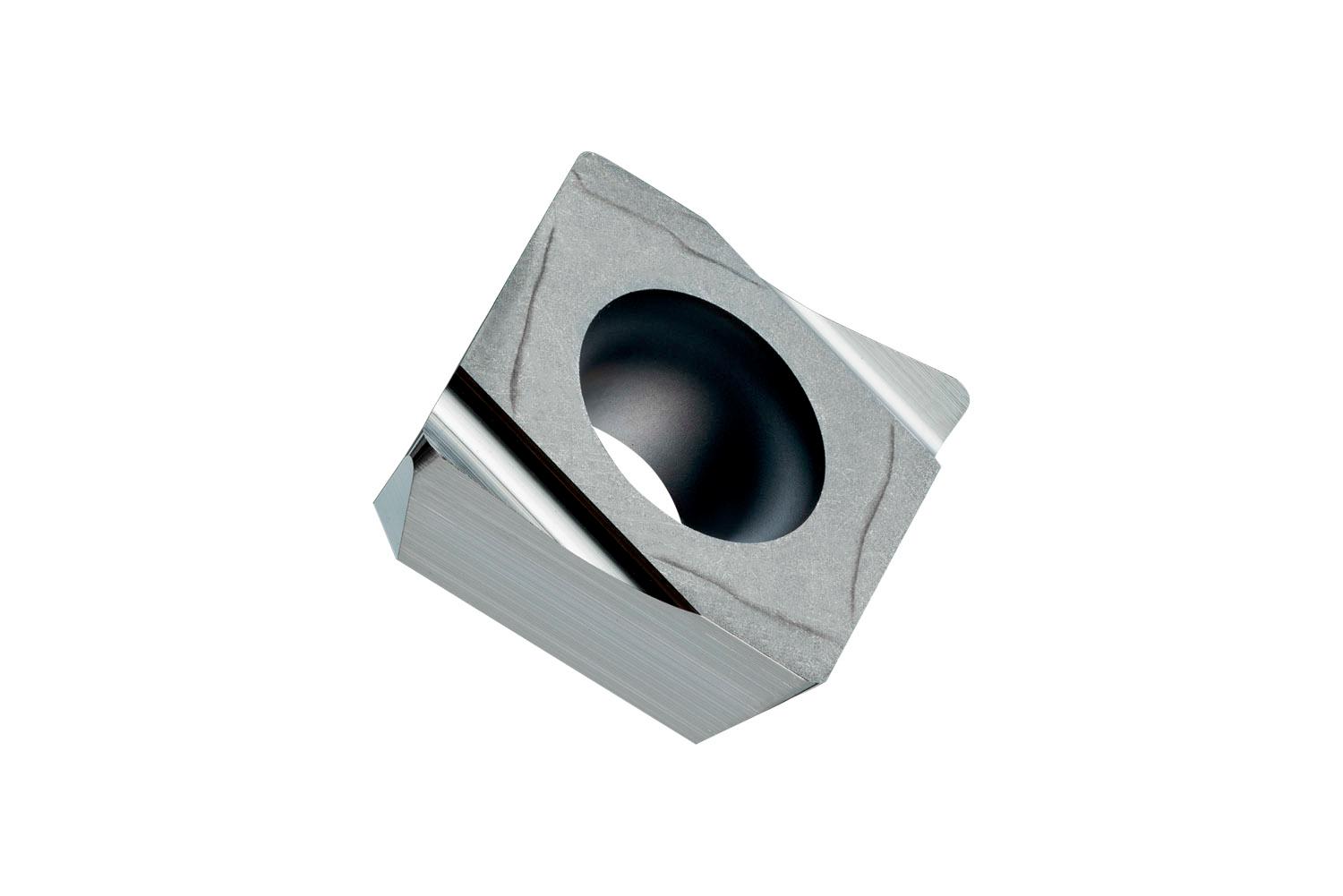

PRAMET CPGX 080304FR-JQ:TT010 Turning inserts positive

Description: Value
EAN number: 3603603129160
Product number (SAP): 80028981
Ordering code ANSI: CPGX 2.521FR-JQ:TT010
Gross weight – grams: 0.959
Inscribed circle diameter – millimeter (IC): 7.94 mm
Fixing hole diameter – millimeter (D1): 3.4 mm
Cutting edge length – millimeter (L): 8.1 mm
Insert thickness – millimeter (S): 3.18 mm
Grade: TT010
Corner radius – millimeter (RE): 0.4 mm
Insert Clearance Code and Angle: P 11°
Insert Design: CPGX
Insert size: 08
Insert Thickness: 03
Insert Type: X
Chipbreaker manufacturer's designation (CBMD): JQ
Insert shape code (SC): C – rhombic 80° included angle
Tool Design: CP
Insert Geometry: Positive
ISO: CPGX080304FR-JQ:TT010
