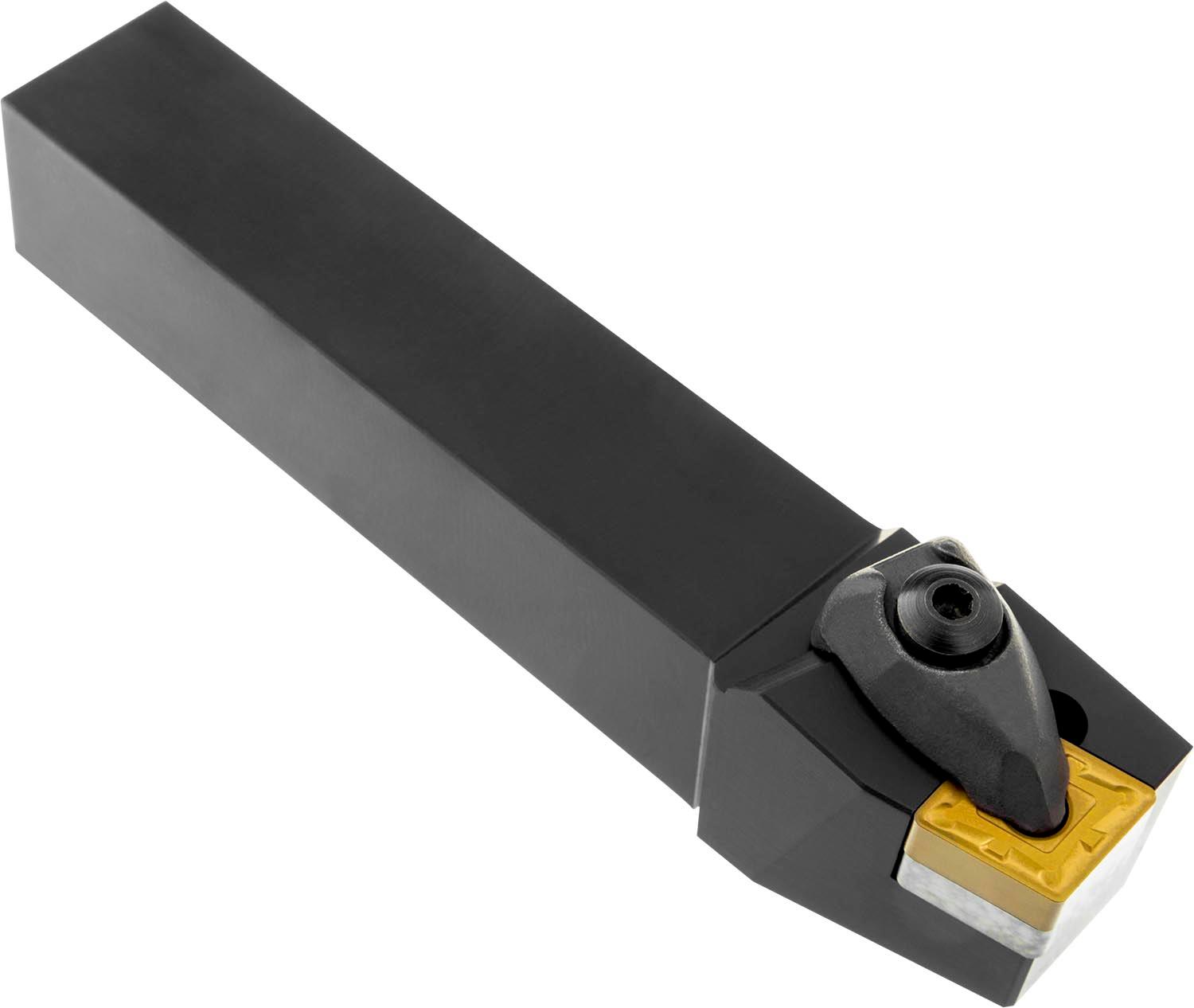

PRAMET DCBNL 2525 M 16 Turning holders external

Product Code: DCBNL 2525 M 16

$176.75$160.68 Ex. GST

Product Code: DCBNL 2525 M 16 SKU DCBNL 2525 M 16 Categories , ,
PRAMET DCBNL 2525 M 16 Turning holders external

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Double clamp turning tool for holding a 80° rhombus negative insert with an inscribed circle diameter of 15.575mm, 6.35mm thick (ISO designation CN.. 1606.. ), left hand 75° side cutting with straight shank, 25mm tool height x 25mm width x 150mm long for chamfering, taper turning and longitudinal turning without shoulder

Additional information

Weight 0.1716 kg
barcode
Additional Information

Description: Value
EAN number: 3603603105041
Product number (SAP): 86026931
Ordering code ANSI: DCBNL 2525 M 16
Gross weight – grams: 791
Shank height – millimeter (H): 25 mm
Shank width – millimeter (B): 25 mm
Functional height – millimeter (HF): 25 mm
Functional width – millimeter (WF): 22 mm
Functional length – millimeter (LF): 150 mm
Head length – millimeter (LH): 41.5 mm
Inclination angle (LAMS): -6
Orthogonal rake angle (GAMO): -6
Net weight – grams: 791
Insert size: 16
ISO: DCBNL2525M16

Brand

PRAMET
