PRAMET DCBNR 3225 P 12 Turning holders external

Product Code: DCBNR 3225 P 12

$194.88$177.16 Ex. GST

Product Code: DCBNR 3225 P 12 SKU DCBNR 3225 P 12 Categories , ,
PRAMET DCBNR 3225 P 12 Turning holders external

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

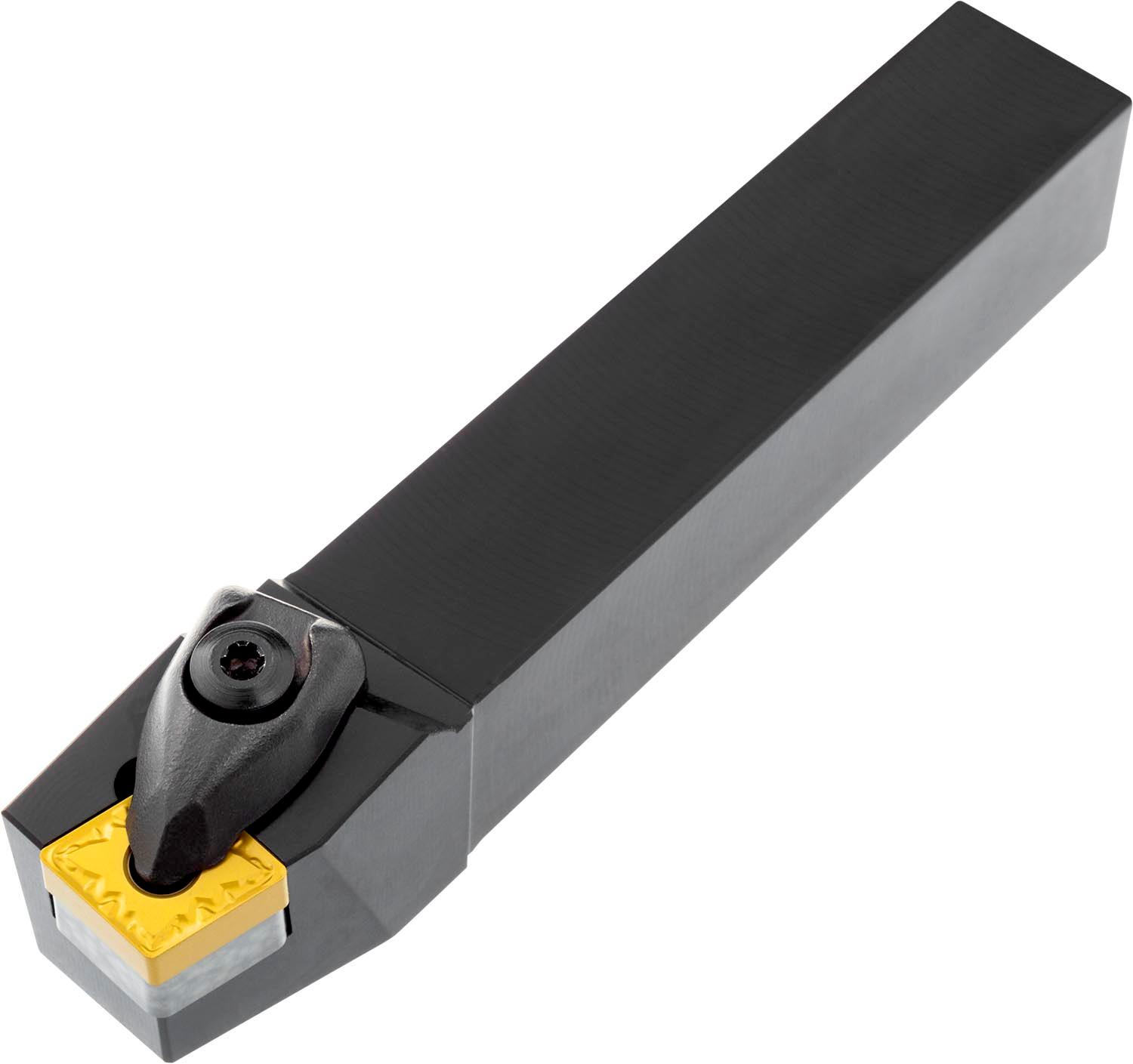

Double clamp turning tool for holding a 80° rhombus negative insert with an inscribed circle diameter of 12.7mm, 4.76mm thick (ISO designation CN.. 1204.. ), right hand 75° side cutting with straight shank, 32mm tool height x 25mm width x 170mm long for chamfering, taper turning and longitudinal turning without shoulder

Additional information

Weight 0.1892 kg
barcode
Additional Information

Description: Value
EAN number: 3603603105126
Product number (SAP): 86026938
Ordering code ANSI: DCBNR 3225 P 12
Gross weight – grams: 1088.5
Shank height – millimeter (H): 32 mm
Shank width – millimeter (B): 25 mm
Functional height – millimeter (HF): 32 mm
Functional width – millimeter (WF): 22 mm
Functional length – millimeter (LF): 170 mm
Head length – millimeter (LH): 34.6 mm
Inclination angle (LAMS): -6
Orthogonal rake angle (GAMO): -6
Net weight – grams: 1088
Insert size: 12
ISO: DCBNR3225P12

Brand

PRAMET
