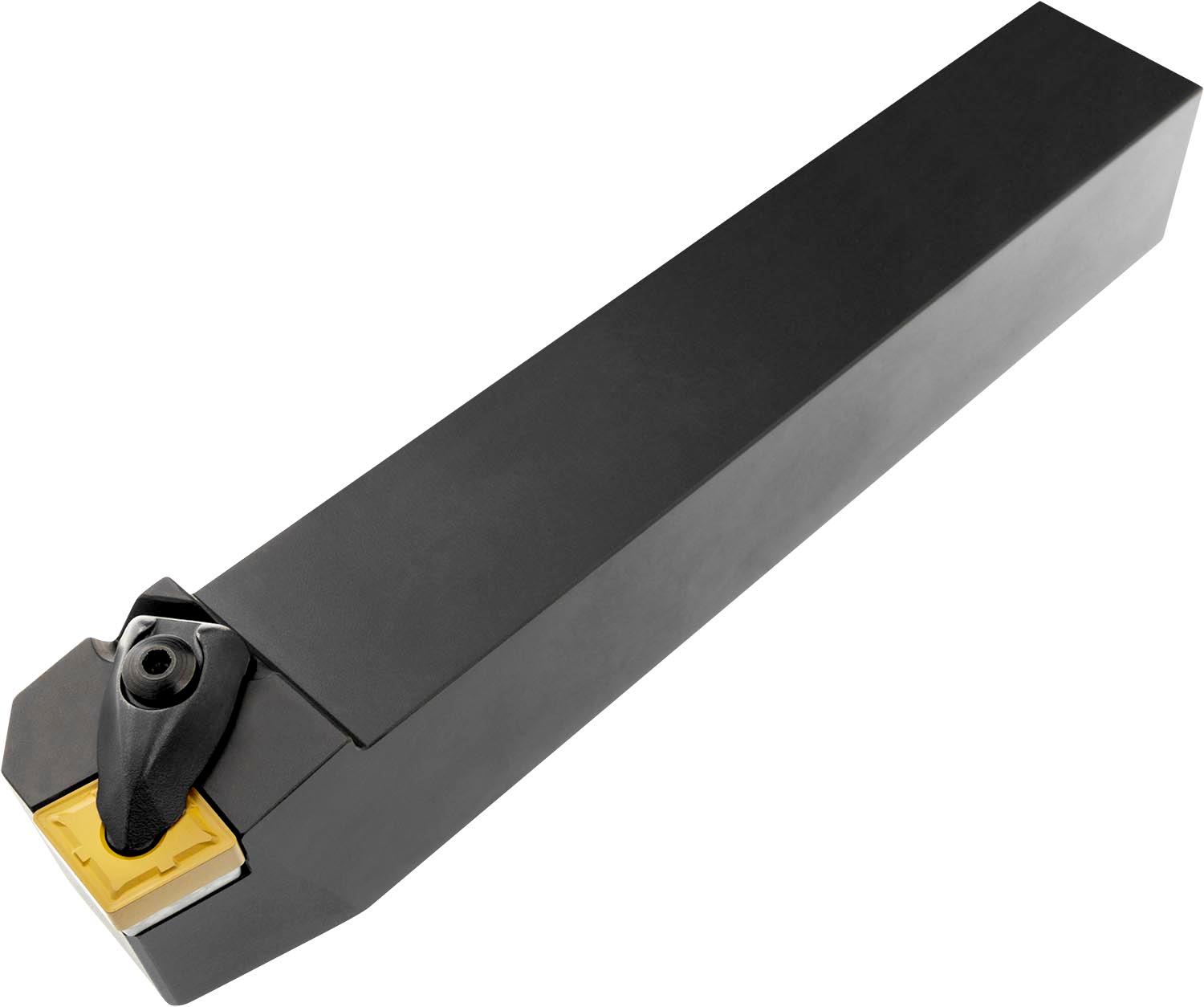

PRAMET DCBNR 3232 P 19 Turning holders external

Product Code: DCBNR 3232 P 19

$237.93$216.30 Ex. GST

Product Code: DCBNR 3232 P 19 SKU DCBNR 3232 P 19 Categories , ,
PRAMET DCBNR 3232 P 19 Turning holders external

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Double clamp turning tool for holding a 80° rhombus negative insert with an inscribed circle diameter of 19.05mm, 6.35mm thick (ISO designation CN.. 1906.. ), right hand 75° side cutting with straight shank, 32mm tool height x 32mm width x 170mm long for chamfering, taper turning and longitudinal turning without shoulder

Additional information

Weight 0.231 kg
barcode
Additional Information

Description: Value
EAN number: 3603603105140
Product number (SAP): 86026940
Ordering code ANSI: DCBNR 3232 P 19
Gross weight – grams: 1392.4
Shank height – millimeter (H): 32 mm
Shank width – millimeter (B): 32 mm
Functional height – millimeter (HF): 32 mm
Functional width – millimeter (WF): 27 mm
Functional length – millimeter (LF): 170 mm
Head length – millimeter (LH): 46.1 mm
Inclination angle (LAMS): -6
Orthogonal rake angle (GAMO): -6
Net weight – grams: 1388
Insert size: 19
ISO: DCBNR3232P19

Brand

PRAMET
