PRAMET DCGT 070201E-SF3:T6310 Turning inserts positive

Product Code: DCGT 070201E-SF3:T6310

$24.48$22.25 Ex. GST

Product Code: DCGT 070201E-SF3:T6310 SKU DCGT 070201E-SF3:T6310 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

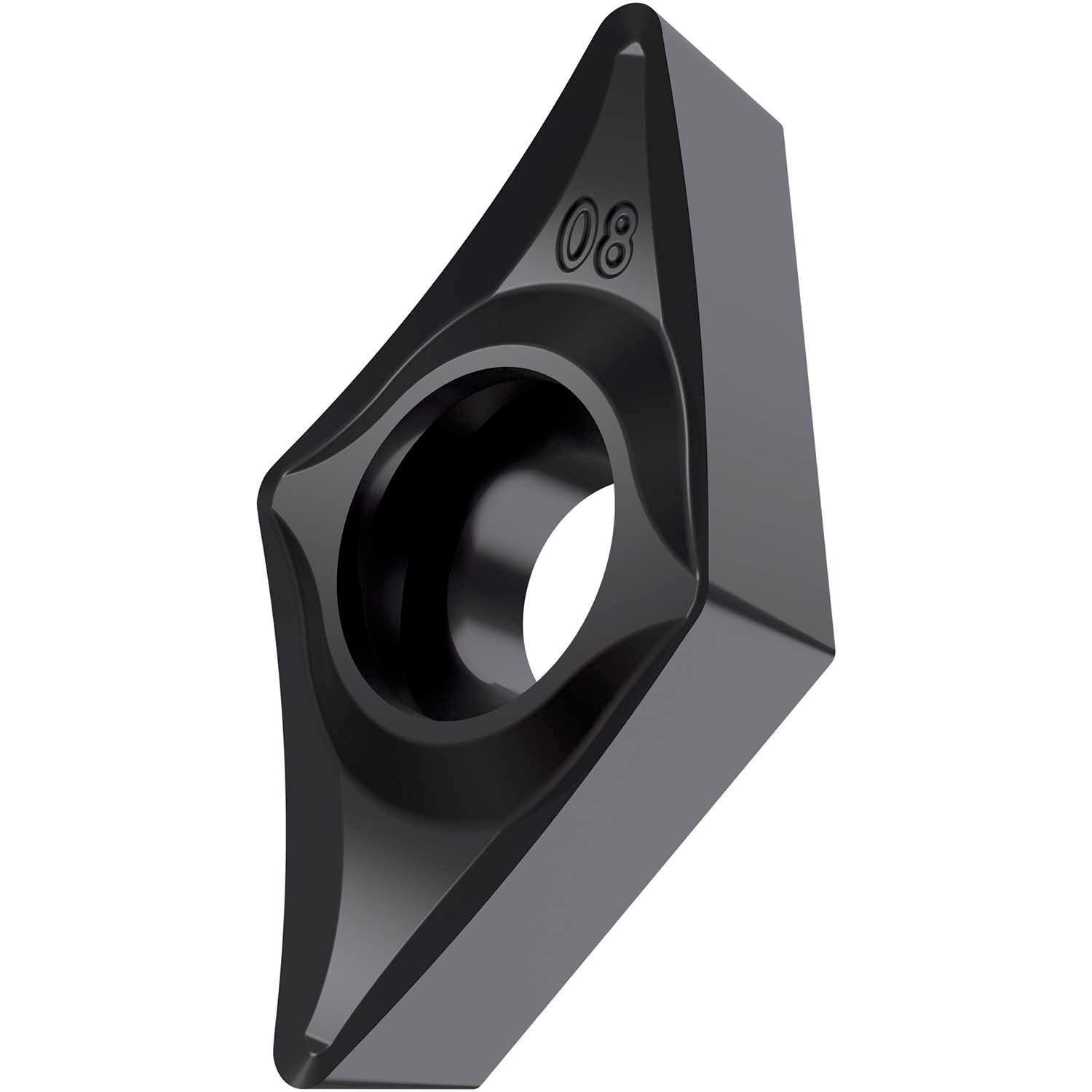

Single-sided positive turning insert, 55° rhomboid with 7° clearance, inscribed circle diameter of 6.35mm, 2.38mm thick, 0.1mm nose radius, indexing accuracy according to ISO-tolerance class-G, chip-breaker SF3 with rounded cutting edges, in grade T6310, a PVD coated extra fine grained WC-Co carbide within ISO ranges M01 -M15/N05 -N20 and S01 -S15, for fine to medium machining of stainless-steels, non-ferrous metals and super-alloys

Additional information

Weight 0.0238 kg
barcode
Additional Information

Description: Value
EAN number: 3603603519053
Product number (SAP): 80031132
Ordering code ANSI: DCGT 21.50.2-SF3:T6310
Gross weight – grams: 1.233
Inscribed circle diameter – millimeter (IC): 6.35 mm
Fixing hole diameter – millimeter (D1): 2.8 mm
Cutting edge length – millimeter (L): 7.8 mm
Insert thickness – millimeter (S): 2.58 mm
Grade: T6310
Corner radius – millimeter (RE): 0.1 mm
Insert Clearance Code and Angle: C 7°
Insert Design: DCGT
Insert size: 07
Insert Thickness: 02
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): SF3
Insert shape code (SC): D – rhombic 55° included angle
Tool Design: DC
Insert Geometry: Positive
ISO: DCGT070201E-SF3:T6310
