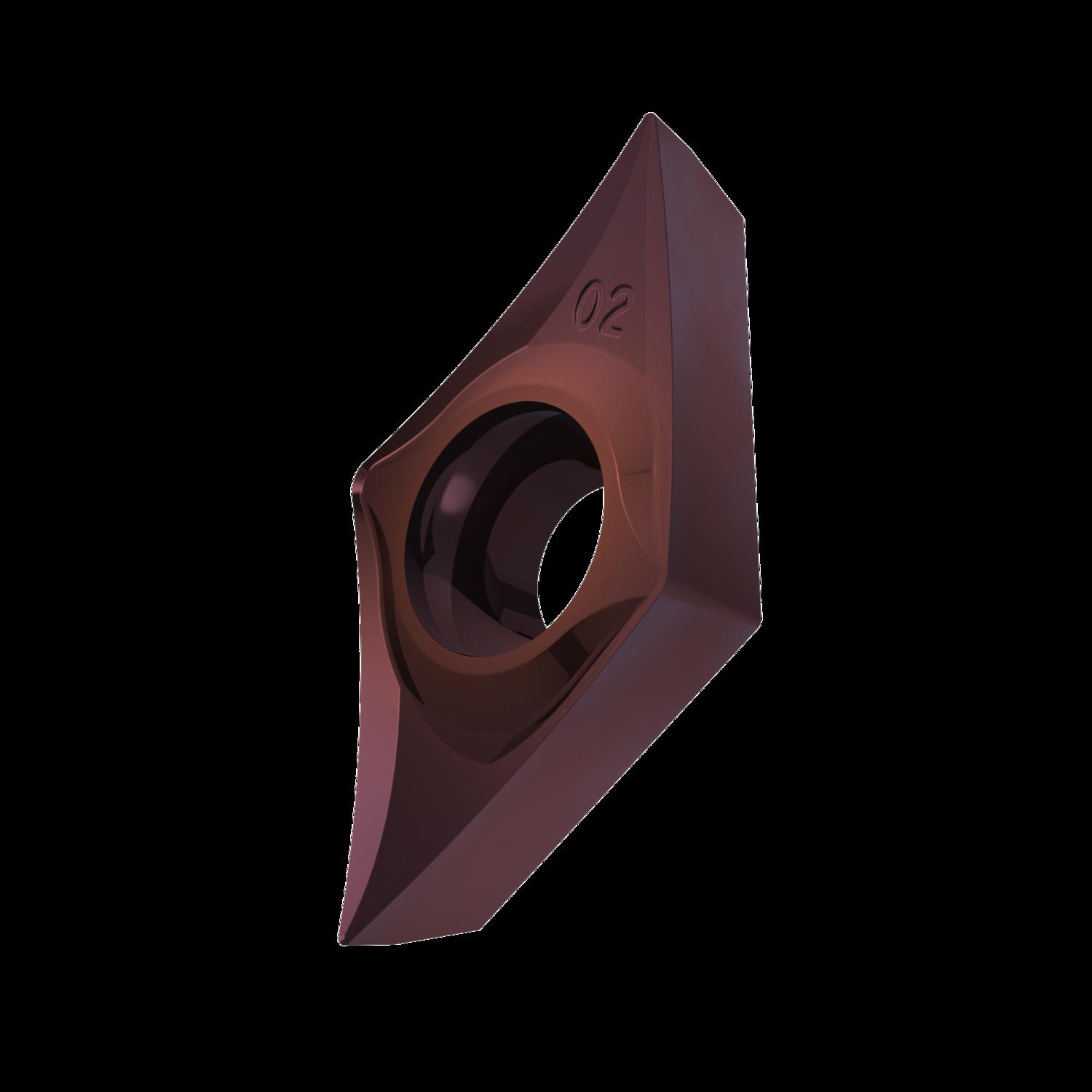

PRAMET DCGT 11T302E-SF3:T8415 Turning inserts positive

Description: Value
EAN number: 3603604269476
Product number (SAP): 80036388
Ordering code ANSI: DCGT 32.50.5-SF3:T8415
Gross weight – grams: 5.7
Inscribed circle diameter – millimeter (IC): 9.525 mm
Fixing hole diameter – millimeter (D1): 4.4 mm
Cutting edge length – millimeter (L): 11.6 mm
Insert thickness – millimeter (S): 4.22 mm
Grade: T8415
Corner radius – millimeter (RE): 0.2 mm
Insert Clearance Code and Angle: C 7°
Insert Design: DCGT
Insert size: 11
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): SF3
Insert shape code (SC): D – rhombic 55° included angle
Tool Design: DC
Insert Geometry: Positive
ISO: DCGT11T302E-SF3:T8415
