PRAMET DCGT 11T302F-AL:T0315

Description

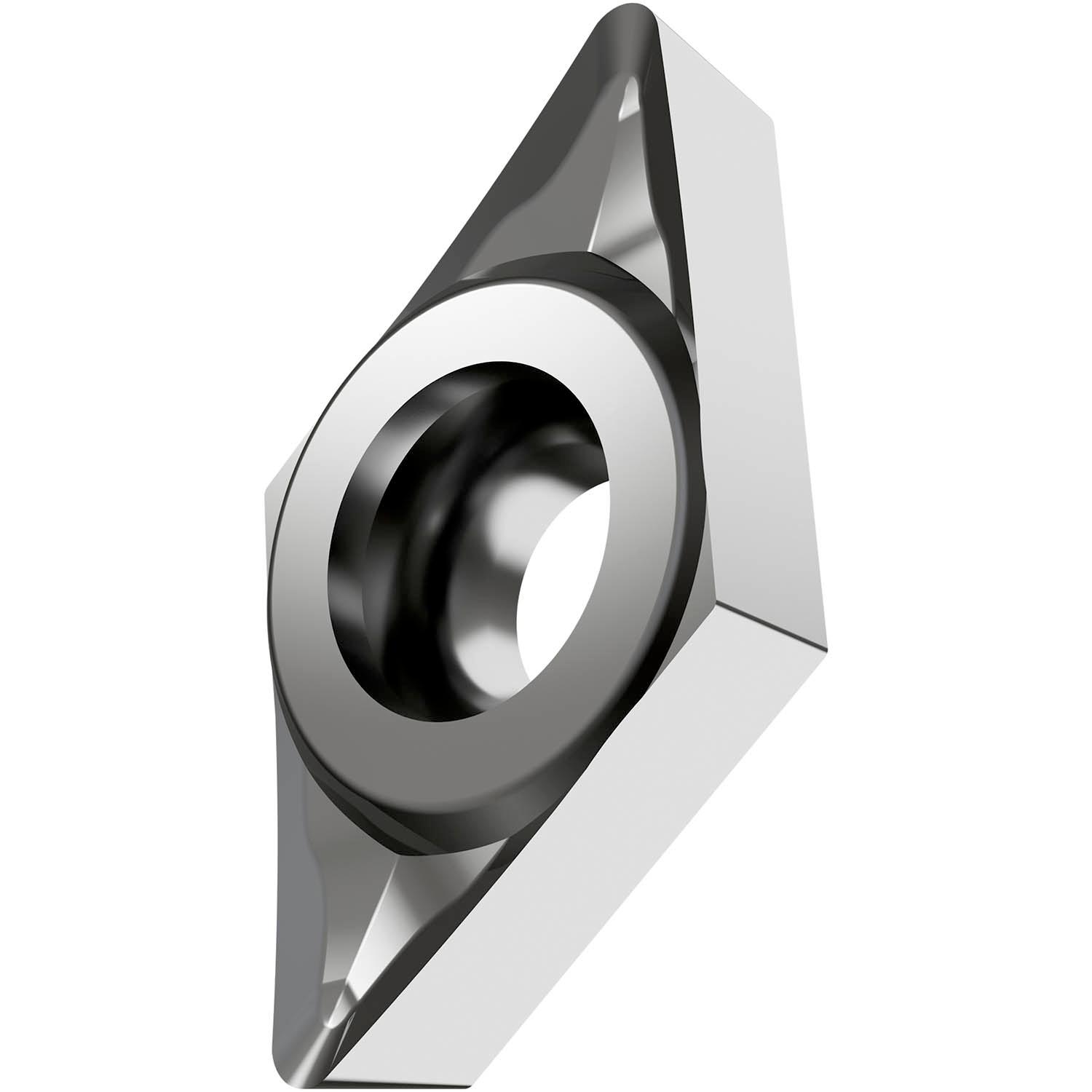

Single-sided positive turning insert, 55° rhomboid with 7° clearance, inscribed circle diameter of 9.525mm, 3.97mm thick, 0.2mm nose radius, indexing accuracy according to ISO-tolerance class-G, chip-breaker AL with sharp cutting edges, in grade T0315, a PVD coated fine grained WC-Co carbide within ISO range N05 -N20, for fine to heavy machining of non-ferrous metals

Additional information

Weight	0.0321 kg
barcode
Additional Information	Description: Value EAN number: 3603602915139 Product number (SAP): 80023492 Ordering code ANSI: DCGT 32.50.5F-AL:T0315 Gross weight – grams: 4.948 Inscribed circle diameter – millimeter (IC): 9.525 mm Fixing hole diameter – millimeter (D1): 4.4 mm Cutting edge length – millimeter (L): 11.6 mm Insert thickness – millimeter (S): 3.97 mm Grade: T0315 Corner radius – millimeter (RE): 0.2 mm Insert Clearance Code and Angle: C 7° Insert Design: DCGT Insert size: 11 Insert Thickness: T3 Insert Type: T Chipbreaker manufacturer's designation (CBMD): AL Insert shape code (SC): D – rhombic 55° included angle Tool Design: DC Insert Geometry: Positive ISO: DCGT11T302F-AL:T0315
