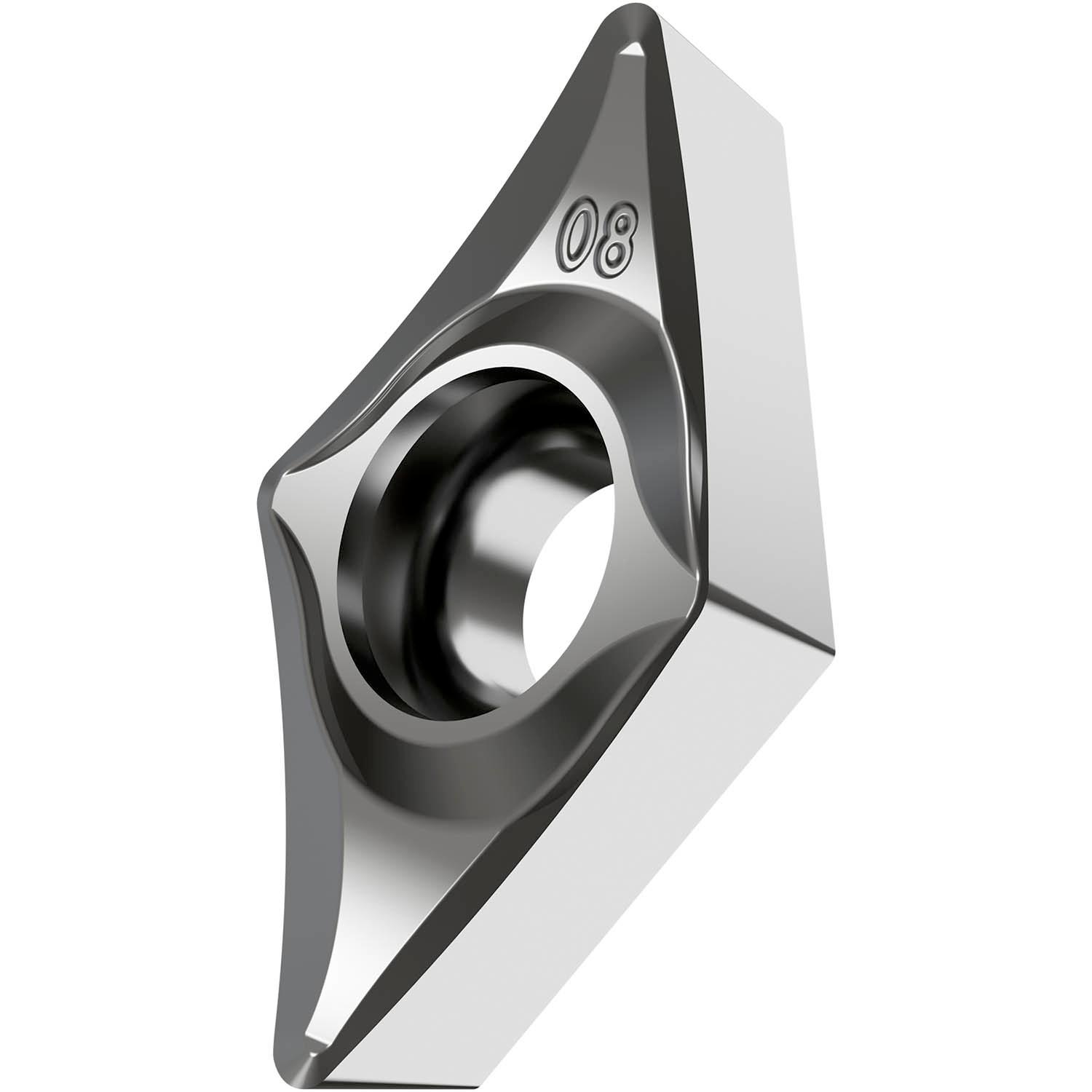

PRAMET DCGT 11T304E-SF3:H07 Turning inserts positive

Product Code: DCGT 11T304E-SF3:H07

$23.34$21.22 Ex. GST

Product Code: DCGT 11T304E-SF3:H07 SKU DCGT 11T304E-SF3:H07 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Single-sided positive turning insert, 55° rhomboid with 7° clearance, inscribed circle diameter of 9.525mm, 3.97mm thick, 0.4mm nose radius, indexing accuracy according to ISO-tolerance class-G, chip-breaker SF3 with rounded cutting edges, in grade H07, an uncoated WC-Co carbide within ISO ranges N10 -N30 and S01 -S20, for fine to medium machining of non-ferrous metals and super-alloys

Additional information

Weight 0.0227 kg
barcode
Additional Information

Description: Value
EAN number: 3603603171602
Product number (SAP): 80028399
Ordering code ANSI: DCGT 32.51-SF3:H07
Gross weight – grams: 4.523
Inscribed circle diameter – millimeter (IC): 9.525 mm
Fixing hole diameter – millimeter (D1): 4.4 mm
Cutting edge length – millimeter (L): 11.6 mm
Insert thickness – millimeter (S): 4.22 mm
Grade: H07
Corner radius – millimeter (RE): 0.4 mm
Insert Clearance Code and Angle: C 7°
Insert Design: DCGT
Insert size: 11
Insert Thickness: T3
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): SF3
Insert shape code (SC): D – rhombic 55° included angle
Tool Design: DC
Insert Geometry: Positive
ISO: DCGT11T304E-SF3:H07

Brand

PRAMET
