PRAMET DCGT 11T308E-NF1:T7325 Turning inserts positive

Product Code: DCGT 11T308E-NF1:T7325

$31.04$28.22 Ex. GST

Product Code: DCGT 11T308E-NF1:T7325 SKU DCGT 11T308E-NF1:T7325 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

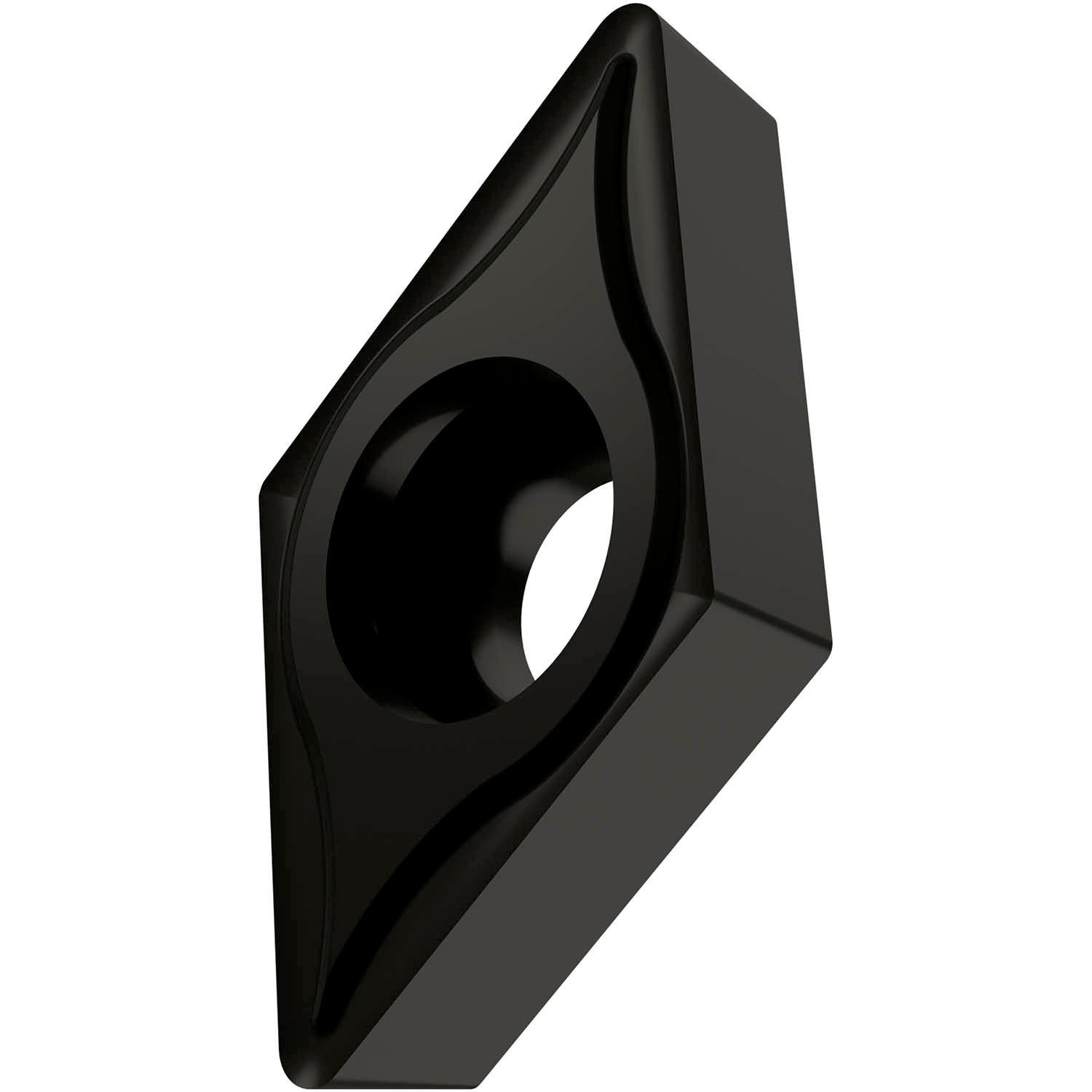

Single-sided positive turning insert, 55° rhomboid with 7° clearance, inscribed circle diameter of 9.525mm, 3.97mm thick, 0.8mm nose radius, indexing accuracy according to ISO-tolerance class-G, chip-breaker NF1 with rounded cutting edges, in grade T7325, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges M10 -M25 and S10 -S25, for fine to medium machining of stainless-steels and super-alloys

Additional information

Weight 0.0301 kg
barcode
Additional Information

Description: Value
EAN number: 3603603170186
Product number (SAP): 80028263
Ordering code ANSI: DCGT 32.52-NF1:T7325
Gross weight – grams: 4.374
Inscribed circle diameter – millimeter (IC): 9.525 mm
Fixing hole diameter – millimeter (D1): 4.4 mm
Cutting edge length – millimeter (L): 11.6 mm
Insert thickness – millimeter (S): 3.97 mm
Grade: T7325
Corner radius – millimeter (RE): 0.8 mm
Insert Clearance Code and Angle: C 7°
Insert Design: DCGT
Insert size: 11
Insert Thickness: T3
Insert Type: T
Chipbreaker manufacturer's designation (CBMD): NF1
Insert shape code (SC): D – rhombic 55° included angle
Tool Design: DC
Insert Geometry: Positive
ISO: DCGT11T308E-NF1:T7325

Brand

PRAMET
